Versions

Liqmax II 120
ELC-LMR120S-BS
120mm radiator
Liqmax II 240
ELC-LMR240-BS
240mm radiator

Product Introduction

The Enermax Liqmax II is the advanced version of the successful Liqmax liquid coolers line. The engineers from Enermax have improved the performance of the cooler and the operating noise is further reduced (Liqmax II 120 TDP 320W+ and Liqmax II 240 TDP 350W+) . This is mainly due to the optimized double-Batwing blade geometry and the smooth-running pump. With the Adjustable Peak Speed (APS) feature, the speed range of the fans can be selected and limited by an easily accessible switch on the side. There are three modes available: Silent (600-1,200 1 / min), Performance (600-1700 1 / min), and Overclock (600-2200 1 / min). The Liqmax II has been equipped with high-quality polyamide tubes, which, due to their flexibility, grant an easy installation. The liquid cooler is available in 120mm and 240mm radiator formats and has a mounting system for all Intel® and AMD® processors including the current Intel® Haswell™- and Skylake™-generations.

Cooling & Design

  • Maintenance-free Cooling System
    All-in-One liquid CPU cooler with pre-filled coolant offers best usability and maximum cooling performance for powerful PC systems with multi-core CPUs.
  • Shunt-Channel Technology

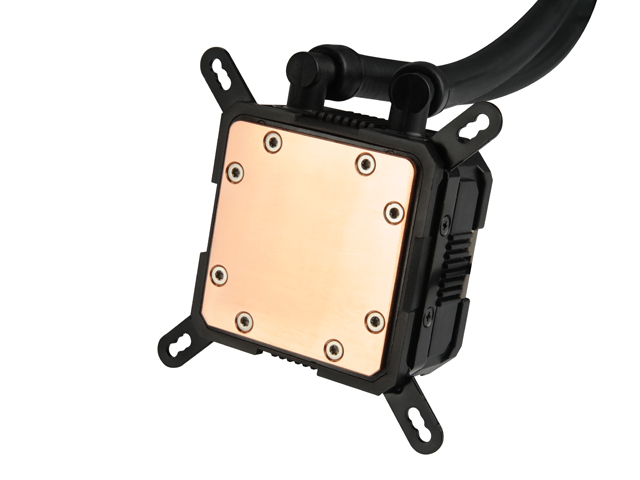

    Patented cold plate design for maximum cooling performance. The shunt inside the micro fin structure minimizes the “Boundary Layer” effect, eliminates hot spots much quicker and ensures a perfect heat dissipation.

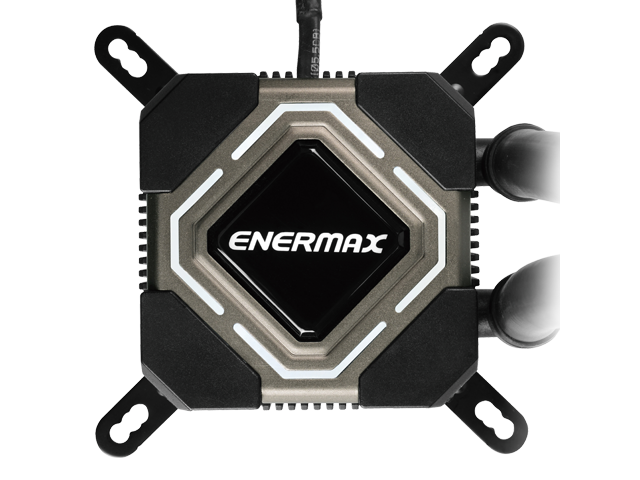

  • Stylish Water Block
    Low operating noise and efficient cooling performance thanks to long-lasting ceramic bearing pump. The white LED logo displays the operating mode.
  • Double-length Radiator*
    Higher heat exchange capacity thanks to double-length 240mm radiator. First choice for systems with overclocked CPU.
    * only ELC-LMR240-BS

Fans

  • Double Batwing Fans
    The new and innovative development of the popular Batwing blade design. Thanks to the advanced shape of the fan blades, the Double Batwing fans achieve an exceptional high air flow rate to enhance the cooling performance while reducing the noise generation.
  • Adjustable Peak Speed Function & Automatic PWM Control
    Easy fan speed customisation according to the system requirements. With a small switch at the frame side, the peak speed can be changed in three steps. The fan therefore offers three various RPM ranges: Silent Mode / Performance Mode / Overclock Mode. Within the selected mode, the fan is controlled automatically via PWM.
  • Effective Fan Decoupling
    The fan is equipped with rubber pads to reduce the vibration and noise generation.

Comfort & Compatibility

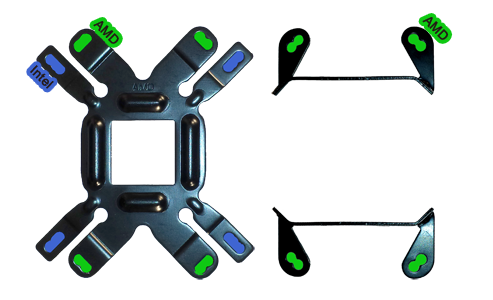

  • Easy & Universal Mounting System
    Quick & user-friendly CPU cooler mounting supports all Intel and AMD CPU: Intel® 775/1150/1151/1155/1156/1366/2011 and AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+.
  • Flexible & Long-lasting Tubes
    High-quality tubes made of Polyamide guarantee a non-permeable and long-lasting operation combined with great flexibility.
  • High Conductive Thermal Grease
    Tube with Dow-Corning® thermal grease (TC-5121) for best thermal conduction between CPU and Water Block.

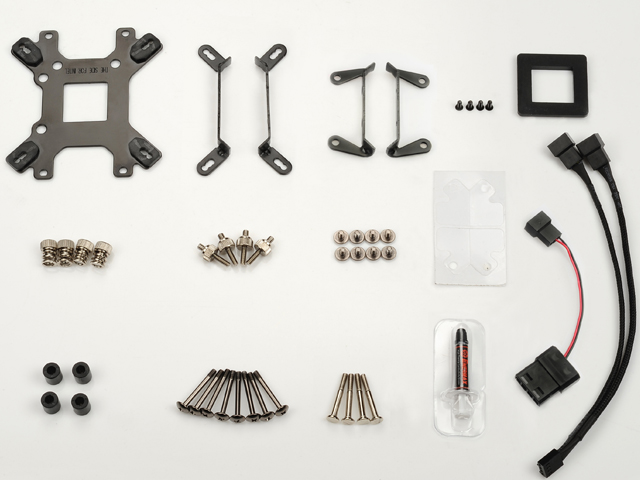

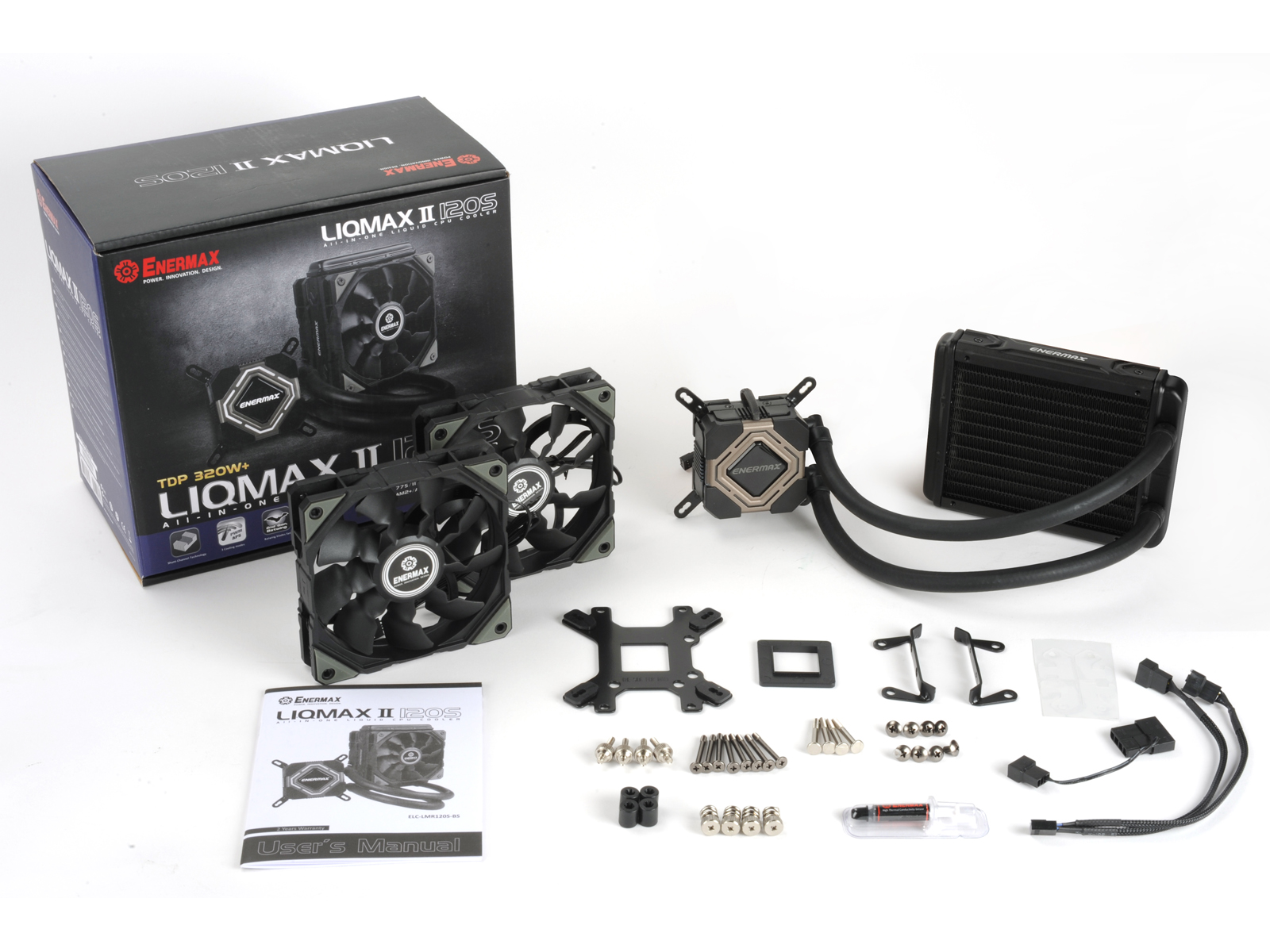

Included in the delivery

  • 1x Liquid Cooler ELC-LMR120S-BS/ELC-LMR240-BS
  • 2x 12cm Double Batwing Fans
  • 1x Universal Backplate for Intel® and AMD® sockets
  • 4x Stand-offs
  • 2x Intel® Bracket
  • 2x AMD® Bracket
  • 4x Stand-off for Intel® LGA 2011 socket
  • 1x Square spacer for Intel® 775 socket
  • 4x Insulating Sheets for AMD® sockets
  • 4x Position Screws
  • 4x Spring Screws
  • 8x Fan Screws
  • 4x/8x Case Screws (depending on the model)
  • 1x Dow-Corning® Thermal Grease (TC-5121)
  • 1x PWM Fan Y-Cable
  • 1x Installation Guide

Specifications

ELC-LMR120S-BS ELC-LMR240-BS
Compatible Sockets
Intel® LGA 775/1150/1151/1155/1156/1366/2011/2011-3*
AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Cold Plate Material
Copper
Weight (without fan) 580g 740g
Thermal Grease Dow Corning® TC-5121
Pump
Bearing Type
Ceramic Bearing
MTBF (hours)
50,000
Motor Speed (RPM)
2,700
Rated Voltage (V) 12
Rated Current (A) 0.3
Connector 3 pin
Radiator
Dimensions (mm)
D 120 x W 154 x H 27
D 120 x W 274 x H 27
Material Aluminium
Tubes
Length (mm)
300
Material Rubber (Polyamide)
Fan
Fan Dimensions (mm) W 120 x H 120 x D 25
Fan Speed (RPM) 500 - 1,200/1,600/2,000
Rated Current (A) -
Rated Voltage (V) 12
Connector 4 pin PWM
Quantity 2x
Mounting Metal Screws
Fan Model BS (Double Batwing)
Air Flow (m3/h) 47.1 - 99.1/128.3/163.1
Air Flow (CFM) 27.7 - 58.3/75.5/96.0
Static Pressure (mm-H2O) 0.4 - 1.3/2.4/3.0
Noise Level (dB(A)) 16 - 23/30/35

* except server mainboards with LGA 2011-3 socket

Dealer Information


ELC-LMR120S-BS
ELC-LMR240-BS
EAN Code
4713157721754 4713157721761
Carton Weight Net
16 15,24
Carton Gross Weight
17,3 16,3
Carton Dimensions
D 510 x W 455 x H 320
D 650 x W 335 x H 325
Unitsper Carton
8 6
