Models

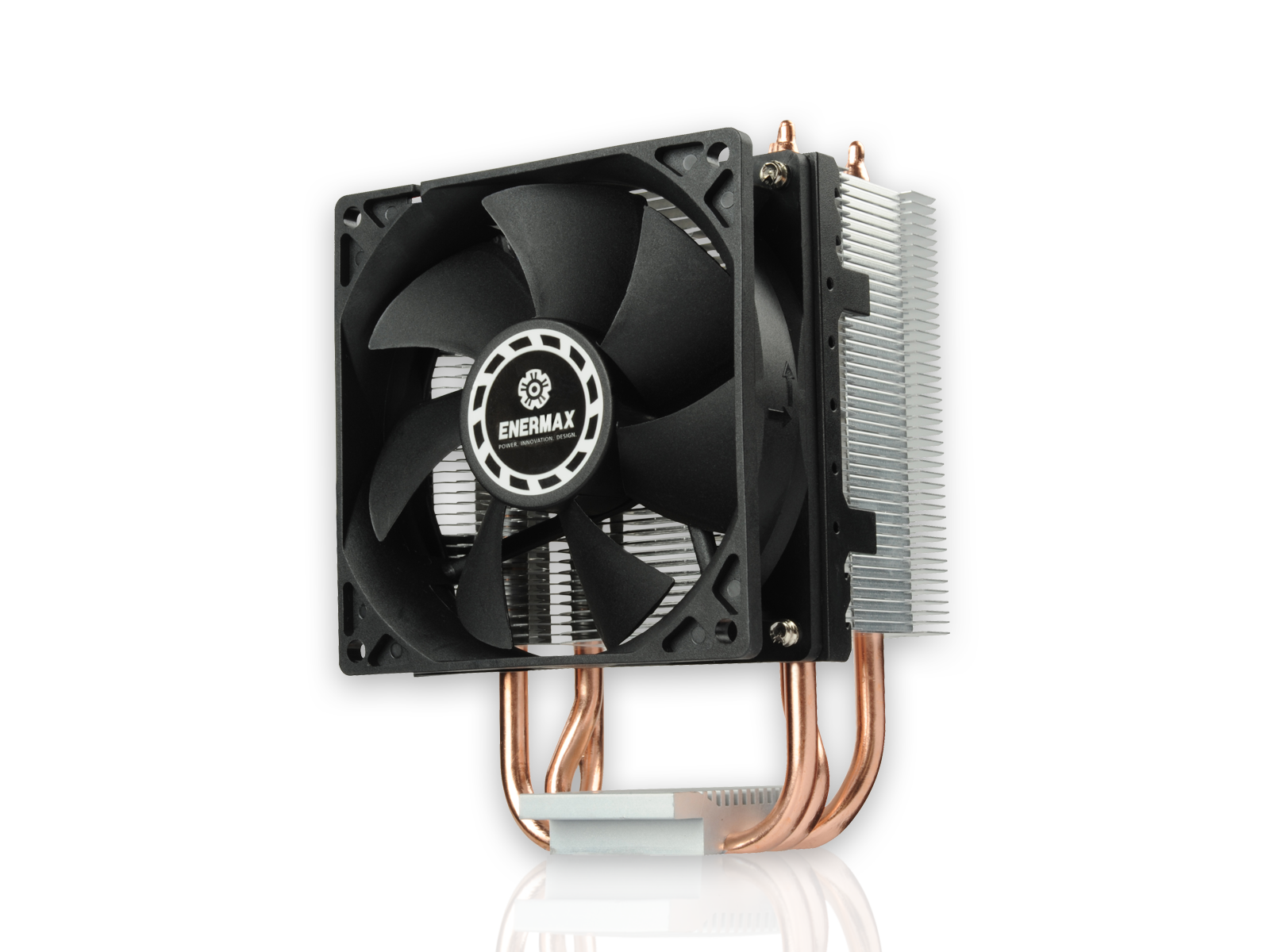

ETS-N30R-HE
with high-efficient 9cm fan &
PWM speed control

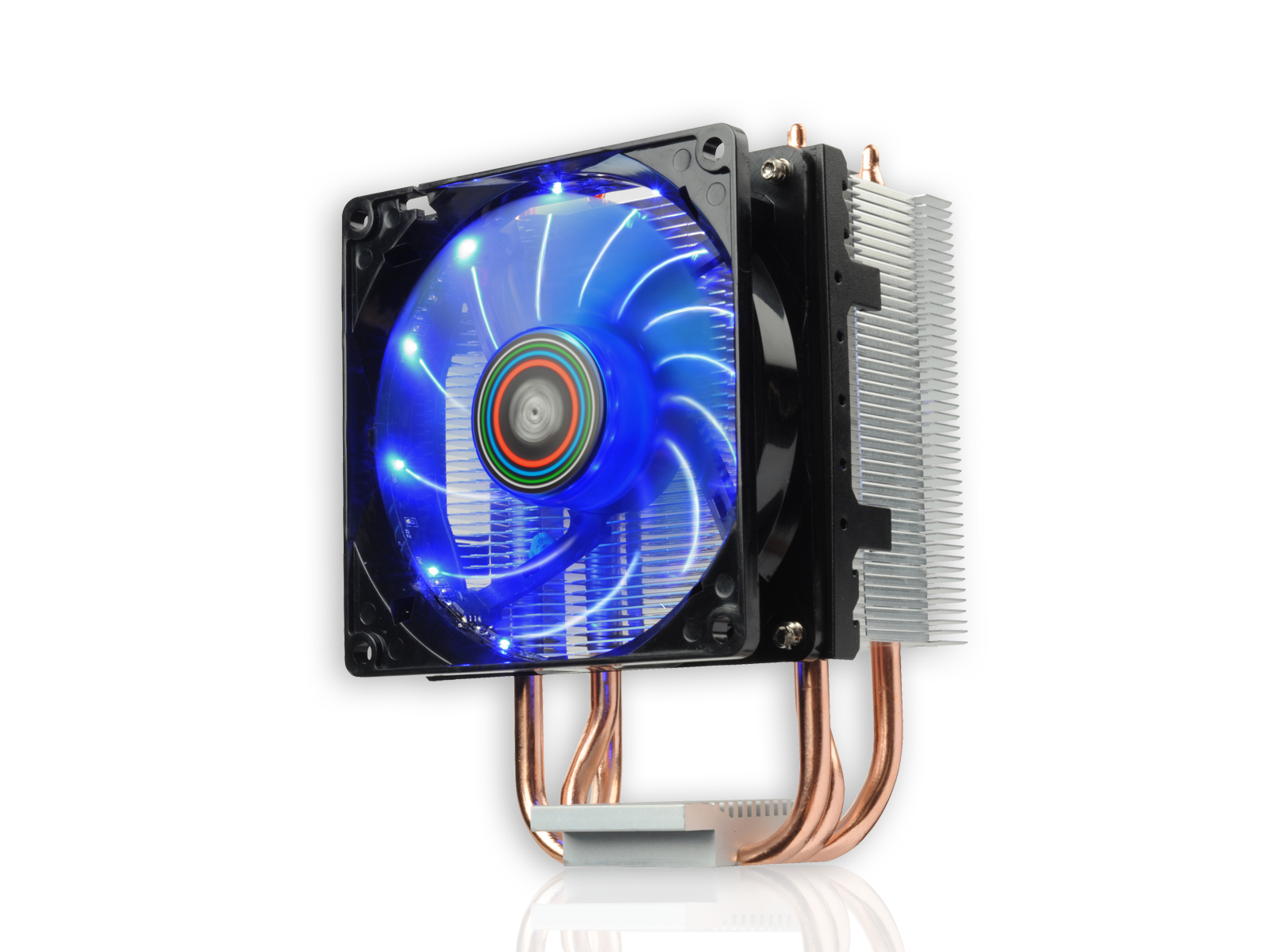

ETS-N30R-TAA
with blue 9cm LED fan &
PWM speed control


EU MARKET LAUNCH: 1st Quarter 2016



Product Introduction

The small ENERMAX ETS-N30-II tower cooler is designed for compact PC systems. It comes with a strong 9cm PWM fan with wide RPM range for best possible adaption to different system requirements. Furthermore, ENERMAX applies the proven air stream techniques Vortex Generator Flow (VGF, patented) and Vacuum Effect Flow (VEF). That way, the ETS-N30II reaches a cooling capacity of up to 150W TDP. Due to the asymmetric heat pipe array and the universal Intel® and AMD® bracket, the small ENERMAX cooler offers best possible RAM compatibility and supports all latest CPU sockets.

Design

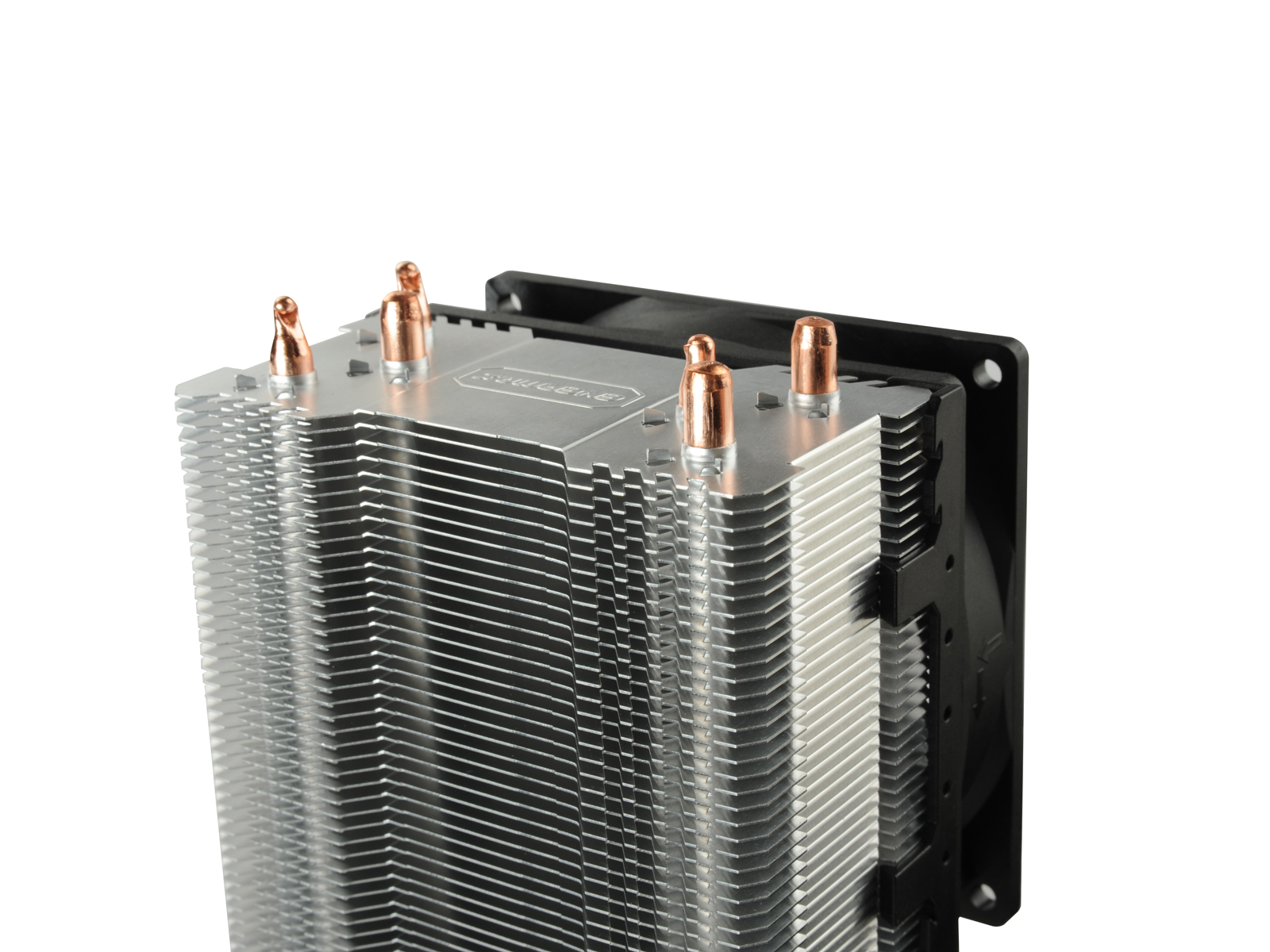

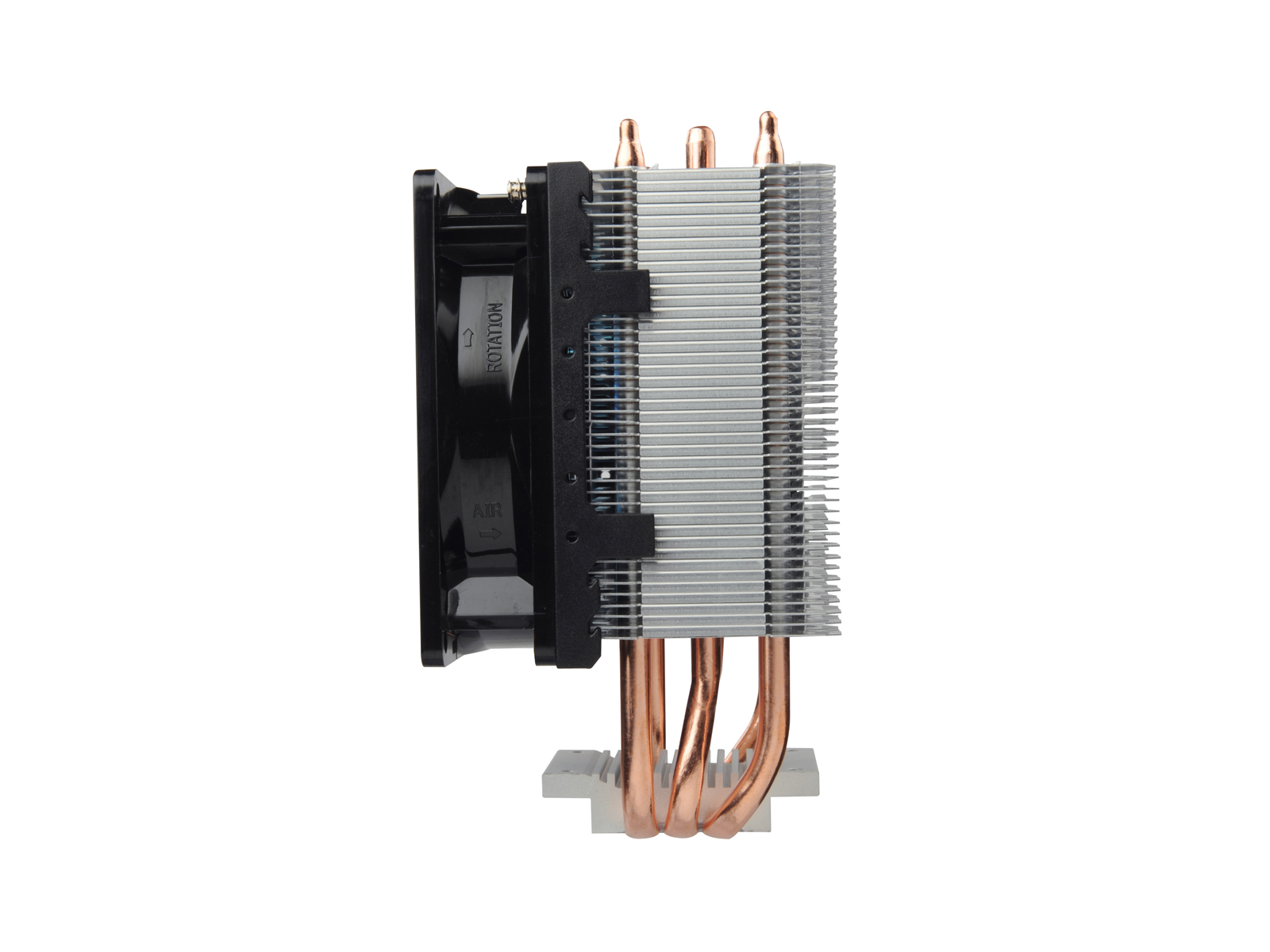

  • Asymmetric Heat Pipe Array
    The heat pipes are arranged in an asymmetric way, so that the cooler does not interfere with RAM modules.

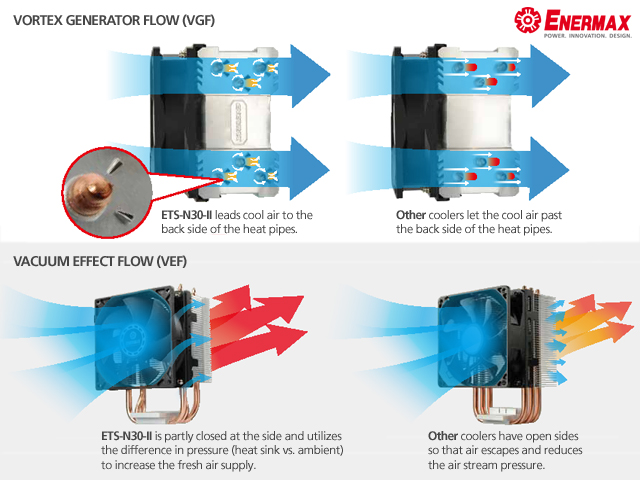

  • Vortex Generator Flow (VGF)
    Small spoilers at the fins lead the air stream close along the heat pipes and cool them more efficiently.
  • Vaccum Effect Flow (VEF)
    Air vents at the side of the heat sink use the difference in pressure to increase the fresh air supply.

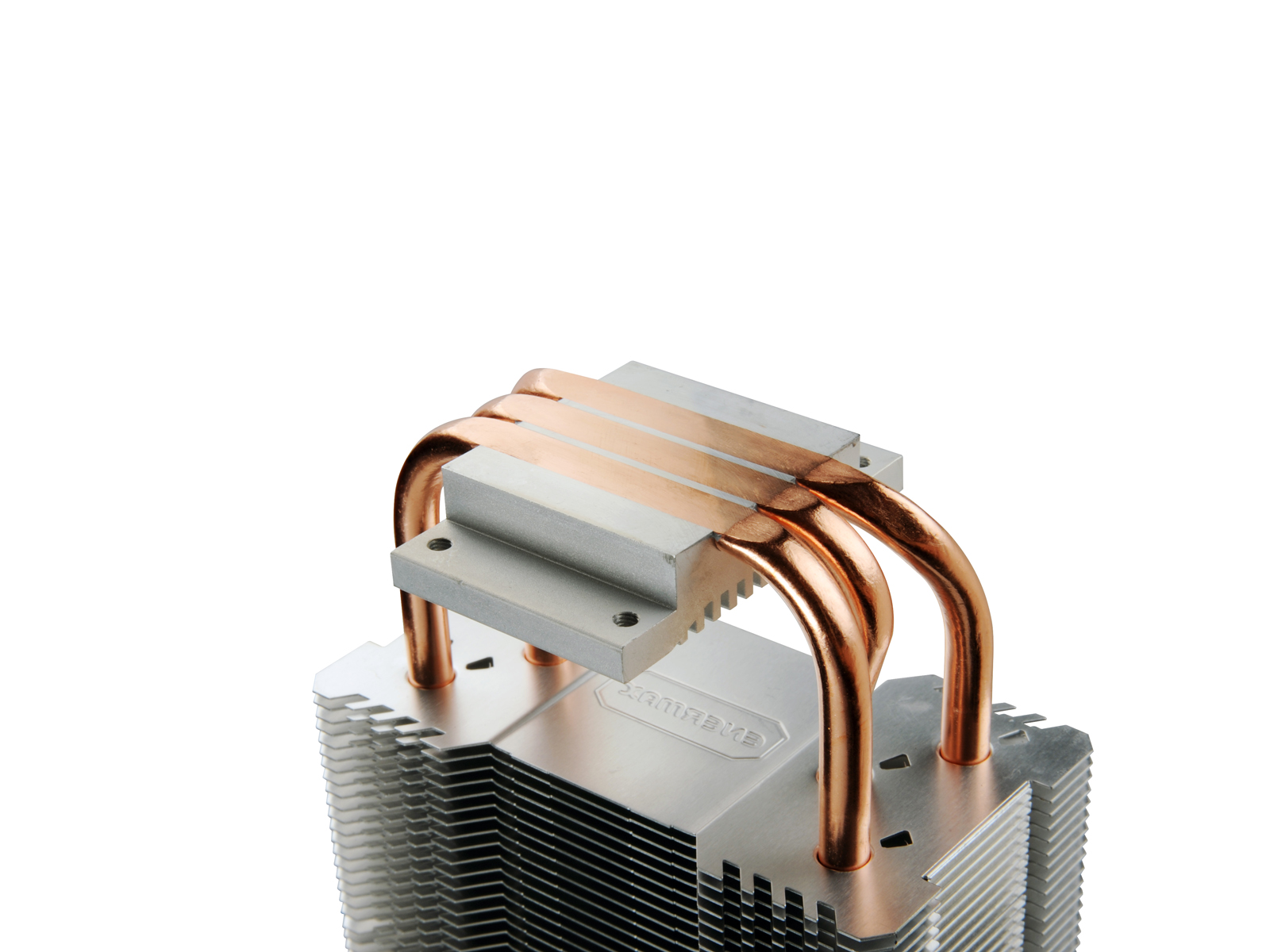

  • Heat Pipe Direct Touch (HDT)
    The heat pipes rest directly on the CPU to dissipate heat more effectively with lower thermal resistance.


Fan


  • 25% Lower Noise (only ETS-N30R-HE)
    Thanks to the included RPM reduction adapter, the cooler can be used in low-noise PC systems with lower fan speed setting.
  • Cool Blue Lightning (only ETS-N30R-TAA)
    Patented circular LED light from ENERMAX with 12 diodes for cool and eye-catching light effects.

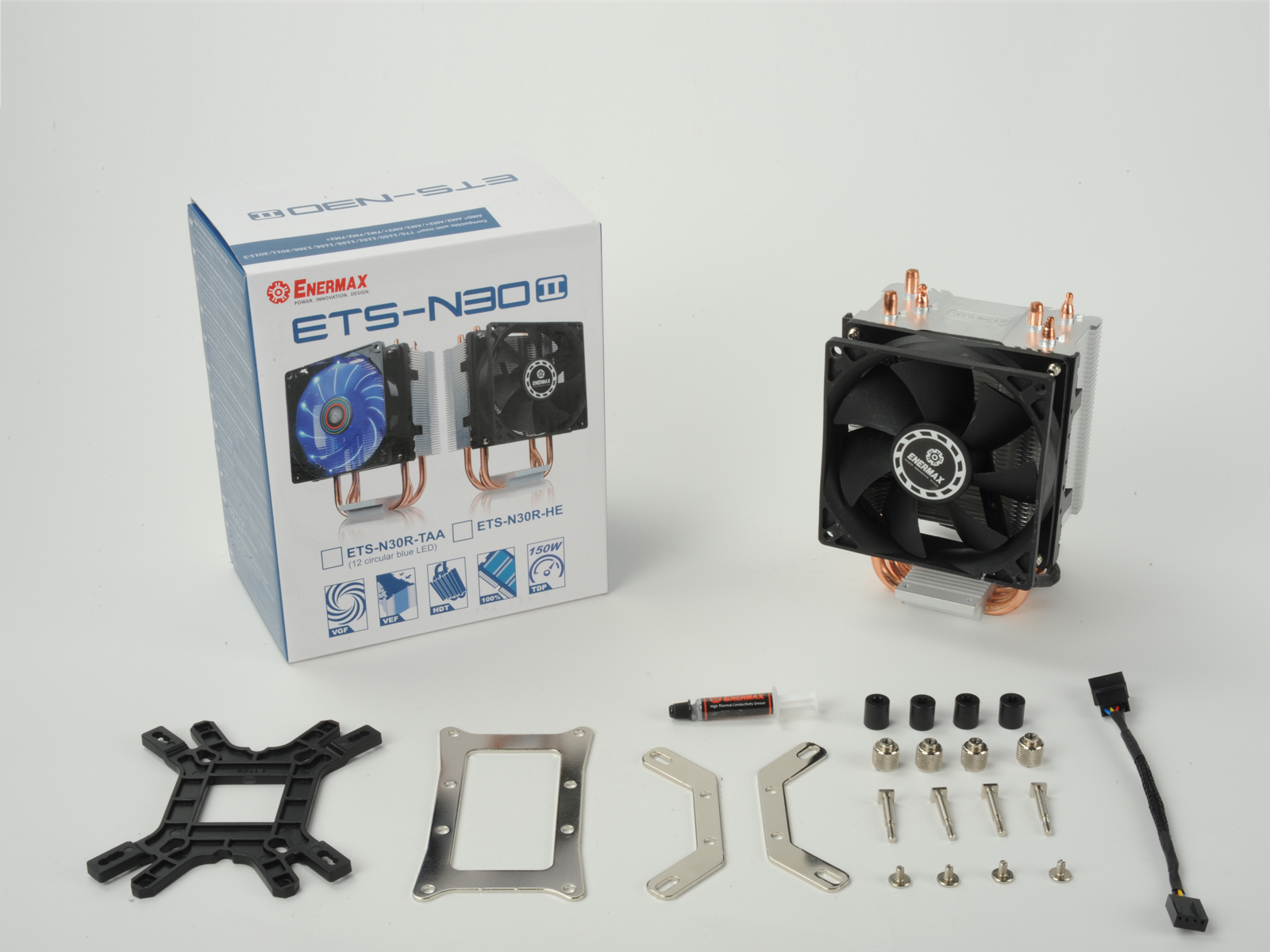

Installation


  • 1-Clip Fan Bracket
    The solid fan bracket simplifies the fan installation at the heat sink.
  • Dow Corning® TC-5121 Thermal Grease
    Quality and highly thermal-conductive thermal grease included.

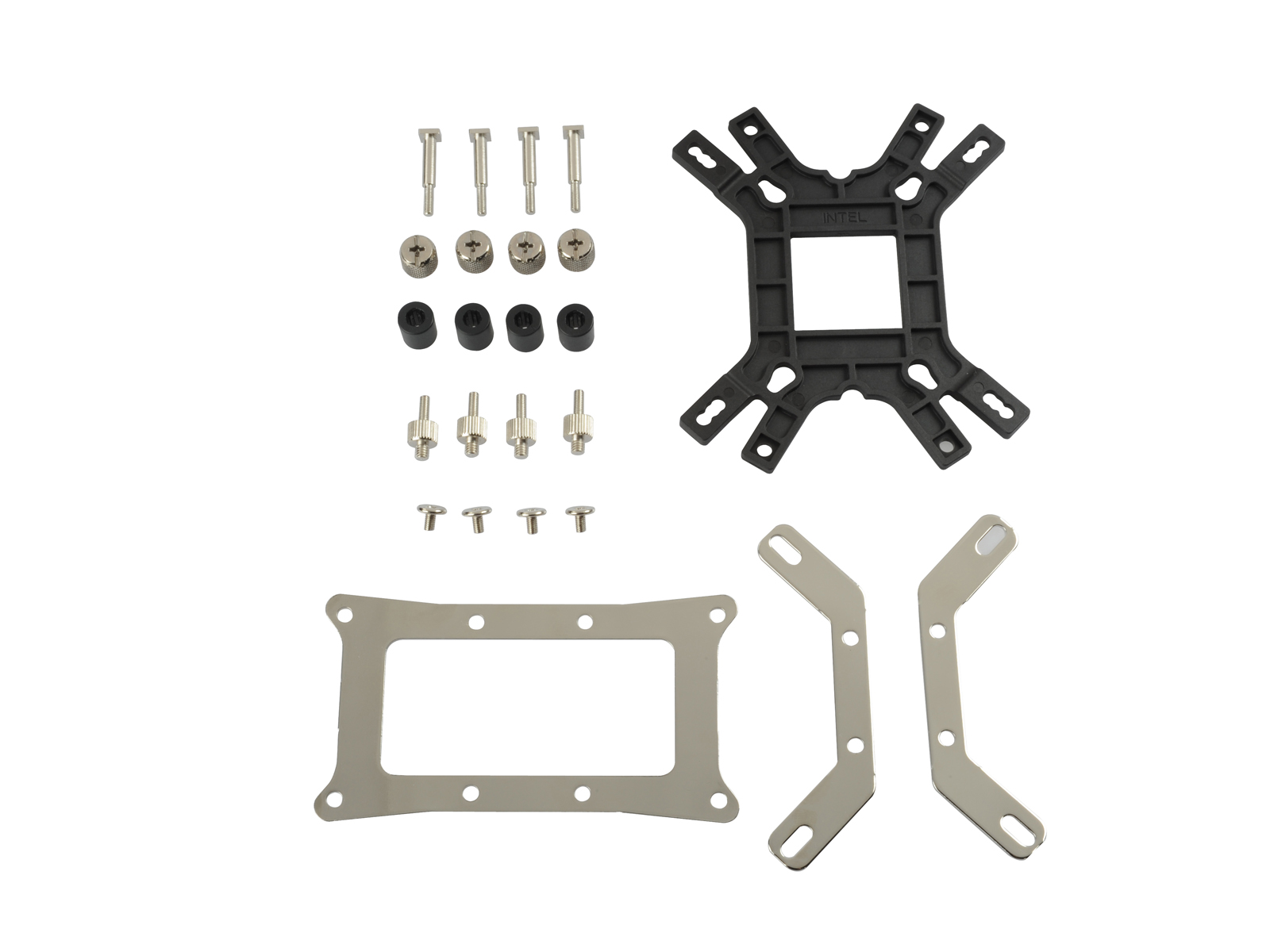

  • Universal Back Plate Design
    User-friendly installation on the latest AMD® and Intel® CPU sockets (incl. Intel® LGA1151).


Specifications

Models ETS-N30R-HE ETS-N30R-TAA
Compatible Sockets
Intel® LGA 775/1150/1151/1155/1156/1366/2011/2011-3
AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Overall Dimensions (mm) L 95 x W 77.5 x H 137.2
Heat Sink Dimensions (mm) L 92 x W 50 x H 137.2
Number / Thickness of Heat Pipes 3x Ø 6mm
Thermal Design Power (TDP) 150W
Weight (without fan) 300g
Material Copper Heat Pipes / Aluminium Fins
Thermal Grease Dow Corning® TC-5121
Fan
Fan Model High-Efficient 9cm Fan Blue 9cm LED Fan
Fan Dimensions (mm) 92 x 92 x 25
Fan Speed (RPM) 800 - 2,800
600 - 1,800 (with RPM adapter)
800 - 2,800
Air Flow (m3/h) 27 - 94.1
15.9 - 52.3 (with RPM adapter)
24.6 - 86.3
Air Flow (CFM) 15.9 - 55.4
9.3 - 30.8 (with RPM adapter)
14.5 – 50.8
Static Pressure (mm-H2O) 0.36 - 4.37
0.18 - 1.7 (with RPM adapter)
0.32 – 3.86
Noise Level (dB(A)) 16 - 28
12 - 20 (with RPM adapter)
16 - 27
Rated Voltage (V) 12
LED no LEDs
Patented circular LED light
with 12 blue diodes
Fan connector 4-pin PWM
Fan Mounting 1-Clip Bracket

Dealer Information


ETS-N30R-HE
ETS-N30R-TAA
EAN Code
4713157722119 4713157722126
Cooler w/o Fan - Net Weight 300g 300g
Product Box - Dimensions
141 x 96 x 169mm 141 x 96 x 169mm
Product Box - Weight
630g 630g
Master Carton - Dimensions
592 x 307 x 373mm 592 x 307 x 373mm
Master Carton - Net Weight 18kg 18kg
Master Carton - Gross Weight 19.2kg 19.2kg
Master Carton - Pieces
24 24
