Versions

Magma Advance 12cm
UCMAA12A
SSC/ 85°C

Information

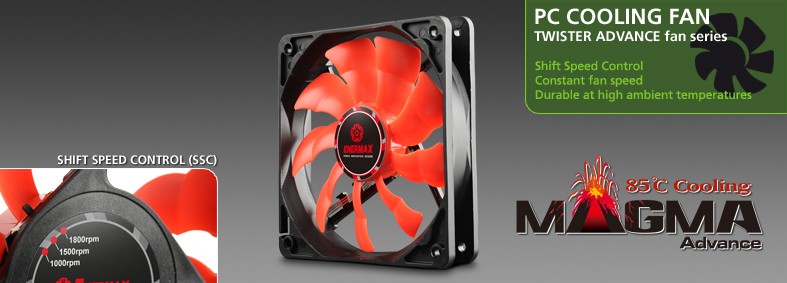

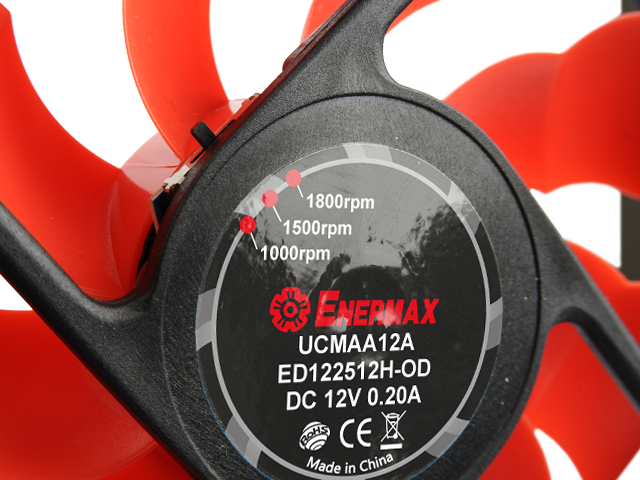

  • Shift Speed Control (SSC)
    Multi-purpose fan for easy customisation according to the system requirements. With a small switch at the back, the peak speed can be changed in three steps: Ultra Silent Mode (1,000 RPM) / Silent Mode (1,500 RPM) / Performance Mode (1,800 RPM).
  • For Extreme Conditions up to 85°C
    High-quality and heat-resistant components allow for min. 100,000 hours cooling performance even at extreme temperatures of up to 85°C.
  • The 2nd Generation of the Patented Twister Bearing
    Smooth and persistently silent operation due to the patented Twister Bearing Technology. The second generation of the bearing guarantees up to 160,000 hours MTBF.
  • Batwing Blades
    Powerful cooling due to Batwing blades providing up to 20% higher air flow.
  • Effective vibration reduction
    Four isolator mounts reduce vibrations and make the fan installation easier.

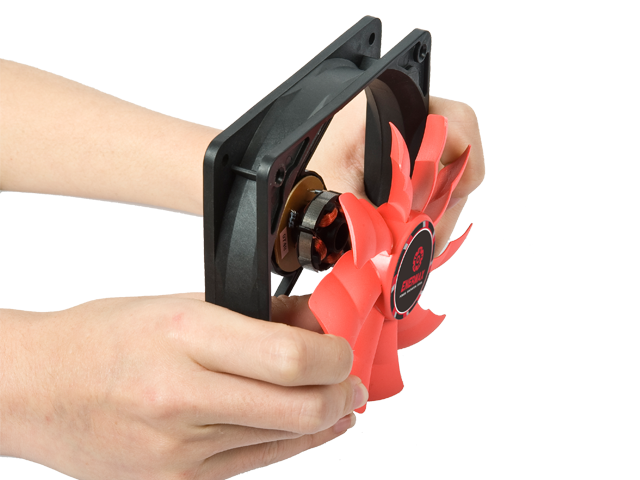

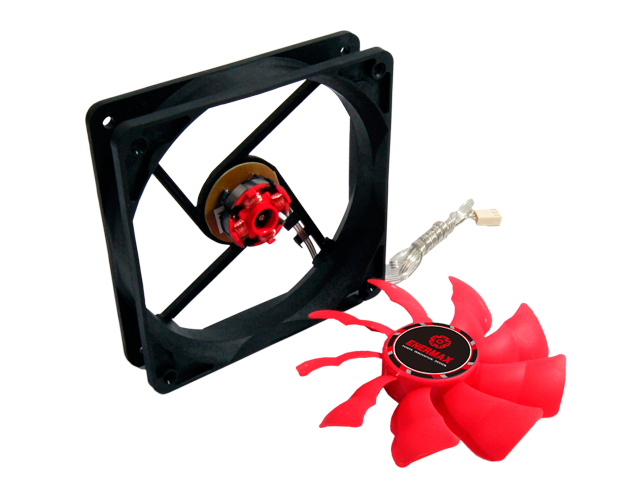

  • Click Mechanism
    Detachable blades for easy cleaning from dust.
  • Warranty
    2 years

Included in Delivery

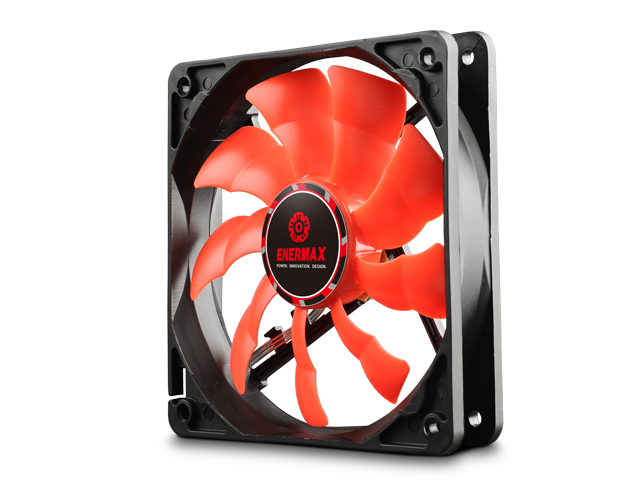

  • 12cm Magma Advance fan
  • 4 shock-proof isolator-mounts
  • 3-pin to 4-pin molex adaptor

Build in Features

Specifications

Dimensions (mm) W120 x H120 x D25
Speed Adjust Shift Speed Control
Bearing Technology patented Twister Bearing Technology
Frame heat-resistant plastic frame
Fan Blade Design Batwing
Number of Blades 9
Ultra Silent Mode Silent Mode Performance Mode
Fan Speed (RPM) 1,000
1,500 1,800
Air Flow (m³/h) 80.99
117.49
141.07
Air Flow (CFM) 47.67
69.15
83.03
Static Pressure (mm-H2O) 0.880
1.400
2.016
Noise Level (dB(A)) 13 18 20
Input Power (W) 1.44 1.8 2.4
Input Current (A) 0.12
0.15 0.20
Rated Voltage (V) 12 12 12
MTBF 160,000 hours
Connector 3 pin
Accessory 3-to-4-pin adaptor, 4x isolator mounts

Dealer Information


UCMAA12A
EAN Code
4713157732583
Master Carton - Net Weight
7,56kg
Master Carton - Gross Weight
11,64kg
Master Carton - Dimensions (mm)
W 495 x H 280 x D 340
Pieces / Master Carton
60
