ENERMAX.CO.UK - ETS-T50 AXE

Models

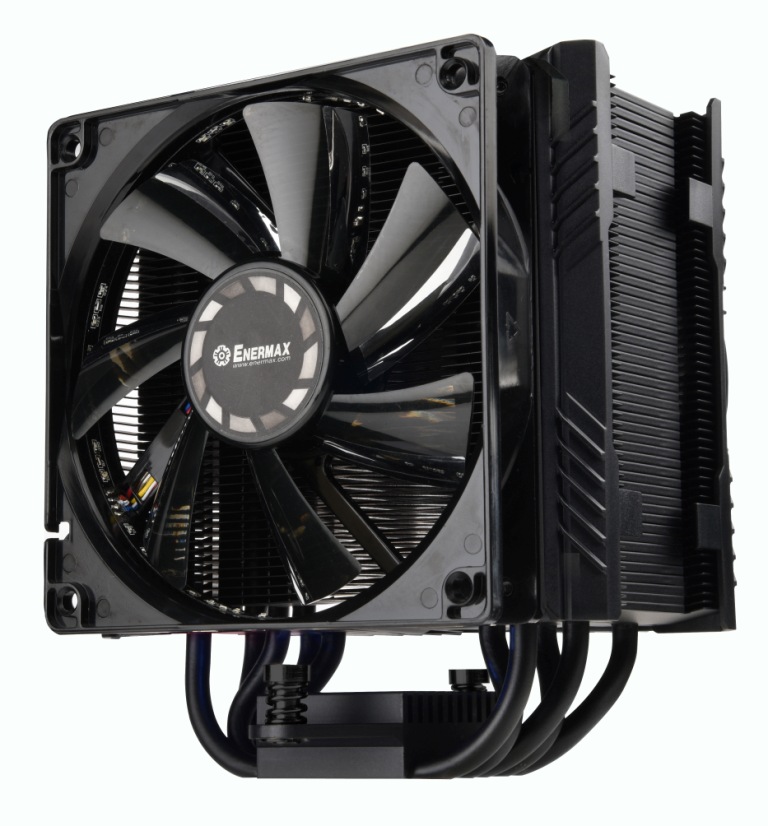

ETS-T50A-BVT
with Vegas Trio 12cm
RGB-LED

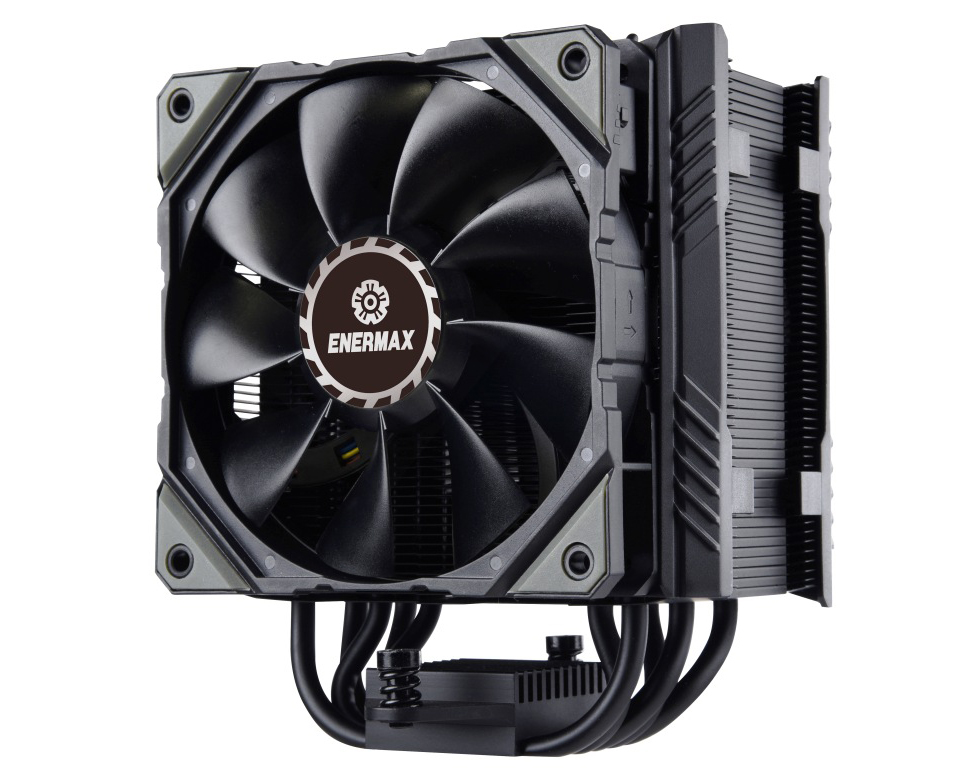

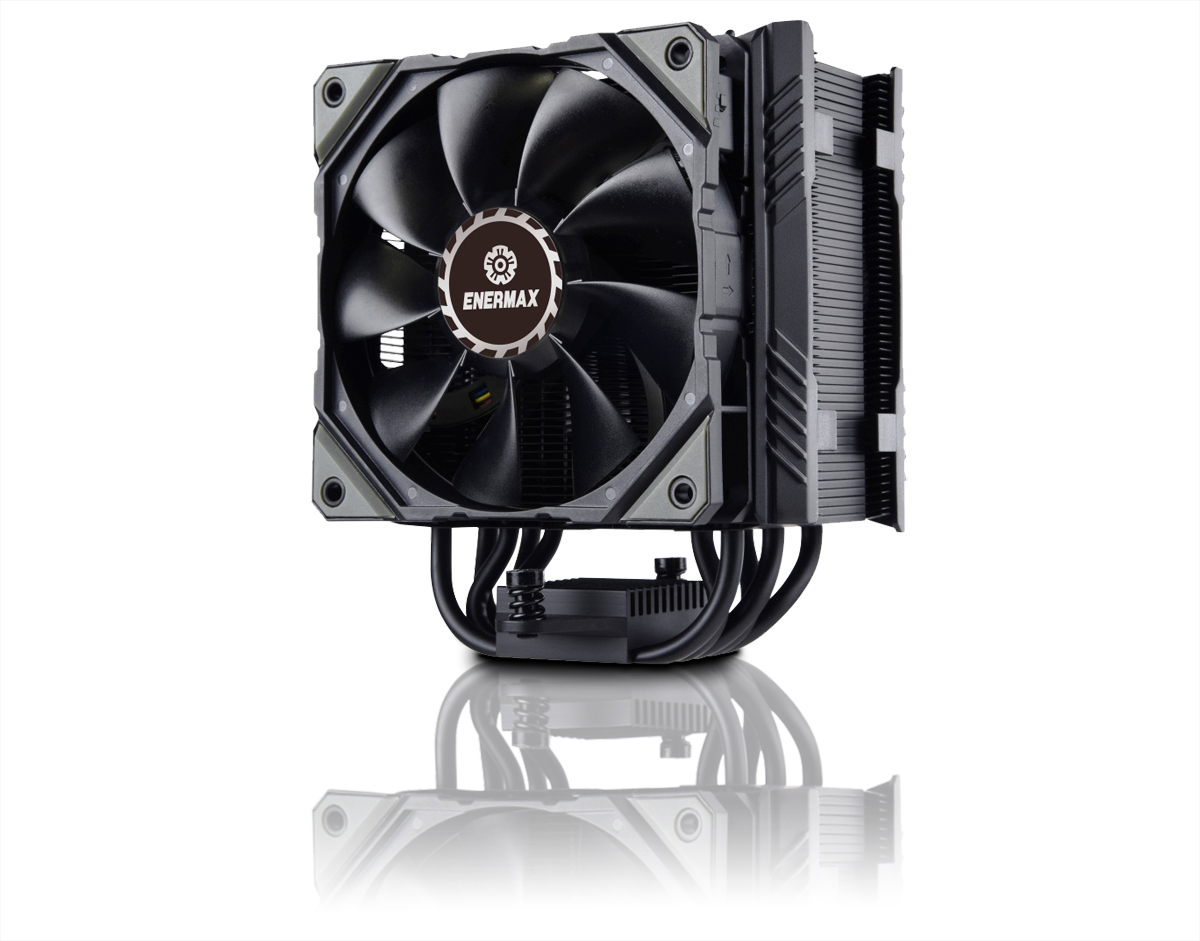

ETS-T50A-DFP
with D.F. Pressure 12cm
non-LED

>> More products with DFR™-Technology

Product Introduction

The ETS-T50 AXE is a high-performance CPU cooler with a cooling capacity up to 250W TDP and leading innovative technologies.

The asymmetric design with five 6 mm heat pipes with the Heat Pipe Direct Touch technology ensures a quick heat transfer and allows the installation of high RAM modules.

The cooler is equipped with a 12cm ENERMAX fan with patented DFR ™ (Dust Free Rotation) technology. By spinning in reverse at full speed for 10 seconds at the start, the fan reduces dust accumulation.

The 360° rotatable Air Guide directs the airflow behind the cooler to quickly release the hot air from the system.

The patented Pressure Differential Flow (PDF) Design pushes the air through a conical channel, improving the air flow and increasing the cooling performance by up to 15%.

The ETS-T50 AXE is available in two versions. The ETS-T50 AXE with D.F.Pressure fan for pure cooling performance and The ETS-T50 AXE with Vegas Trio fan, equipped with the patented circular LED frame with a total of 36 LEDs (red, green, blue) providing incredible light effects.

Dust Free Rotation™ Technology

DFR™ (Dust Free Rotation) Technology*
The patented technology DFR ™ allows the fan to remove automatically the dust from the fan blades.
After starting the PC, the fan spins in reverse at full speed removing all the dust.
After that it will shift back to the normal operation mode.

*Please note: Automatic LED self-testing will be activated during DFR mode (only ETA-T50A-BVT).

7 in 1

7 in 1 – the ETS T50 AXE is featured with seven patented technologies.

Excellent cooling performance is enhanced by the black Thermal Conductive Coating (TCC)
that covers the entire cooler.

Pressure Differential Flow Design – increases the airflow
up to +15%.

Heat-Pipe Direct Touch – enables a quick heat
transfer from the CPU.

360° rotatable Air Guide - It offers to the user the possibility to
direct the airflow into the preferred direction.
This allows the possibility to create the perfect case airflow according to the needs of the system.

Circular-type LED* – for single-color or multi-color lighting effects.

*only ETS-T50A-BVT

	Twister Bearing Technologie – patented fan bearing technology that provides silent operation and long lifespan of the fan of up to 160,000 hours MTBF.
	Dust Free Rotation Technology – ETS T50 AXE is equipped with a Dust Free Rotation (DFR) fan featuring the self-cleaning function.

Vortex Generator Flow Design – Small spoilers on the fins, the so-called Vortex generators, conduct the air close along the heat pipes. Much more fresh air can be transferred to the heat pipes increasing the overall cooling performance.

AMD AM4-Socket

AM4 Compatibility

The LED version of ETS-T50 AXE (ETS-T50A-BVT) is compatible with AMD AM4 socket via a free retention kit.

The non-LED version of ETS-T50 AXE (ETS-T50A-DFP) is AM4 compatible out of the box - no additional AM4 kit required.

Information for Dealers

Model	ETS-T50A-BVT	ETS-T50A-DFP
EAN Code	4713157722317	4713157722720
Product Box - Weight	1.39kg	1.39kg
Product Box - Dimensions	220 x 175 x 130mm	220 x 175 x 130mm
Master Carton - Dimensions	460 x 370 x 295mm	460 x 370 x 295mm
Master Carton - Gross Weight	12.5kg	12.5kg
Master Carton - Pieces	8 units per carton	8 units per carton

Scope of Delivery & Warranty

1x ETS-T50A-BVT / ETS-T50A-DFP
Intel® Mounting Kit
AMD® Mounting Kit

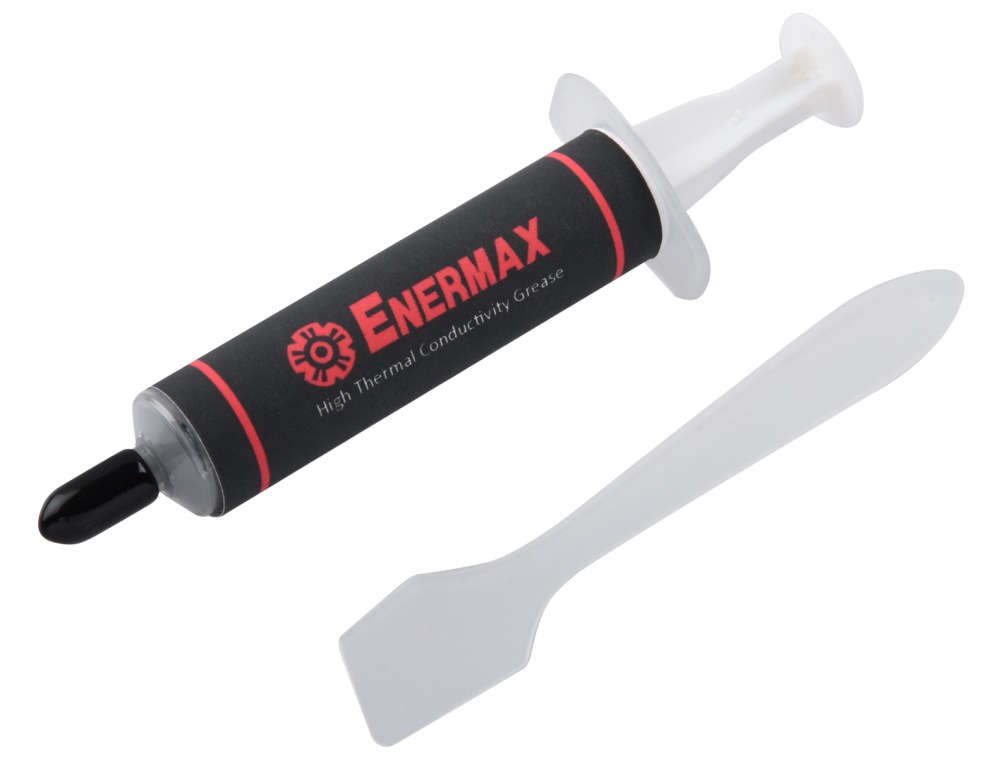

Thermal Grease

2 Years vendor warranty

Specifications ETS-T50A-BVT

Model	ETS-T50A-BVT
Compatible Sockets	Intel® LGA 775, 115x, 1366, 2011(-3) Square ILM, 2066 AMD® FM1, FM2(+), AM2(+), AM3(+), AM4 kit available on request*
Overall Dimensions (mm)	L 138.7 x W 111.9 x H 160
Heat Sink Dimensions (mm)	L 135.2 x W 65 x H 160
Heat Sink Coating	TCC black
Number / Thickness of Heat Pipes	5 x Ø 6mm
Weight	860g (w/o fan)
Thermal Design Power (TDP)	250W
Material	Copper Heat Pipes / Aluminium Fins
Thermal Grease	Dow Corning® TC-5121

Fan
Fan Model	Vegas Trio
Fan Dimensions (mm)	120 x 120 x 25
Bearing Type	Twister Bearing Technology (patented)
Fan Speed (RPM)	800 - 1,800
Air Flow (m3/h)	47 - 105.8
Air Flow (CFM)	27.69 - 62.32
Static Pressure (mm-H2O)	0.38 - 1.93
Noise Level (dB(A))	18.9 - 25
Rated Voltage (V)	12
MTBF	160,000 hours
LED	circular LED (RGB)
LED effects	Vegas mode (Sparkle / All-On / Flash autoplaying)
Fan connector	4 pin PWM
Fan Mounting	1-Click Clip-Bracket

Specifications ETS-T50A-DFP

Model	ETS-T50A-DFP
Compatible Sockets	Intel® LGA 775, 115x, 1366, 2011(-3) Square ILM AMD® FM1, FM2(+), AM2(+), AM3(+), AM4
Overall Dimensions (mm)	L 138.7 x W 111.9 x H 160
Heat Sink Dimensions (mm)	L 135.2 x W 65 x H 160
Heat Sink Coating	TCC black
Number / Thickness of Heat Pipes	5 x Ø 6mm
Weight	860g (w/o fan)
Thermal Design Power (TDP)	250W
Material	Copper Heat Pipes / Aluminium Fins
Thermal Grease	Dow Corning® TC-5121

Fan
Fan Model	D.F. Pressure
Fan Dimensions (mm)	120 x 120 x 25
Bearing Type	Twister Bearing Technology (patented)
Fan Speed (RPM)	800 - 1,000	800 - 1,500	800 - 2,000
Air Flow (m3/h)	57.24 - 71.87	57.24 - 113.61	57.24 - 145.15
Air Flow (CFM)	33.69 - 42.30	33.69 - 66.87	33.69 - 85.43
Static Pressure (mm-H2O)	0.819 - 1.358	0.819 - 2.701	0.819 - 4.812
Noise Level (dB(A))	16 - 18	16 - 23	16 - 27
Rated Voltage (V)	12
MTBF	160,000 hours
Fan connector	4 pin PWM
Fan Mounting	1-Click Clip-Brackets

*AM4 Compatibility
The LED edition of ETS-T50 AXE (ETS-T50A-BVT) is compatible with AMD AM4 socket via free retention kit. The non-LED edition of ETS-T50 AXE is already AM4 compatible ex factory - no additional AM4 kit required.

How to install the ETS-T50 AXE cooler

Durable metal Installation kit
The kit offers the possibility to use the ETS T50 AXE either on AMD or Intel CPU.

For detailed instructions how to install the CPU cooler, please check the official>> product manual!

DUST FREE ROTATION™ TECHNOLOGY

Dust Free Rotation™ Technology

The patented DFR ™ helps to increase the product lifetime by reducing dust accumulation and therfore increses the cooling performance.
The fan reverse spins after starting to remove accumulated dust from the fan blades.
After 10 seconds it returns to normal operation.

*Please note: Automatic LED self-testing will be activated during DFR mode.

PRESSURE DIFFERENTIAL FLOW DESIGN

Pressure Differential Flow Design – increases the airflow up to +15%.

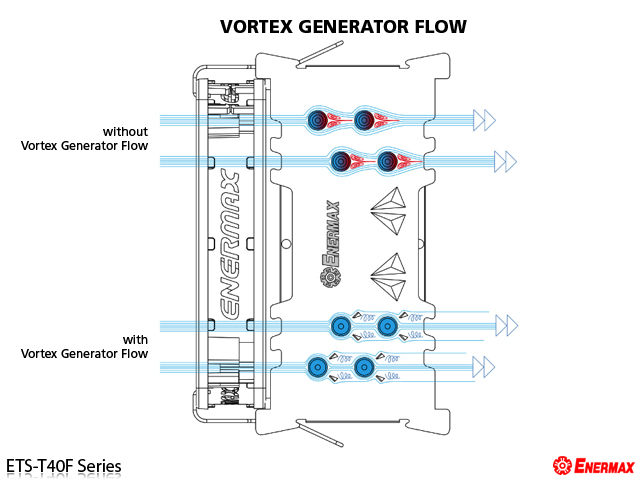

VORTEX GENERATOR FLOW (VGF)

		Vortex Generator Flow (VGF) - patented Vortex generators are applied in aviation industry. They make sure that the air stream is lead as close as possible along the airplane’s wings. During the CPU cooler development, the Enermax engineers recognized the potential of this technology to optimize the air stream inside the heat sink: Small spoilers on the fins, the so-called Vortex generators, conduct the air close along the heat pipes. Much more fresh air can be transferred to the back of the heat pipes.
>> Click to enlarge <<

de.pinterest.com/pin/create/extension/

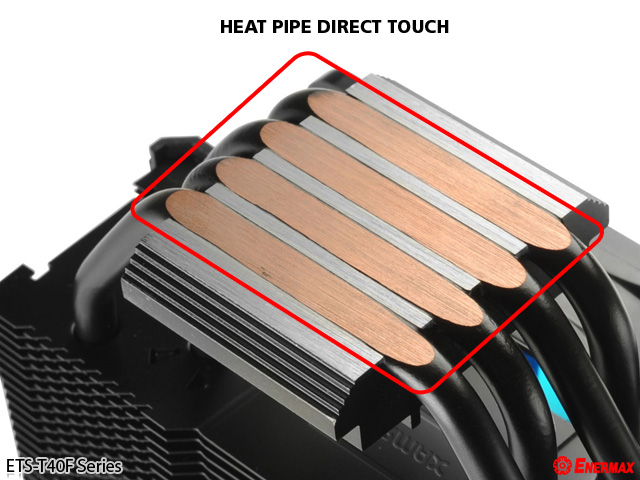

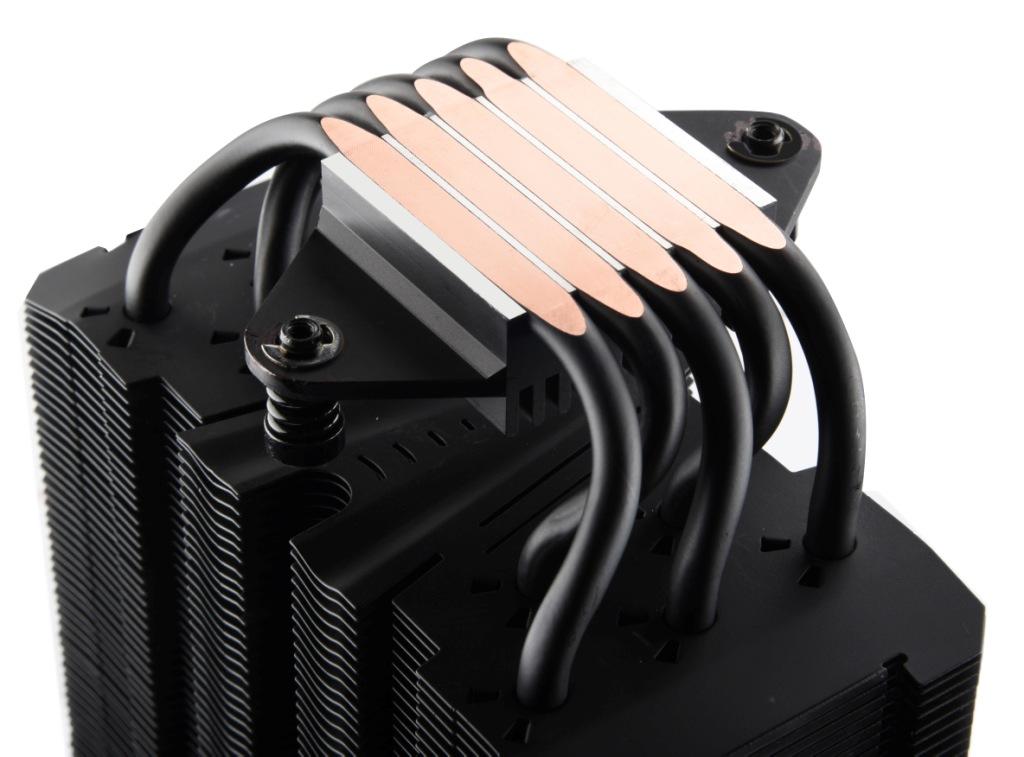

HEAT PIPE DIRECT TOUCH (HDT)

		Heat Pipe Direct Touch - Patented With the Heat Pipe Direct Touch technology the heat pipes rest directly on the CPU. The advantage against a base plate is the faster tansfer of heat without any additional resistance.
>> Click to enlarge <<

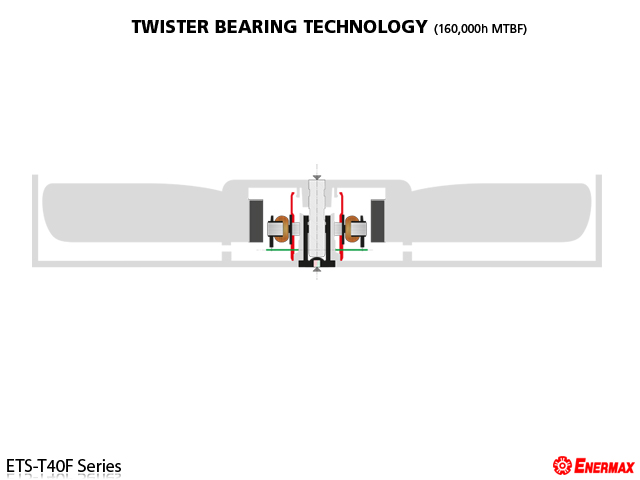

TWISTER BEARING TECHNOLOGY

		Patented Twister Bearing Technology The bearing shaft is fixed to the rotor. When you turn the fan on, a small magnet inside the bearing holds the shaft in position. The convex surface of the base reduces the frictional resistance and ensures a quiet and smooth fan rotation. The sleeve is made from a self-lubricating material and prevents the bearing from draining and corrosion. That way, Enermax guarantees an exceptionally long lifetime of up to 160,000 hours (MTBF). Another useful feature of the Twister fans is the “Click Mechanism”. By pressing the rear side of the blades, you can detach the rotor and clean it from dust. Put it back on the base and press it down until you hear a “click”. >> Watch a video about the Twister Bearing Technology
>> Click to enlarge <<

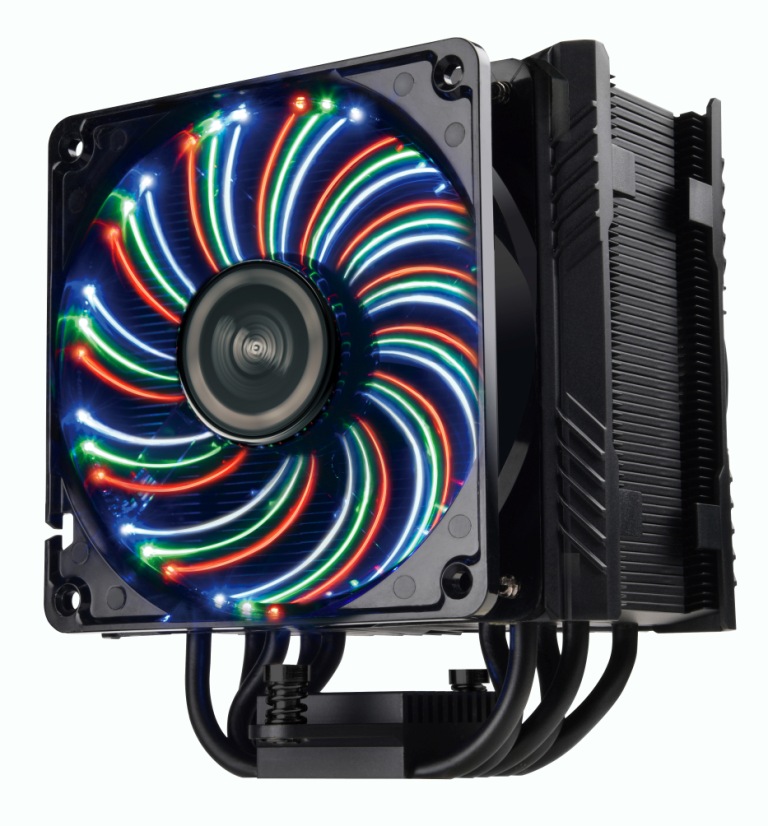

CIRCULAR LED LIGHT

		Patented Circular LED Light The CPU cooler is equipped with a Vegas Trio LED fan. ENERMAX patented LED technology creates striking light effects and achieves extraordinary bright colors. The LED ring is made of 36 LED diodes in red, green and blue. The Vegas Trio comes with 5 seperatly adjustable color mode: Blue, red, green, all three colors and off. Each color come with 3 autoplaying lighting effects: Sparkle, All-on and Flash.

ROTATABLE AIR GUIDE

Air Guide
The equipped Air Guide offers to the user the possibility to direct the airflow into the preferred direction.

This allows the possibility to create the perfect case airflow according to the needs of the system.

ASSYMETRIC HEAT PIPE DESIGN

Asymmetric Heat Pipe Design

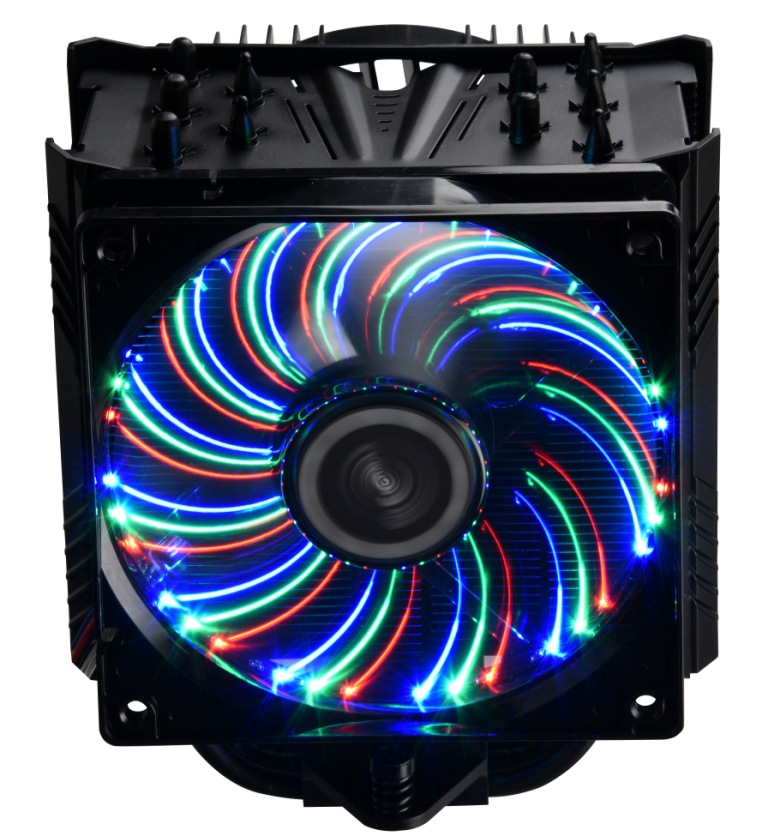

DFR™ FAN - ENERMAX VEGAS TRIO

12cm DFR™ Fan - Enermax Vegas Trio

This fan is featured with 5 switchable Vegas LED modes (Blue, Red, Green, 3-color, Off).Each LED mode comes with 3 autoplay lighting effets (Sparkle, All On, Flash).

DFR™-FAN: ENERMAX D.F. PRESSURE

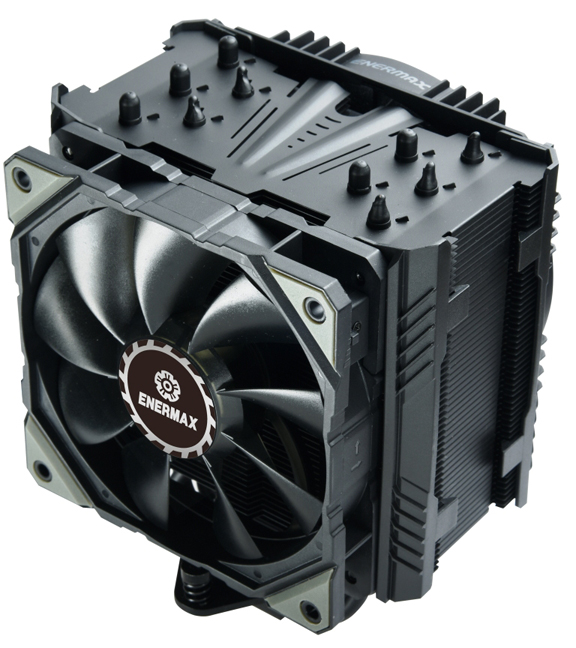

12 cm Enermax D.F. Pressure Fan
The ETS-T50A-DFP is equipped with a 12cm Enermax D.F. Pressure fan designed for use on CPU coolers. The fan has 9 fan blades with special High Pressure Blade Design for extreme high static pressure. The integrated APS function allows you to choose from three RPM ranges: Ultra Silent Mode 800 - 1.000 RPM / Silent Mode 800 - 1,500 RPM / Performance Mode 800 - 2.000 RPM.
