Versions

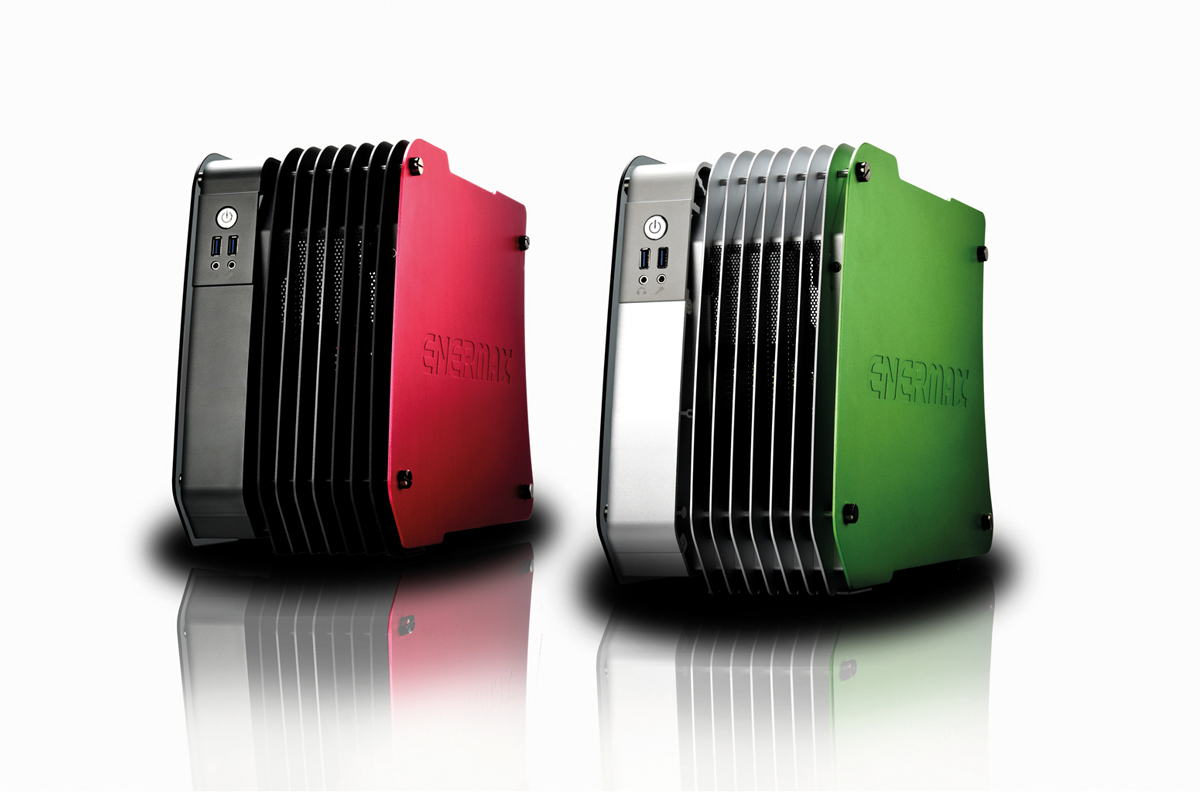

Steelwing Dynamic Red
ECB2010R

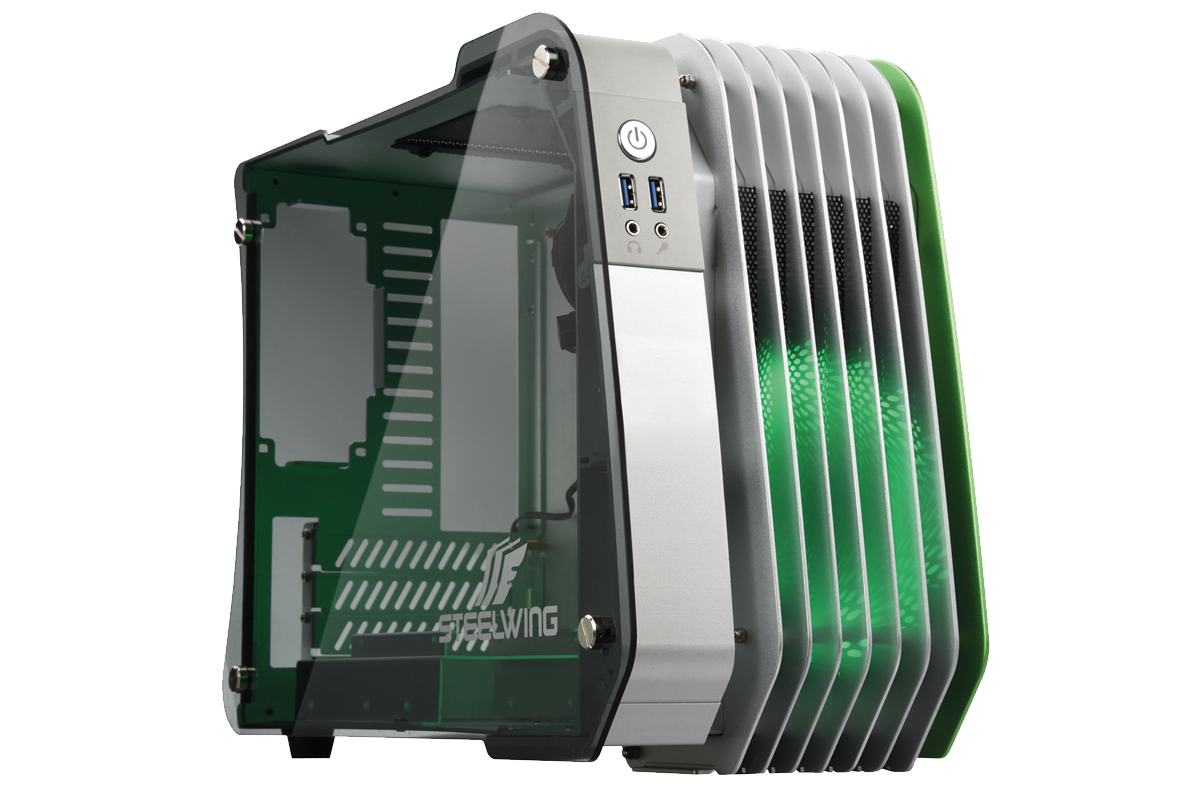

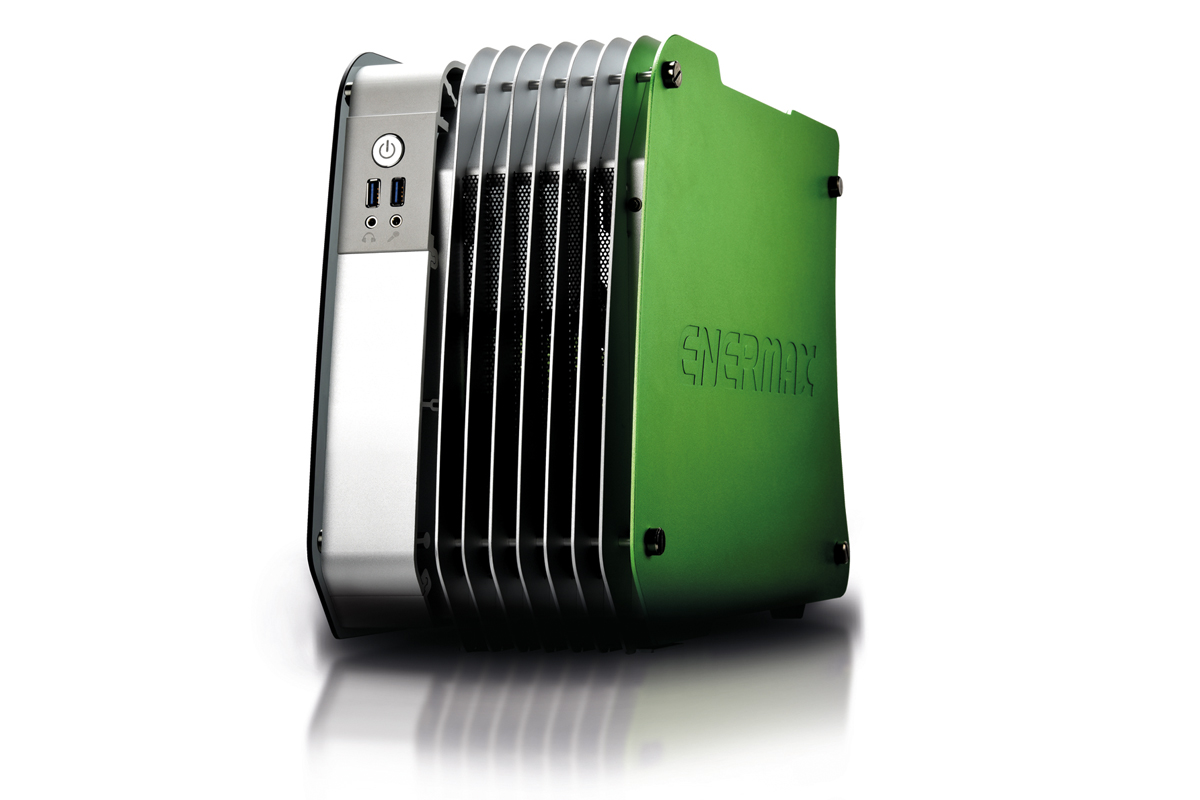

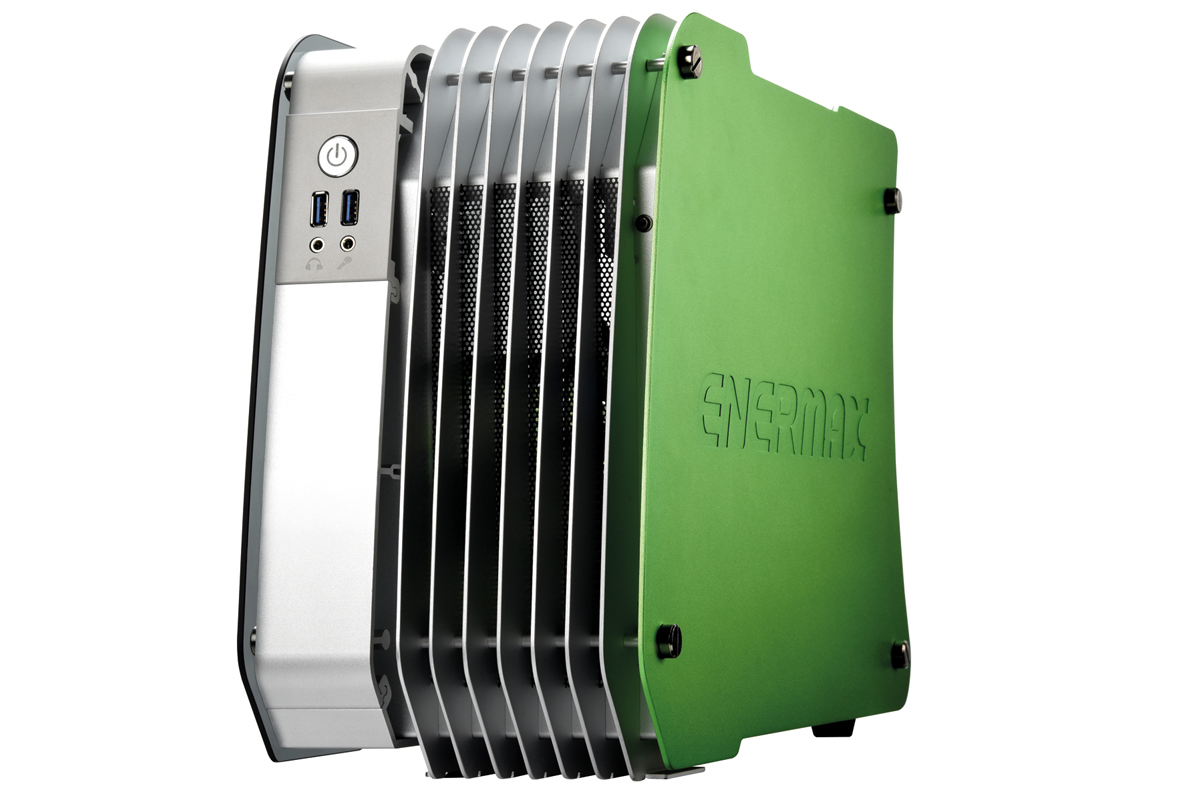

 Steelwing Acid Green
ECB2010G
Limited Edition

Recomended Accessory

Revolution SFX 550W ERV550SWT Revolution SFX 650W ERV650SWT
Liqmax II 120
ELC-LMR120S-BS

Product Introduction

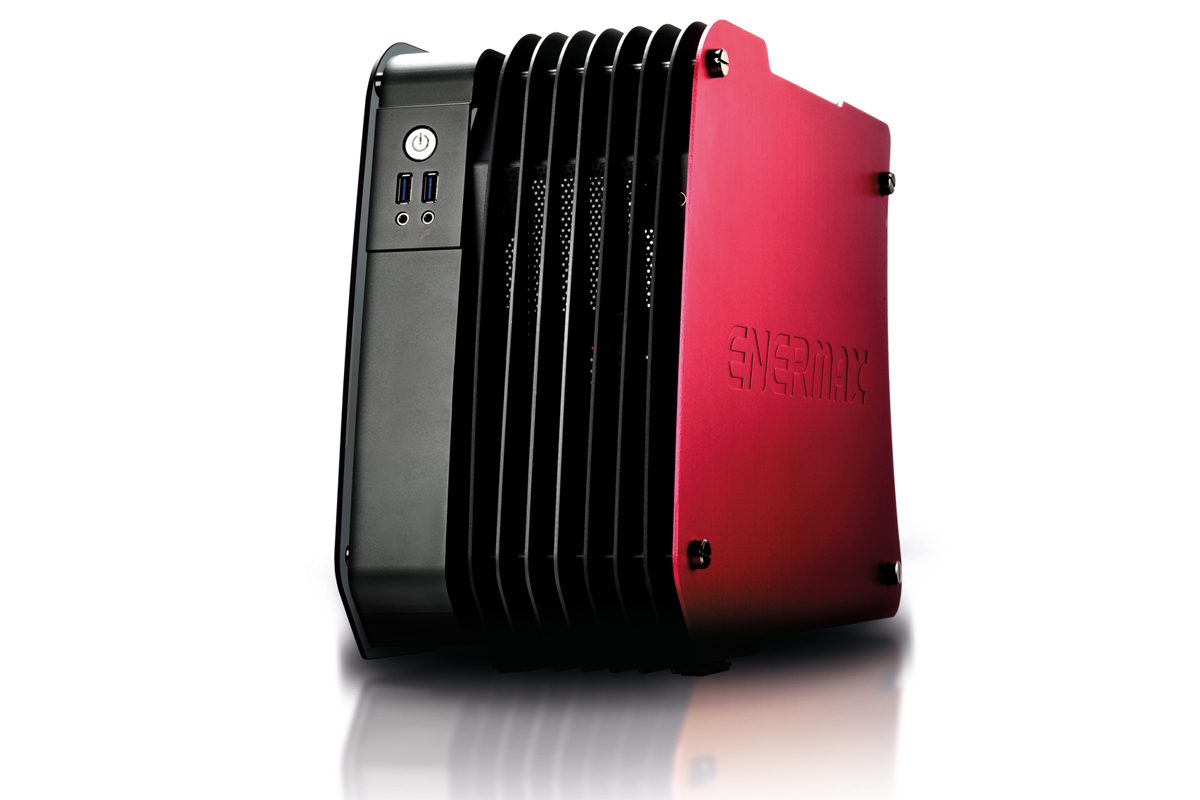

Steelwing - The Valkyrie of the Battlefield

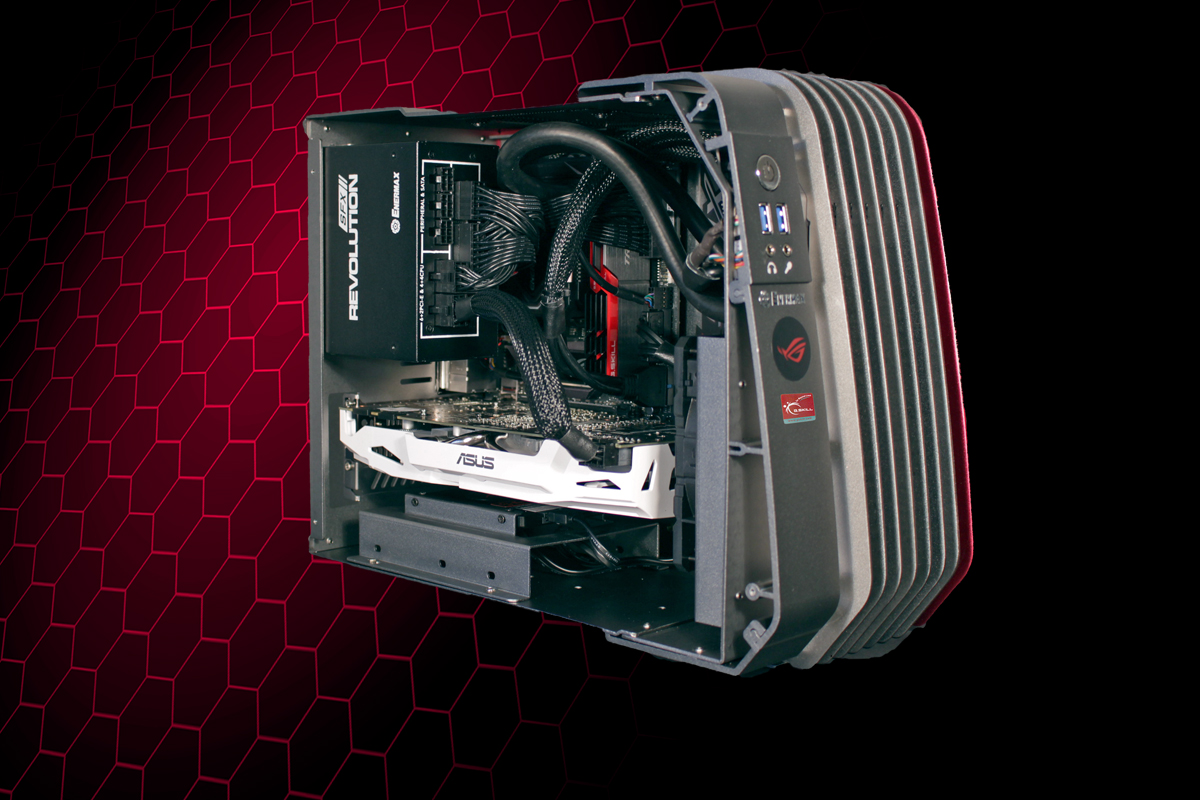

This premium m-ATX case is specially created for you by Enermax. Every single piece is the outcome of extensive handcraft. Put together for you out of sandblasted aluminium and tempered glass. Despite its compact chassis you can install liquid cooling solutions and high end graphics cards for a powerful gaming machine. The frameless side window gives an open view to your hardware. With the limited edition of Steelwing you already hold a collector's item in hands today.

Design


  • 100% Aluminium
    The entire body is put together from solid aluminium for an elegant design.

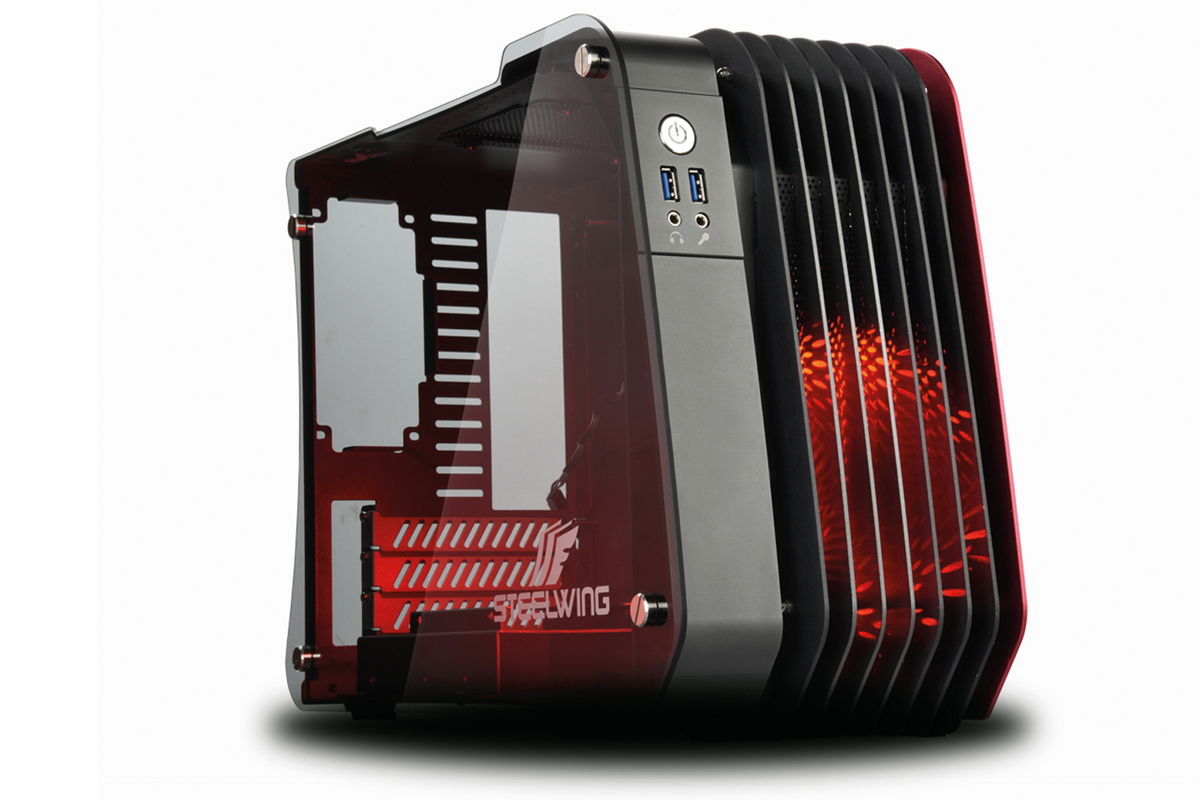

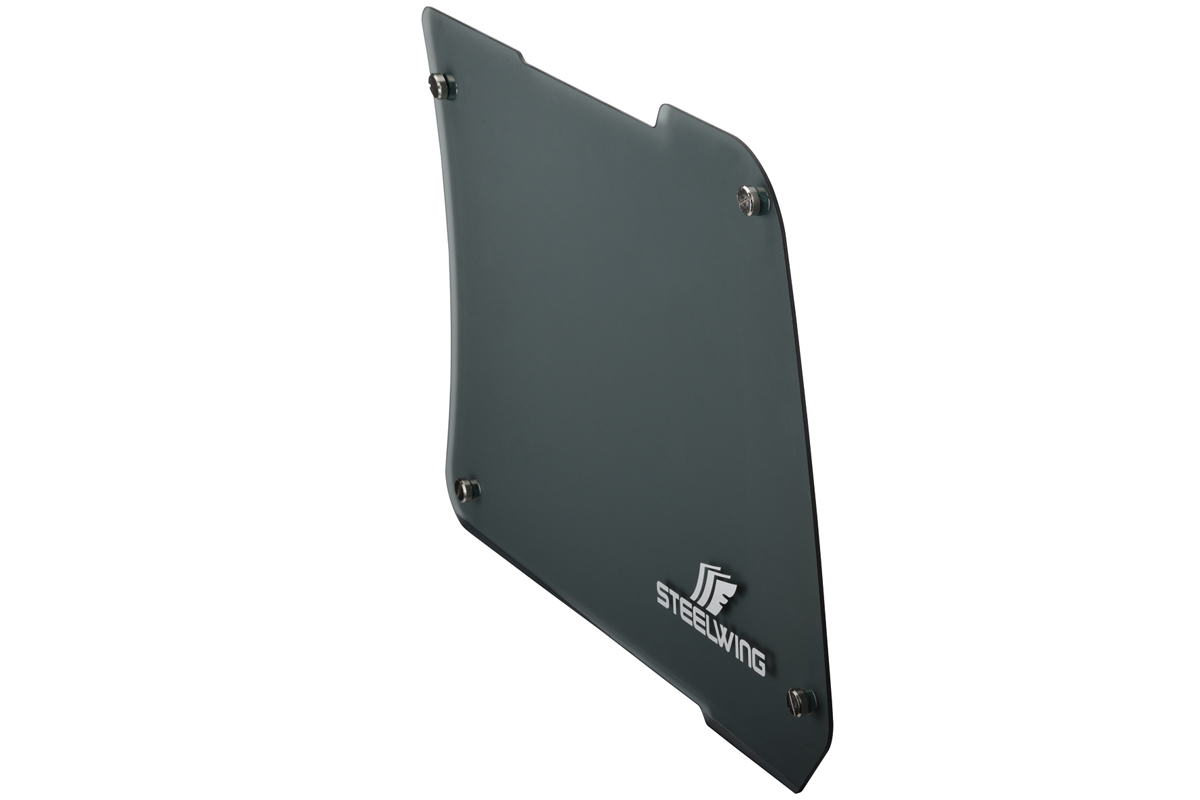

  • Tinted Glass Sidepanel

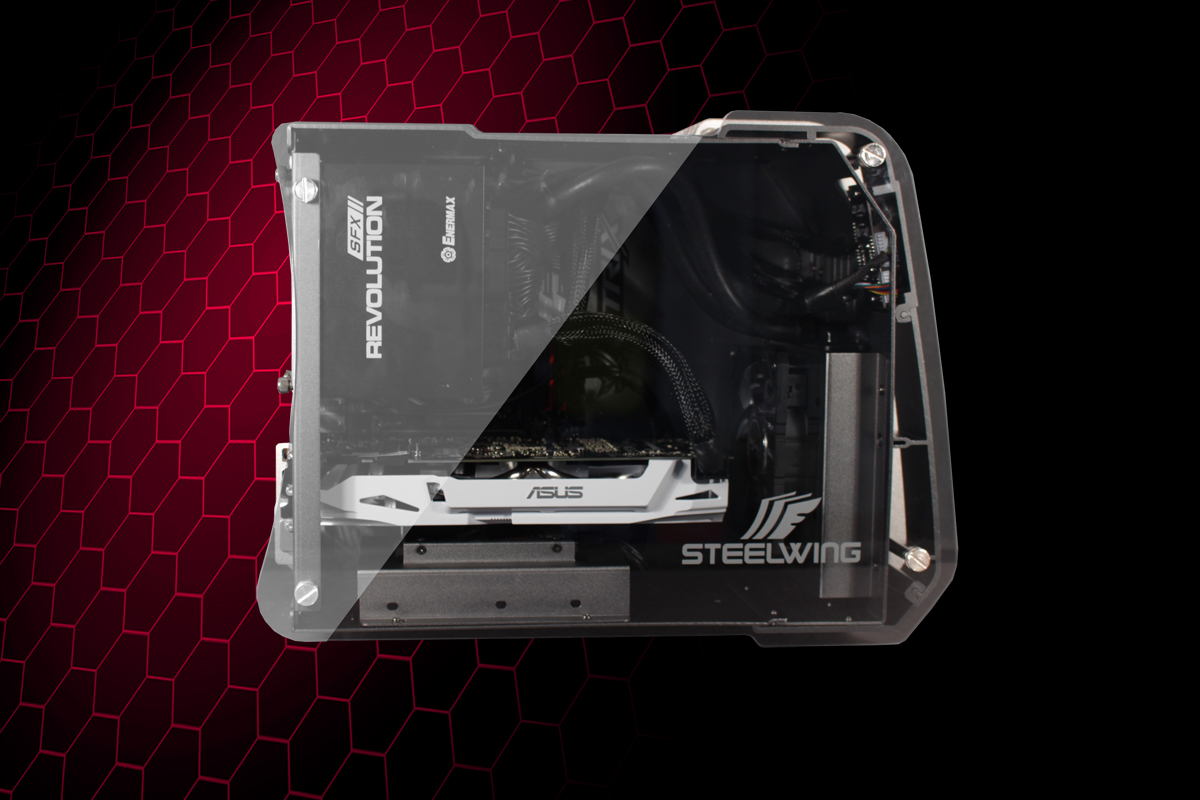

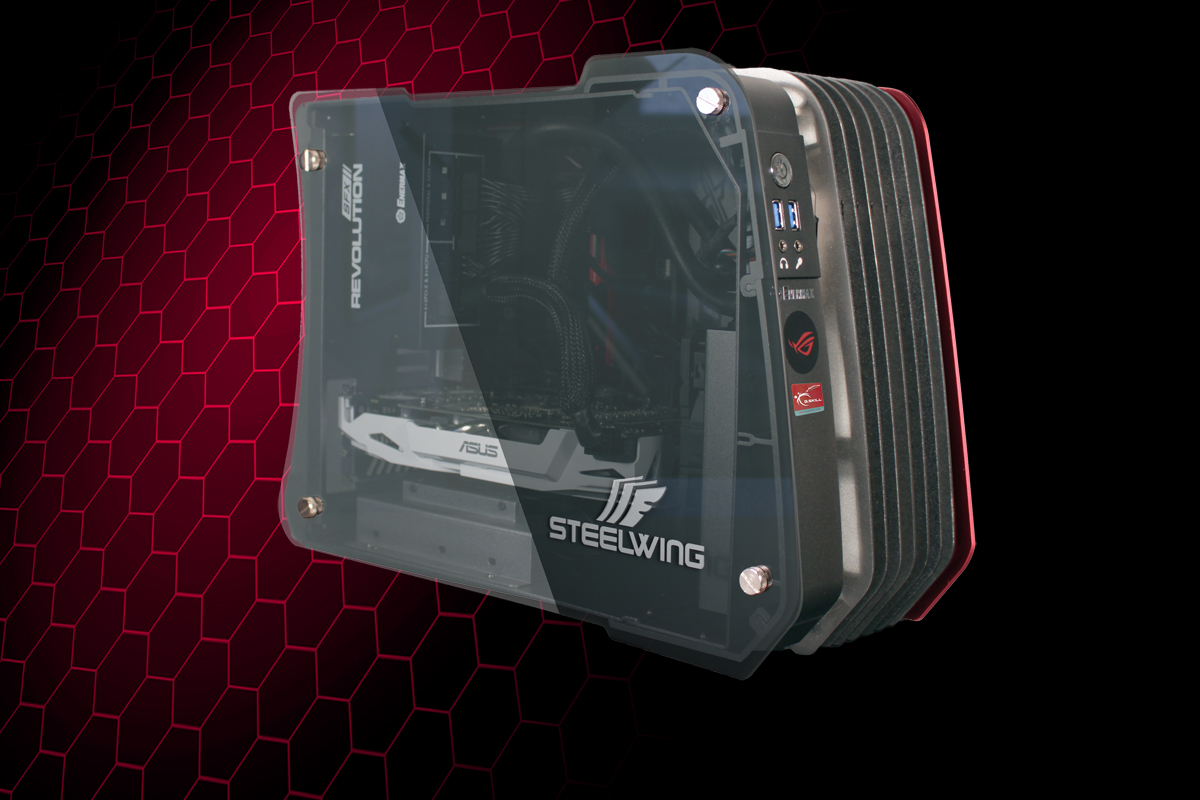

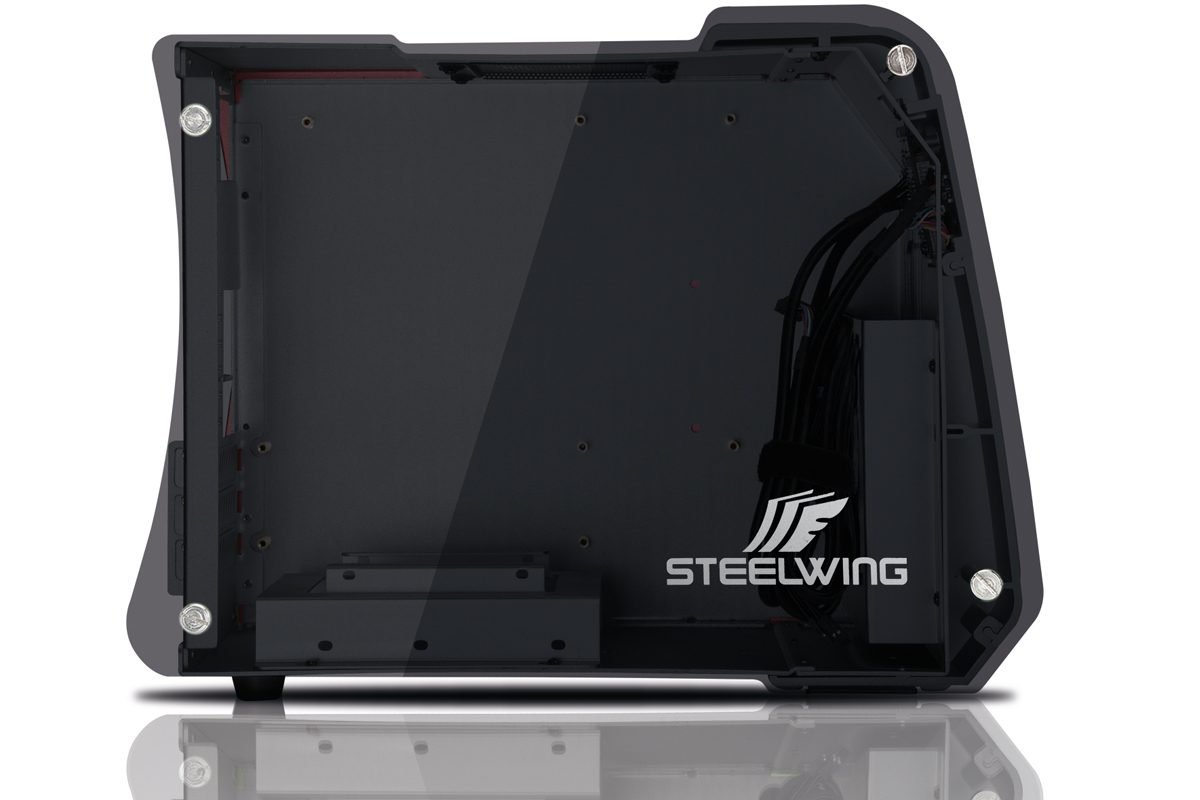

    The dark tinted side panel is made out of 3mm thick tempered glass. The frameless desgin guarantees a free view on your stylish hardware.
  • Anodized and sandblasted Aluminium
    To attract envious eyes on your case and to prevent fingerprints.
  • Apollish LED Fan Pre-Installed
    The case comes with a pre-installed red (ECB2010R) or green (ECB2010G) Apollish fan with LED ring.


Compatibility


  • Mainboard Support
    Supports high-end mainboards with micro-ATX and mini-ITX form factors.
  • SSD/HDD support
    You can install up to 2x 3.5" HDD and 1x 2.5" SSD within the featured brackets.
  • 120 mm liquid cooler support
    Enough space to empower your system with a strong liquid cooler in the front.
  • CPU air cooler support
    The case supports CPU coolers up to 80mm in height.
  • Full Gaming Power
    Enough space for high-end graphics cards with up to 290mm length.


Cooling


  • Air Cooling by Enermax
    Quality Enermax fan included: 1x 120mm red Apollish LED fan (ECB2010R) in the front or 1x 120mm green Apollish LED fan in the front (ECB2010G) come pre-installed.

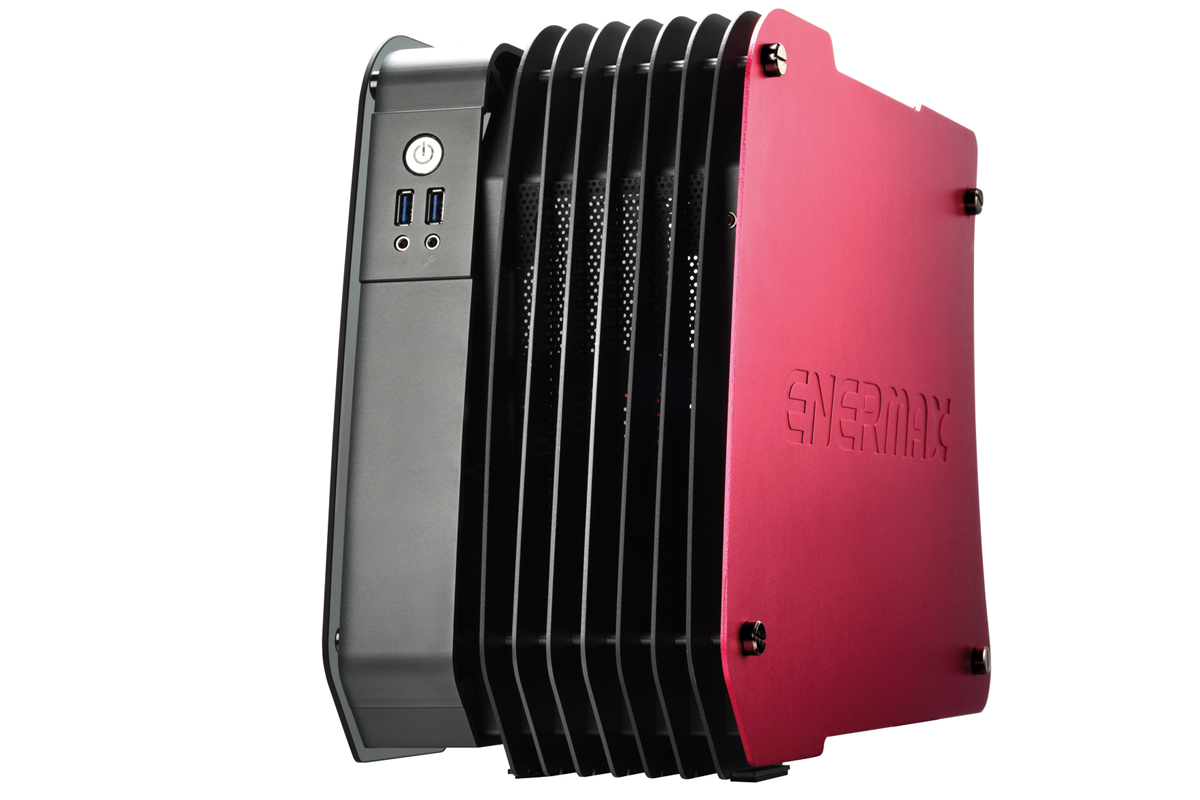

  • Wing-Shaped Concept
    The semi-open design with seven stacked aluminium plates lets the air pass through the case easily to cool down the hardware.

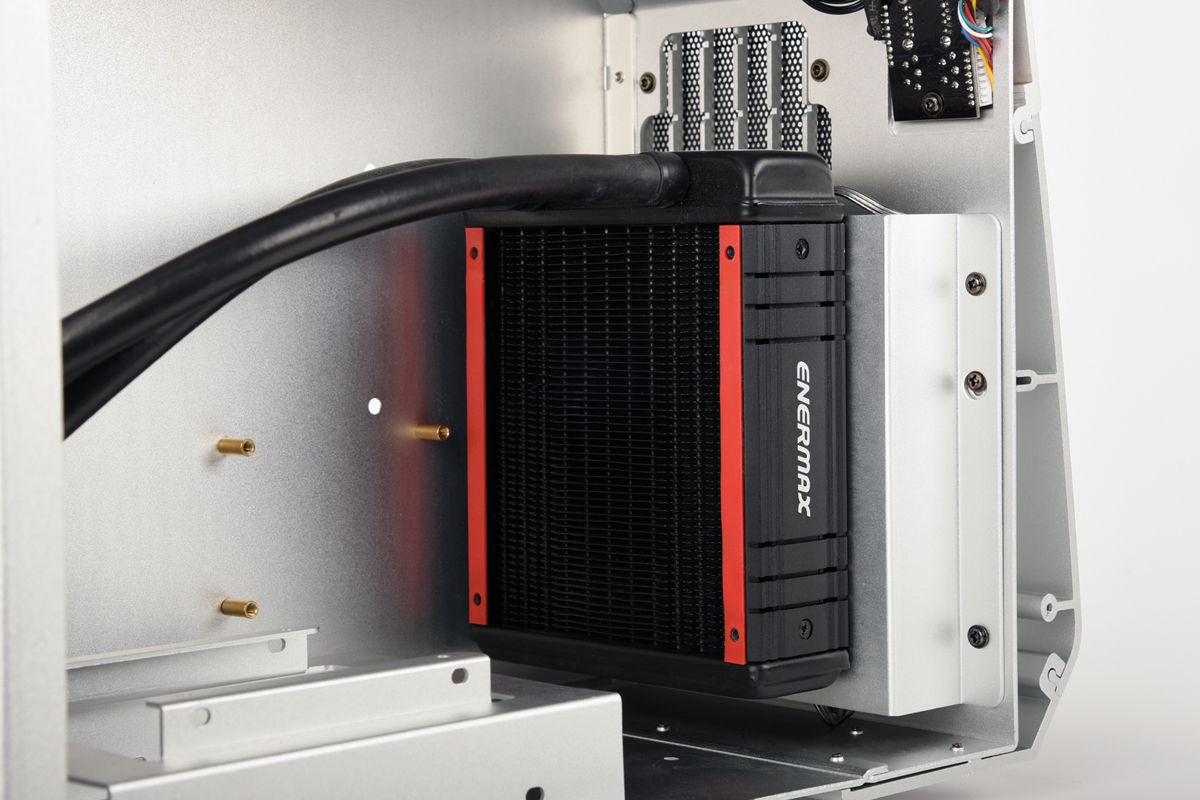

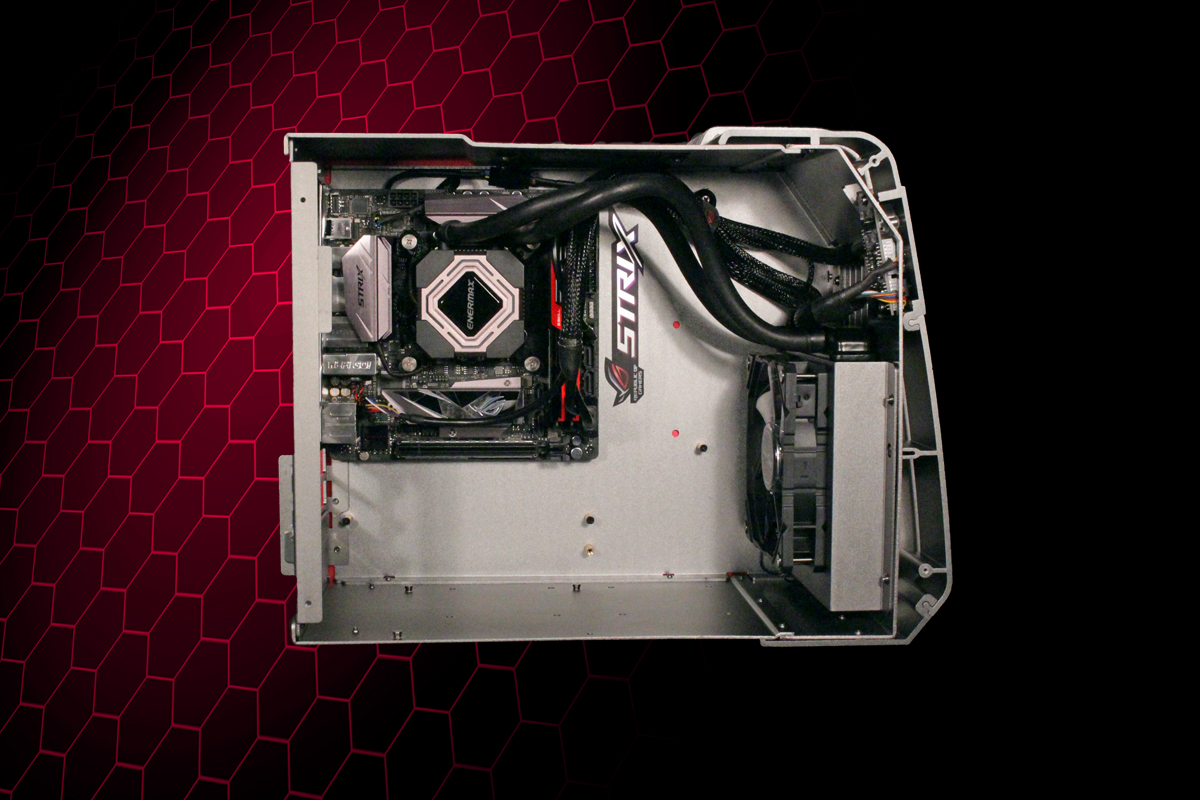

  • Water Cooling Support
    Supports coolers with 120mm radiator in the front for best cooling performance within limited space. To cool powerful graphics cards inverting the airflow from inside to outside can help to increase the cooling performance.
  • Advanced Cooling System
    Meshed panels ensure a good air flow throughout the case and provide optimised system cooling.

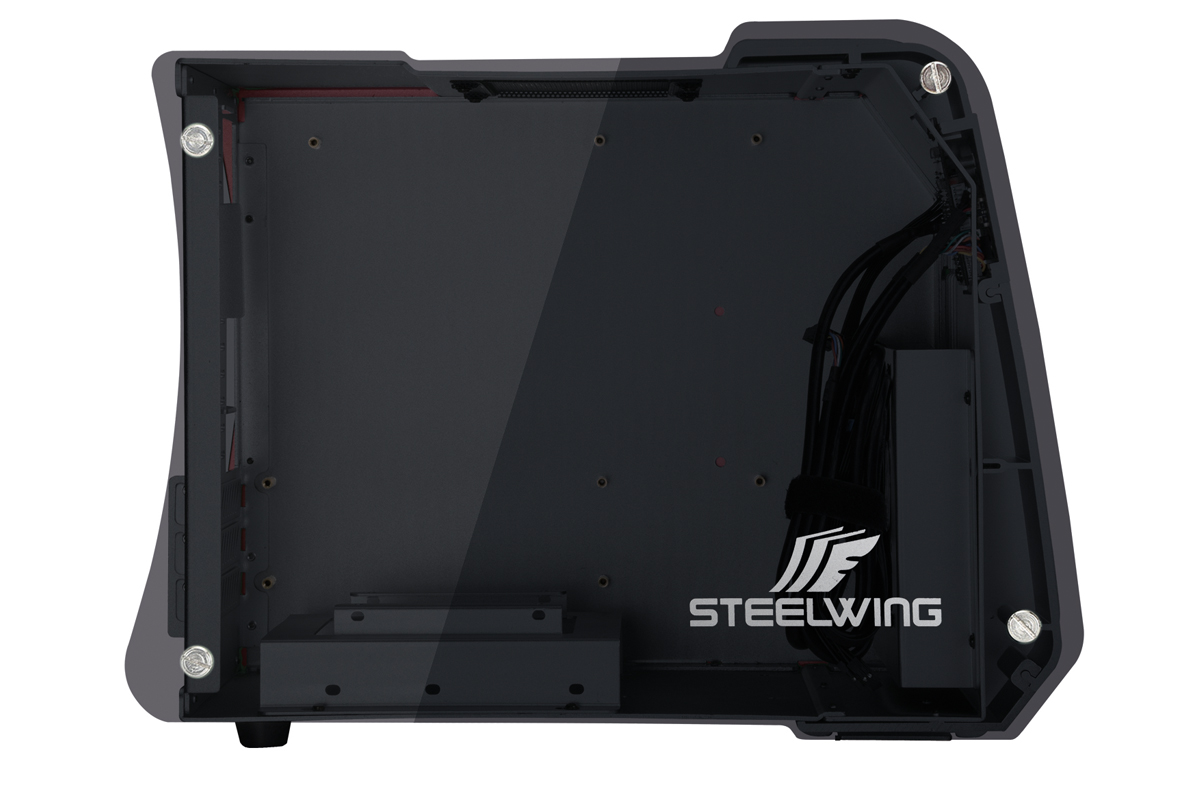

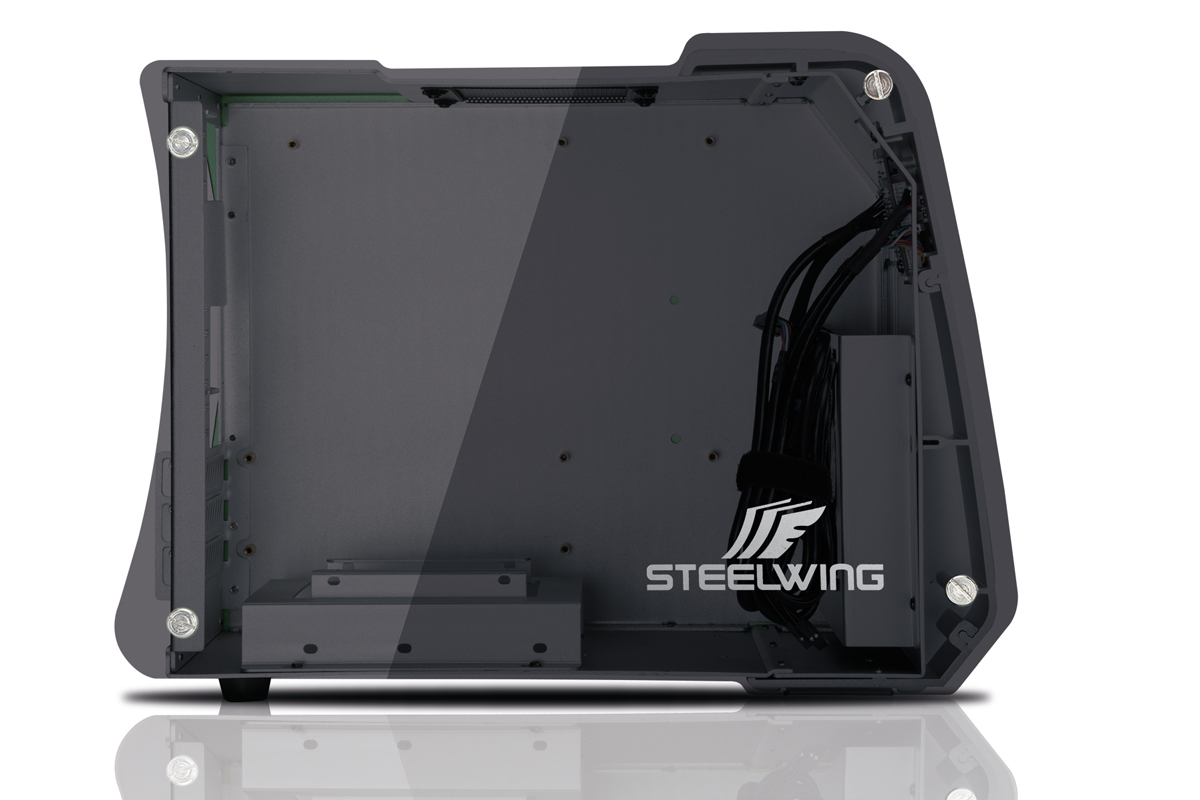

Data Storage Management


  • Extented Data Storage Management

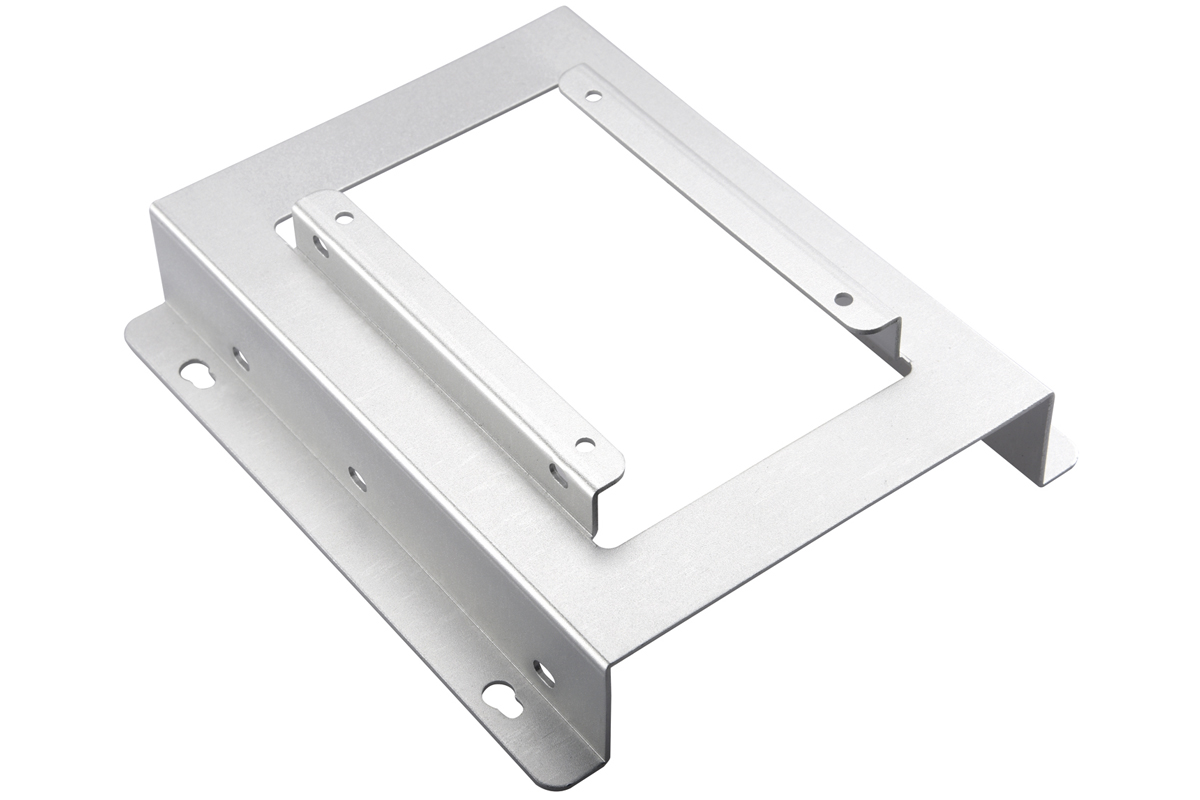

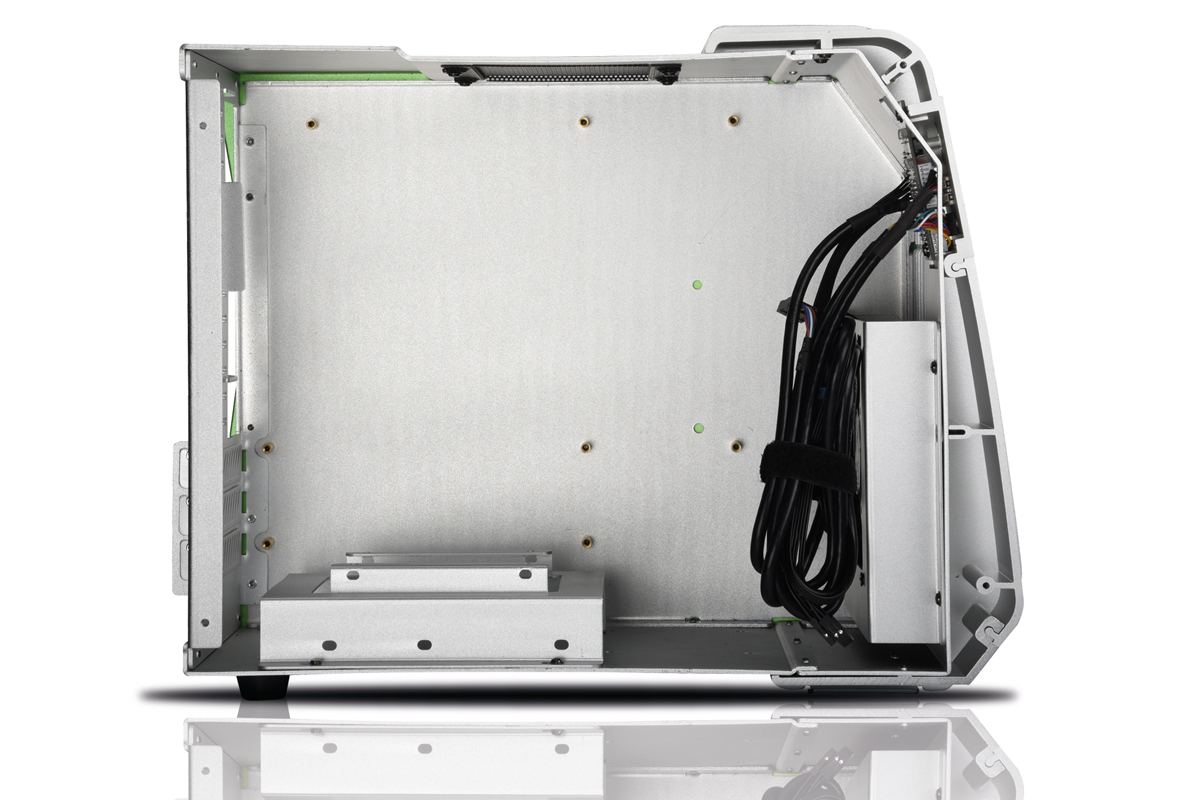

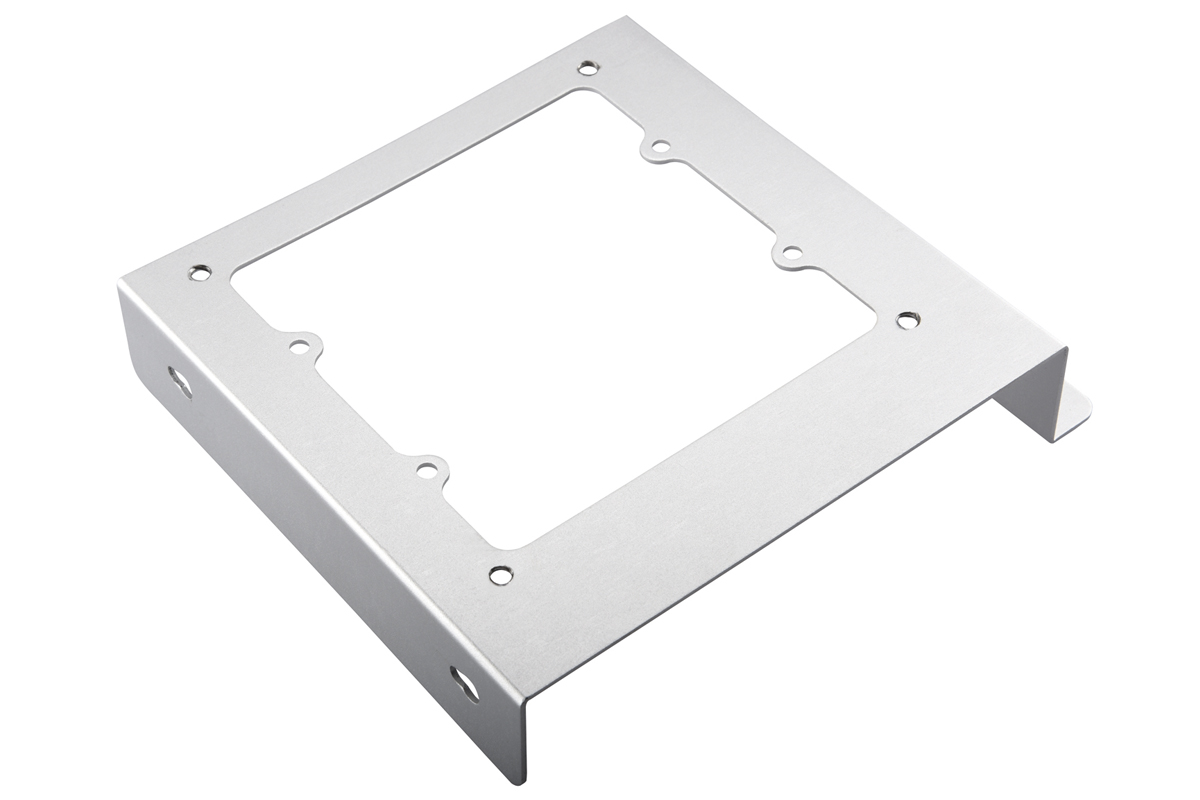

    The case accommodates up to three data storage devices (1x 2.5”, 2x 3.5” HDD/SSD) and allows a flexible management of large data. One 2.5" and one 3,5" data storage device can be mounted on the bottom HDD cage, one more 3.5" devices can be stored behind the front fan.
  • Ultra High-Speed Data Transfer
    Two USB 3.0 ports, with up to 5 Gbit/s data transfer rate, in the front ensure easy connection of external HDDs and peripherals.


Dealer Information

Model ECB2010R ECB2010G
Color Dynamic Red with Apollish LED fan
 Acid Green with Apollish LED fan
EAN Code 4713157722171 4713157722423
Unit - Gross Weight 3.8 kg
Carton - Gross Weight 5.5 kg
Carton - Dimensions (mm)
 D490 x W360 x H390

Technical Details

Type m-ATX Case
M/B micro ATX, mini ITX
Colour Dynamic Red / Acid Green
Interior Colour Black / Grey
Model Number ECB2010R / ECB2010G

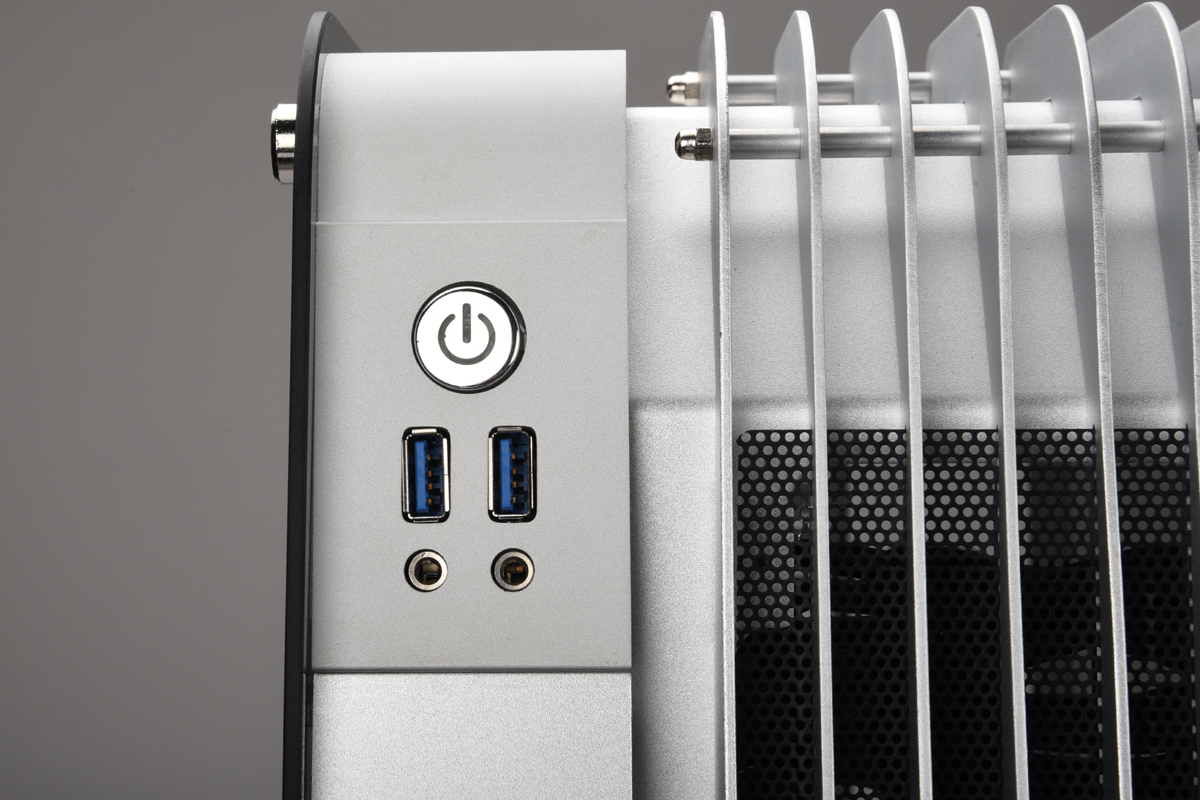

I/O on top 2x USB 3.0, HD Audio
Expansion Slots 3x

Drive Bays

3.5 inch 2x
2.5 inch 1x

Air Cooling

Model ECB2010R ECB2010G
Front 1x 120mm fan (pre-installed: 1x 120mm Apollish LED fan)

Liquid Cooling

Front optional: 120mm radiator

Dimensions

Case (D x W x H) 387mm x 176mm x 300mm
Max. Length Graphics Cards 290mm
Max. CPU Cooler Height 80mm

Dealer Information

Model Number ECB2010R ECB2010G
Color Dynamic Red with Apollish fan Acid Green with Apollish fan
EAN Code 4713157722171 4713157722423
Unit - Gross Weight 3.8 kg
Carton - Gross Weight 5.5 kg
Carton - Dimensions (mm)
 D490 x W360 x H390mm
