Product Introduction

The Revolution SFX power supply series brings Enermax technology to a small form factor. The PSU uses high quality components like Japanese 105°C capacitors and DC-to-DC technology to achieve the 80 PLUS® Gold efficiency. Unlike most other SFX PSU's the Revolution SFX is available with up to 650W. With this wattage it can power even the latest high-end graphics cards making it the best choice for compact gaming systems.

Efficiency

80 PLUS® Gold
Up to 92 percent efficiency at 230V and 20 to 100 percent load. 80 PLUS® Gold certified.
Support of EU Eco-Design Regulations
The Revolution SFX Series helps systems to meet the EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
* only in combination with an ErP Lot 6 2013 ready mainboard

Stability

DC-to-DC Design
The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efficiency, clean output voltages (low ripple & noise) and a perfect voltage regulation at all loads.
Full GPU & CPU Power
Massive 12V rail to power high-performance processors and graphics cards.

Cooling

Compact Cooling Design

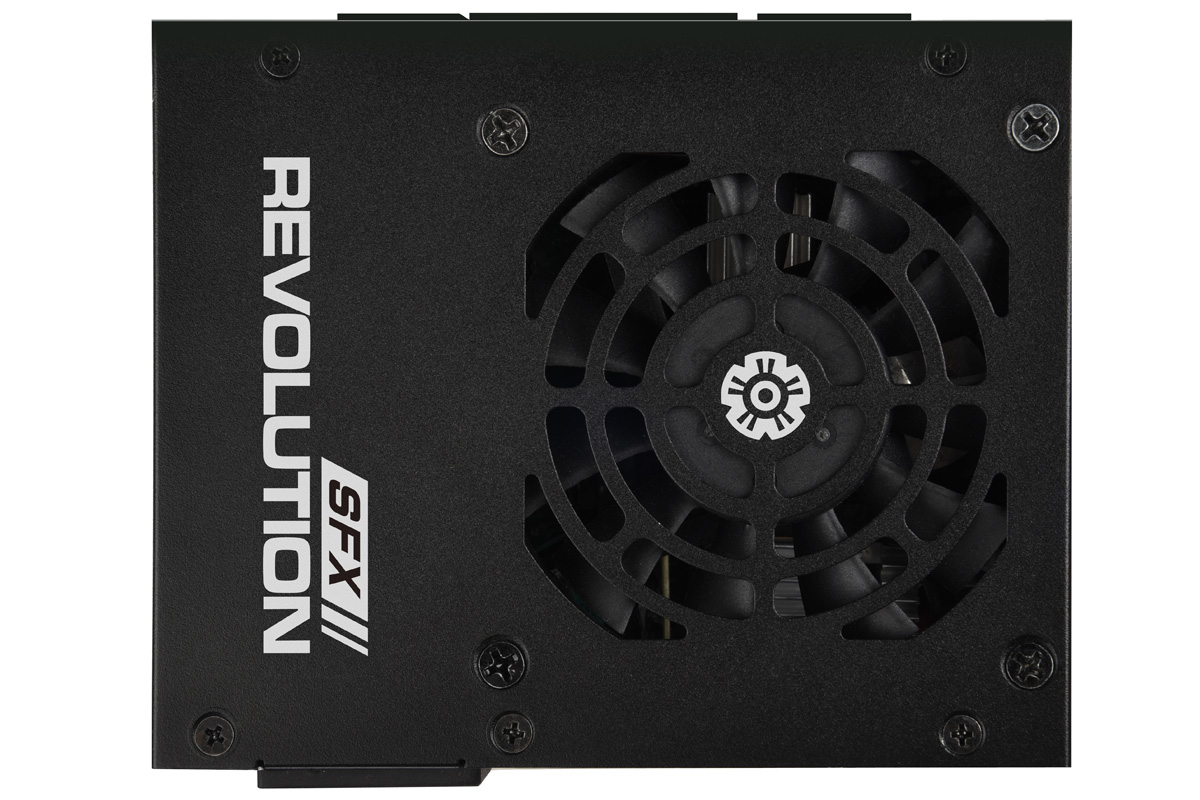

The integrated 8cm fan with long lasting bearing technology ensures efficient and continuously silent cooling within limited space.
Smart Semi-fanless Design
The semi-fanless design enables a completely silent operation below 30% load. Exceeding this limit stats the automated fan control regulating the RPM to to provide the opimal cooling with low noise level.

Connectivity

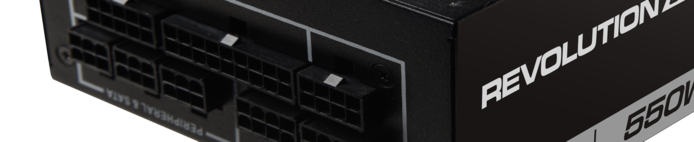

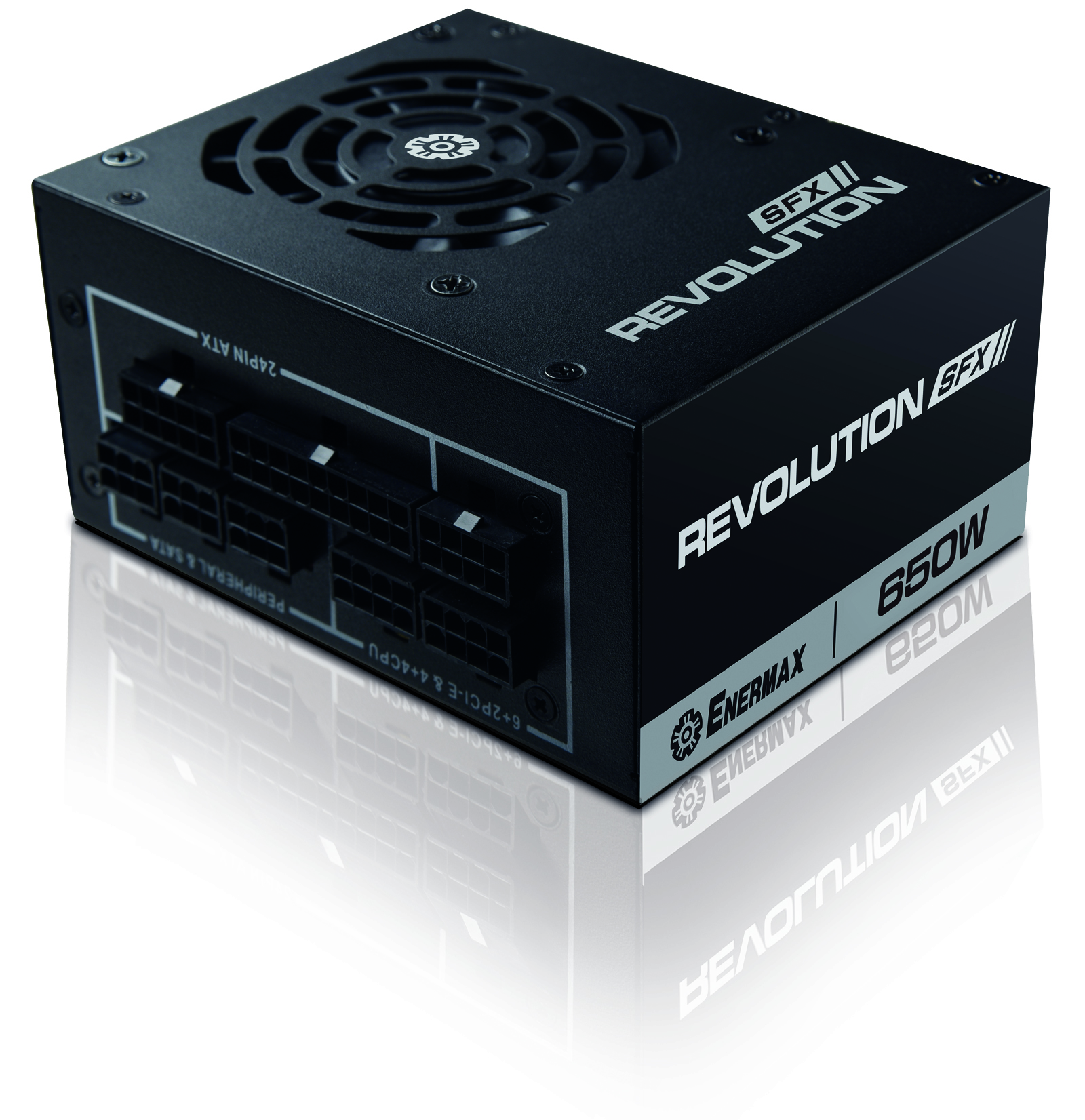

Full-modular Cable Management with flat cables
Completely removable cables for easy installation and cable management.
Multi-GPU Support
Two 6+2P (8P) PCI-E connectors to power the latest high-end graphics cards and multi-GPU systems.

Compatibility

Intel® Skylake™ Ready!
Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.
Intel ATX 12V v2.4 and SFX 12V v3.3
Compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.

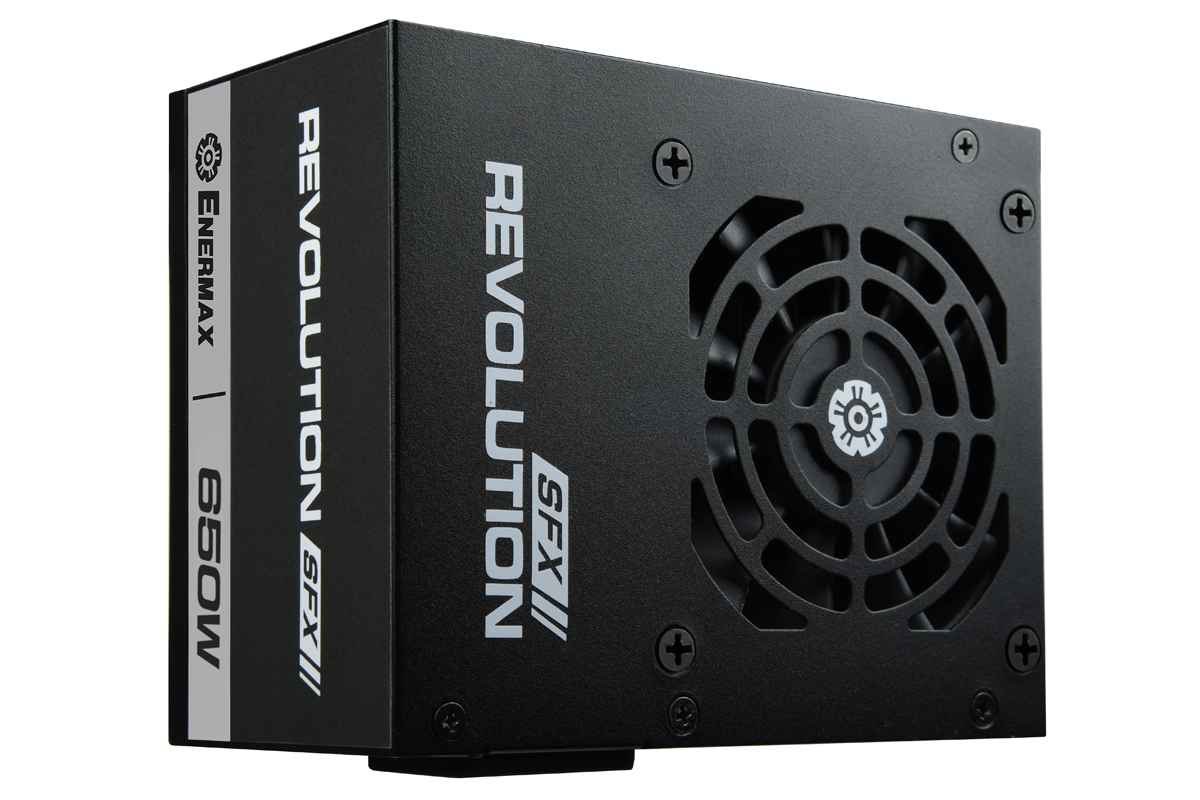

SFX form factor
The SFX form factor (100mm depth) makes Revolution SFX the perfect PSU for compact high-performance systems. Included with the package comes an ATX-Adaptor to install the PSU in larger cases.
Worldwide Compatibility
Automatic 100-240V AC input for global usage and up to 99% active Power Factor Correction (PFC).

Quality and Safety

Durable & High-Quality Components
Enermax applies high-quality components incl. first-class Japanese 105°C electrolytic capacitors for maximum stability and durability.
SafeGuard
The multiple protection circuit shields the power supply and the system from damage in case of short circuit (SCP), over voltage (OVP), under voltage (UVP), over current (OCP 3,3V/5V), over power (OPP), over temperature (OTP) as well as surges and inrush current (SIP).
5 Years Manufacturer Warranty

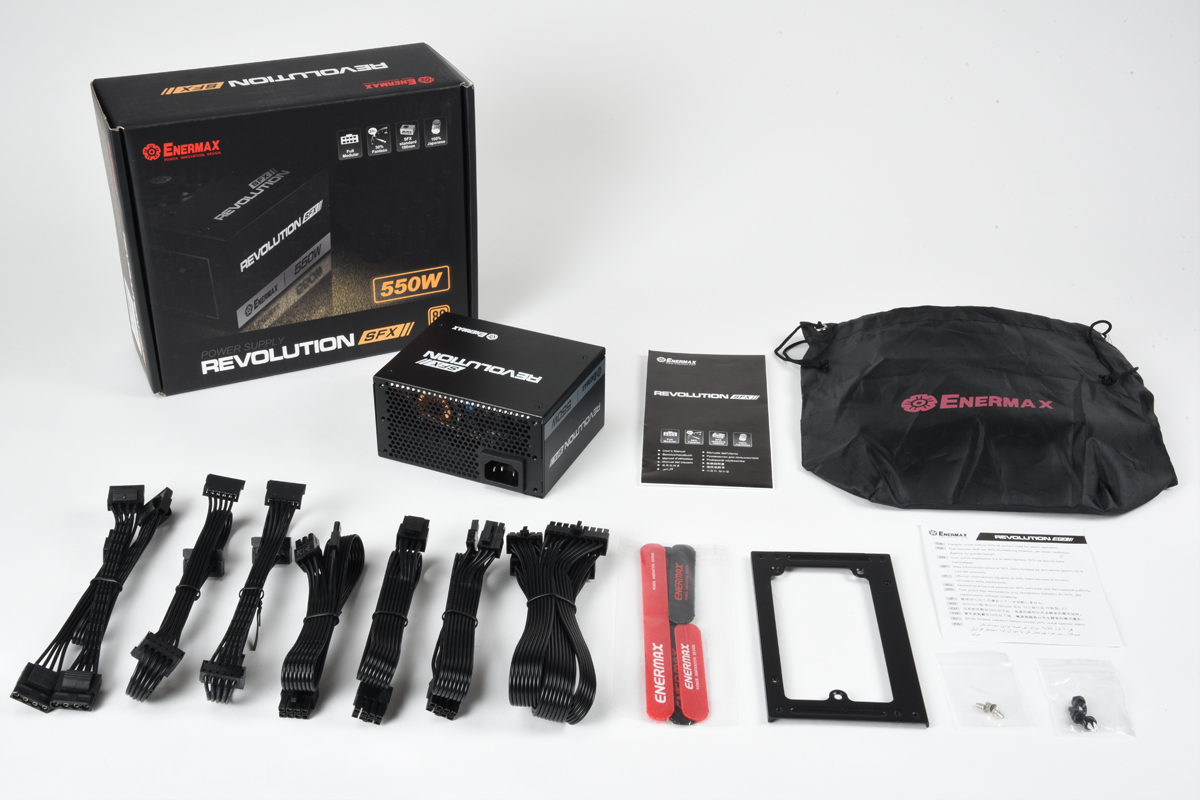

Included in the delivery

Revolution SFX power supply
Enermax cable ties
AC Cord
Modular cables
4 screws
ATX bracket/mounting adaptor
User Manual

Information for Dealer

Model	ERV550SWT	ERV650SWT
Power Supply Dimensions (D x W x H)	100 x 125 x 63.5mm	100 x 125 x 63.5mm
Power Supply Weight	1.0kg	1.2kg
Master Carton - Net Weight	8kg	9.6kg
Master Carton - Gross Weight	8.8kg	10.4kg
Master Carton - Dimensions (D x W x H)	430 x 386 x 265mm	430 x 386 x 265mm
Pieces / Master Carton	8	8
EAN Code	4713157722614	4713157722621

Technical Data

Model / DC Output	+3.3V	+5V	+12V	-12V	5Vsb	Total Power
ERV550SWT	18A	15A	45.8A	0.3A	3A	550W
	80W		549.6W	3.6W	15W
ERV650SWT	18A	15A	54A	0.3A	3A	650W
	90W		648W	3.6W	15W

Efficiency & Noise Level

	10% Load @ 230V		20% Load @ 230V		50% Load @ 230V		100% Load @ 230V
	Eff.	dB(A)	Eff.	dB(A)	Eff.	dB(A)	Eff.	PF	dB(A)
ERV550SWT	86.4%	0.0	89.3%	0.0	92.0%	16.7	90.3%	0.99	33.4
ERV650SWT	84.8%	0.0	90.3%	0.0	92.1%	19.0	90.2%	0.99	35.9

* Eff. = Efficiency | PF = Power Factor

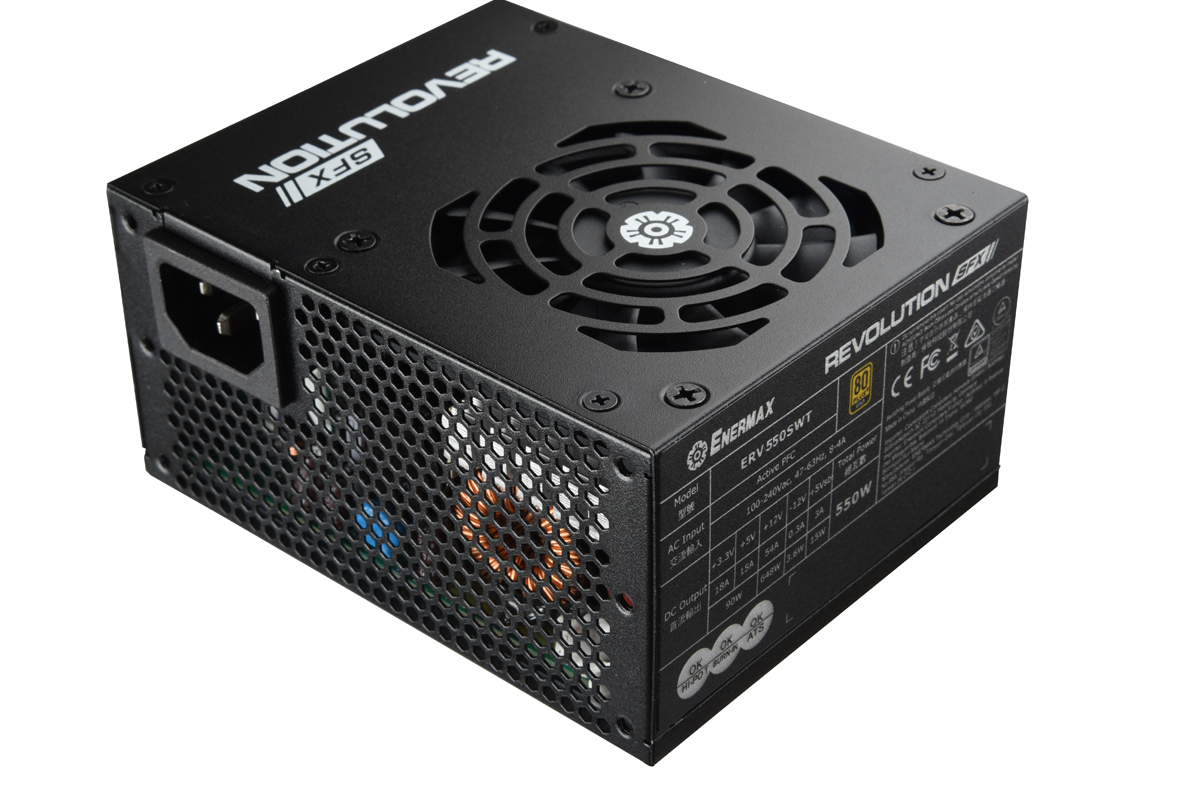

SFX Form Factor

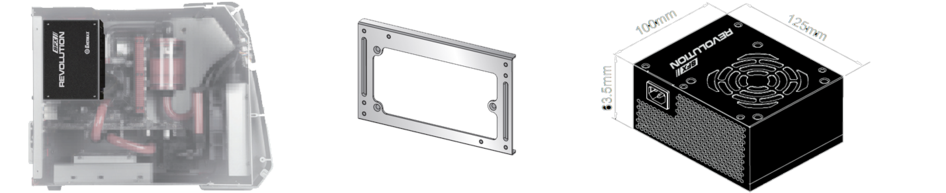

The SFX formfactor was develpoed to provide a standard PSU size for small systems. The Revolution SFX keeps this standard with the size of 100mm width, 125mm depth and 63.5mm height. Included in the delivery Enermax provides an ATX adaptor for installing the PSU in larger cases.

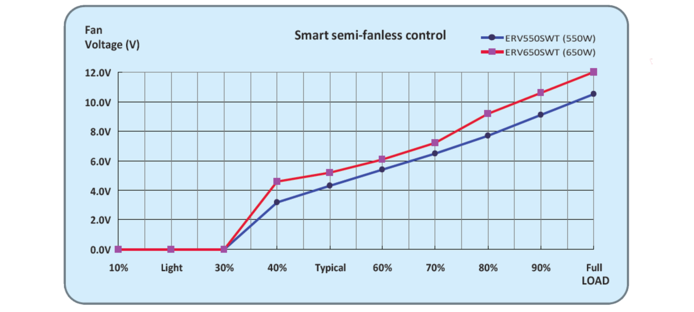

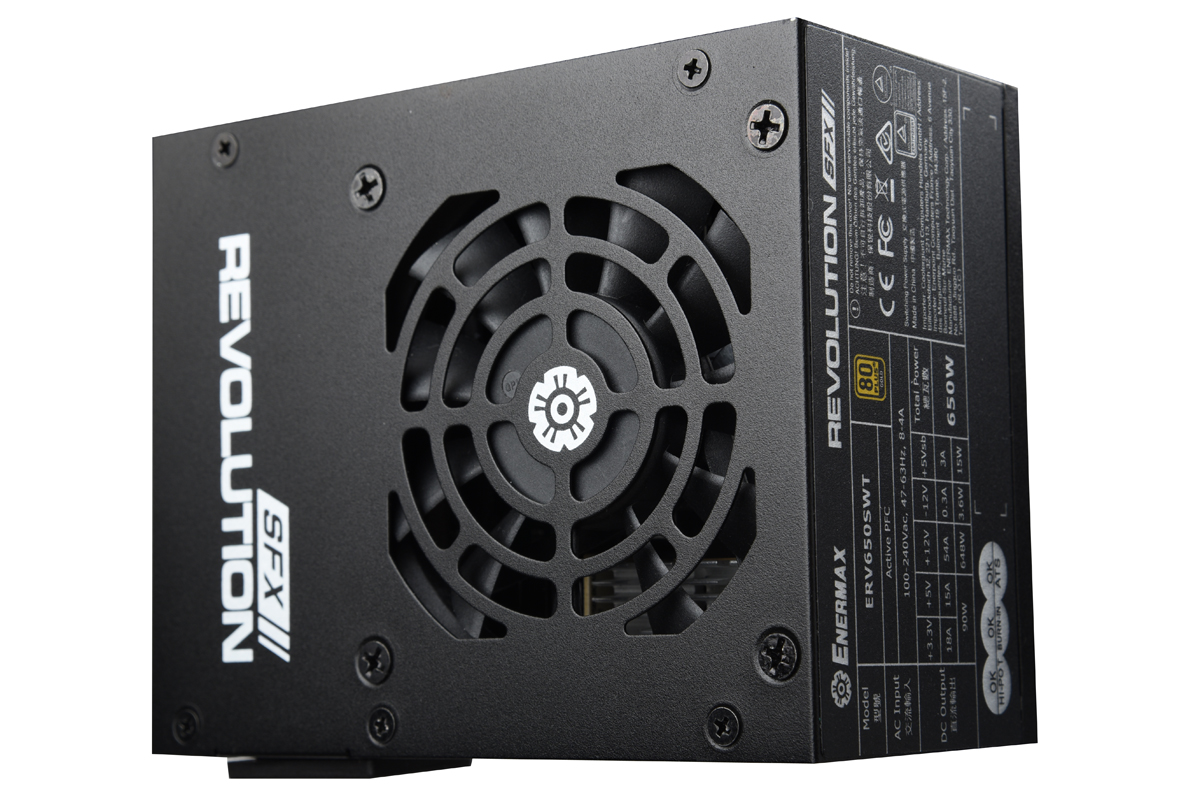

Semi-fanless Design

The semi-fanless design allows a completely silent 0 dB(A) operation up to 30% load providing optimal conditions for silent and multi media systems. Above 30% load the automated fan control starts, keeping the PSU cool and quiet. Enermax uses a 80mm fan with lasting bearing technology for the Revolution SFX series to ensure the best cooling within limited space.

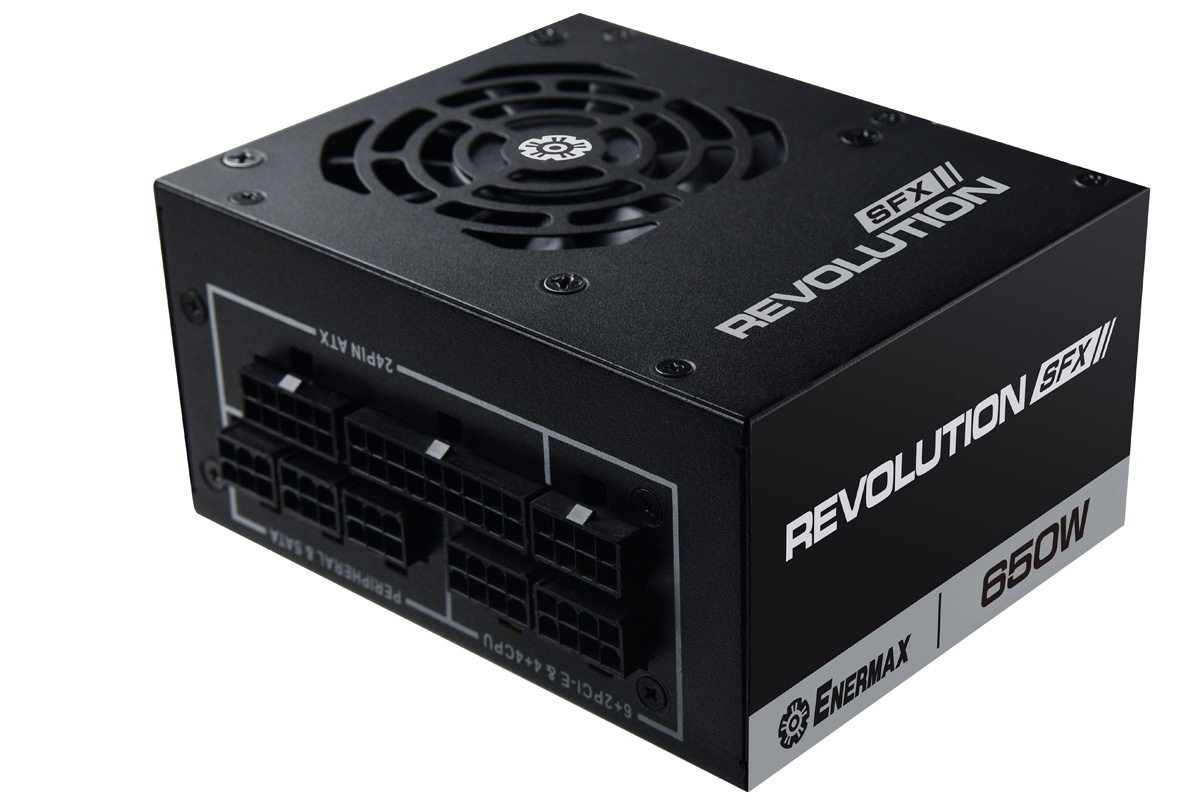

Full-modular Cable Mangement

The Revolution SFX is equipted with a fully modular cable management ensures easy mounting within small m-ATX cases. The black flat cables not only save space but also improve the air flow with less surface.

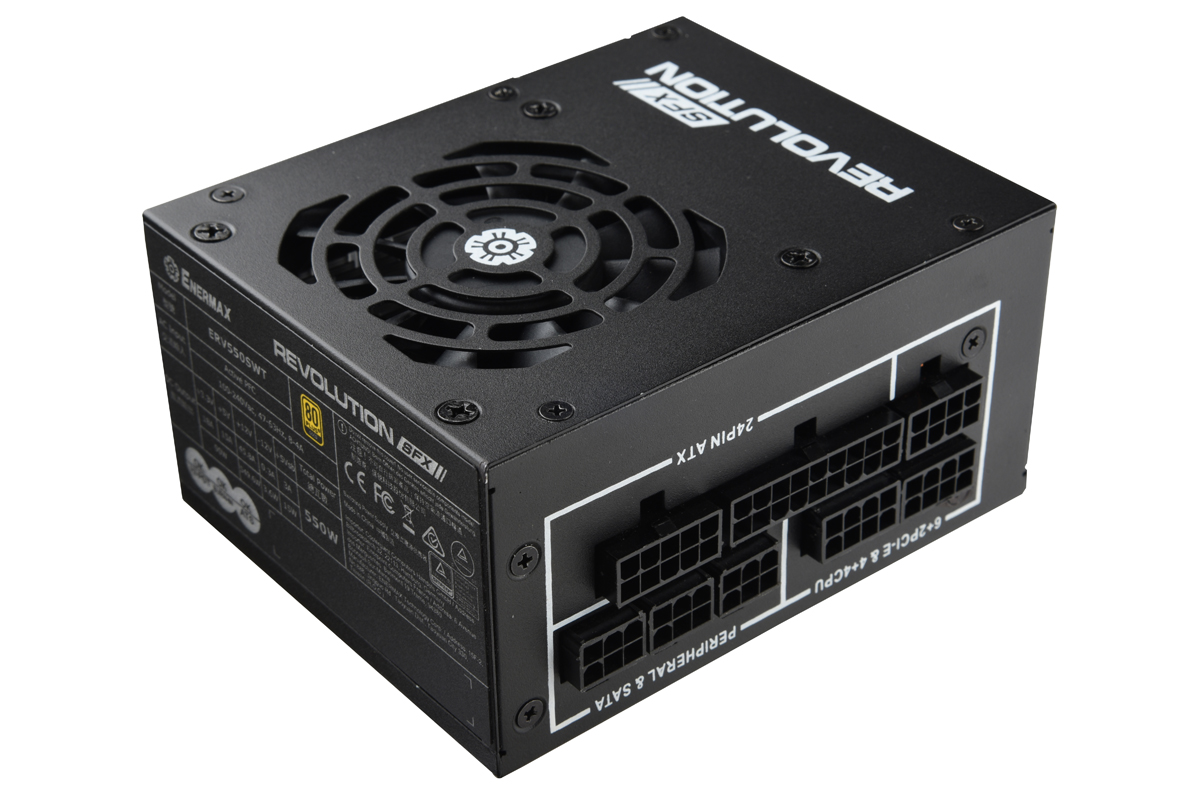

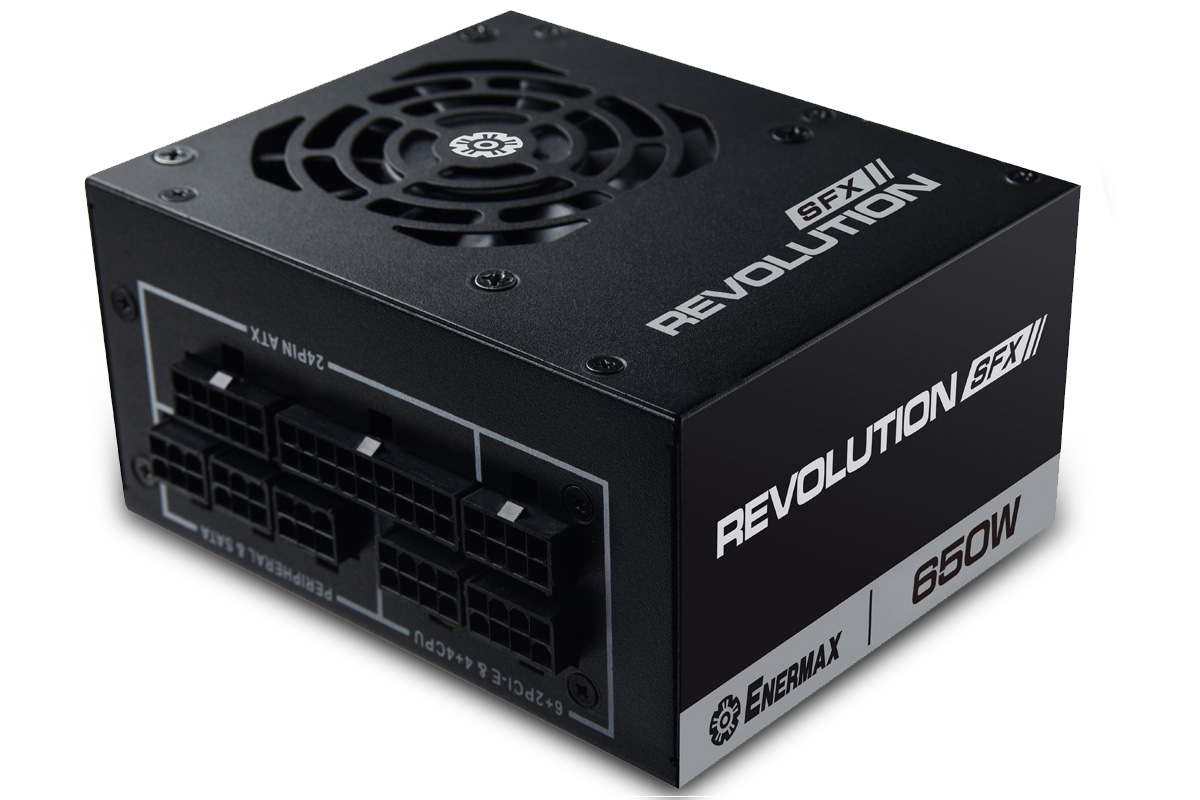

Connectors

	ERV550SWT	ERV650SWT
Modular Connectors
Mainboard 24P	1x	1x
CPU 4+4P (8P)	1x	1x
SATA	6x	6x
4P Molex	4x	4x
PCI-E 2.0 6+2P (8P)	2x	2x

Modular Cables

		Revolution SFX Series [550W and 650W]
Modular Connectors
Mainboard 24-Pin		1x (300mm)
CPU 4+4-Pin (8-Pin)		1x (400mm)
PCI-E 6+2-Pin (8-Pin)		2x (400mm)
SATA		6x (200/ 2x150mm)
Molex 4-Pin		4x (200mm/ 3x150mm)
