The Enermax Platimax 1700 Watt is the royal class power supply. It meets the highest demands on performance and quality to power strong gaming machines, high-end workstations and mining machines. The manufacturer relies on long-life quality components and a complex, highly efficient technical design. In this way, energy losses are reduced to an absolute minimum: Platimax 1700 Watt achieves a peak efficiency of up to 93 percent in the 230-volt network. The power supply convinces with an almost perfect voltage regulation with clean output voltages (extremely low ripple noise) over the entire load range from 0 to 100%. Up to 99% of the total power can be generated via the central 12-volt voltage rails - an ideal prerequisite for the supply of powerful multi-GPU systems. The six 12-volt rails have a separate overcurrent protection (OCP). In total, Platimax 1700 Watt offers seven different protection mechanisms for the protection of valuable hardware (OCP, OVP, UVP, OTP, OPP, SCP and SIP).
The power supply is specified for 24/7 continuous operation at an operating temperature of up to 40 ° C. The Intelligent SpeedGuard fan control provides effective and quiet cooling with a 139mm fan. A fully modular cable management offers a wide range of connection options and the greatest possible flexibility in system installation or expansion.

• 93% Efficiency
  Platimax 1700 Watt is designed for 230 volt networks and delivers an efficiency of 90 to 93 percent form 20 to 100 percent load.
• FMQ Design
  High-performance power supply topology to use all magnetic quadrants of the main transformer and to achieve maximum efficiency and rock stable output voltage.
• ErP Lot 6 2013 ready!
  Help systems to meet EU eco-design directive ErP/EuP Lot 6 (<0.5W in standby mode*) due to improved, high-efficient 5V standby (+5Vsb) circuitry.
  * only in combination with an ErP Lot 6 ready Mainboard


• Copper Bridge Array
  Innovative and patented transmission technology for direct voltage transmission to reduce the wire-resistance and to increase the efficiency. Optimized air circulation due to clear and spacious PCB design.
• Multi Rail Design
  Stable and safe power supply thanks to up to six high-performance and massive 12V rails each with separated over current protection (OCP). Extremely low ripple noise.
• Full Gaming Power
  Min. two 6+2P (8P) PCI-E connectors to power the latest high-end graphics cards and multi-GPU systems (MGPU & SLI™).

• Extreme Density Transformer
  Innovative design boosts transformer core utilization rate and reduces overall dimension.



• Flat Modular Cables
  Simplify the cable routing and enhance the airflow inside the case.

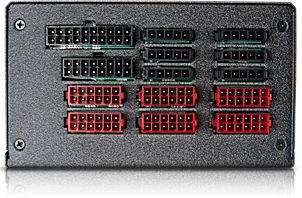

• Full-modular Cable Management
  Cables can be completely removed in order to make the system installation and cable routing more comfortable and to improve the air circulation inside the case.
• Fit4Server
  Compliant with SSI PSDG for the new Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and downward compatible with EPS12V v2.92, v2.8.

• Intel® Skylake™ Ready!
  Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.

• Intel ATX12V v2.4
  Compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.

• ENERGY STAR 5.0 ready!
  Support computer system to meet ENERGY STAR 5.0 standard.


• Advanced Cooling Performance*
  Integrated 13.9cm fan with 9 blades and long lasting bearing technology ensures optimized cooling of high performance components.

• SpeedGuard
  Path-breaking and leading fan speed control to ensure effective and silent cooling.

• HeatGuard
  Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.


• High-quality Electrolytic Capacitors
  Highest Enermax quality standards for leading stability and maximum durability.

• SafeGuard
  Industry-leading multiple protection circuitry of OCP, OVP, DC UVP, OPP, OTP, SCP & SIP.

• Non-stop @ 40°C
  Non-Stop industrial class performance at 40°C ambient.
• CordGuard
  Fixing the AC cord tightly to avoid accidental shutdowns of your PC.


• Dimensions (W x H x D)
  150 x 86 x 180mm

• Warranty
  5 years vendor warranty


• Power Supply Platimax 1700W

• Modular Cables

• Cable bag

• CordGuard

• 4 screws

• Cable Ties

• User manual


* Peak power may last up to 60 seconds.

The Platimax series complies with the requirements of the latest EU regulation for computer systems No. 617/2013 (valid from 1st of July 2014).

* Eff. = Efficiency | PF = Power Factor

All current options for further improvement of the PSU DC stage have been exhausted. For this reason, PSU manufacturers focus on the development of more efficient AC technologies. With the so-called “Dynamic Hybrid Transformer Topology” Enermax made the breakthrough: It is based on three pathbreaking innovations:

Dynamic Resonant Transformer Array Enermax implemented a so-called Dynamic Resonant Transformer Array. It is based on the high-efficient resonant topology which is used for example in LCD monitors. The most noticeable modification on PCB is an additional resonant choke.

Dynamic Voltage Boosting Transforming Initially, the capacitors are charged with alternating current (AC) from the wall socket. They ensure the continuous AC supply of the transformers according to the DC consumption of the PC system. Up to now, capacitors have been charged statically, so that too much power got lost at low loads. The capacitors of the Platimax series are charged with dynamic voltages – according to the required system power. That way, Enermax is able to increase the efficiency significantly.

Dynamic Frequencies Transforming Transformers step the alternating current up or down. During this operation a part of the input power gets lost. Enermax managed to optimize this process by the use of dynamic frequencies. The transformers work with a wider frequency range according to the variable power consumption of system components. That way, Enermax is able to reduce energy loses radically.
