ENERMAX.CO.UK - Maxpro

Models

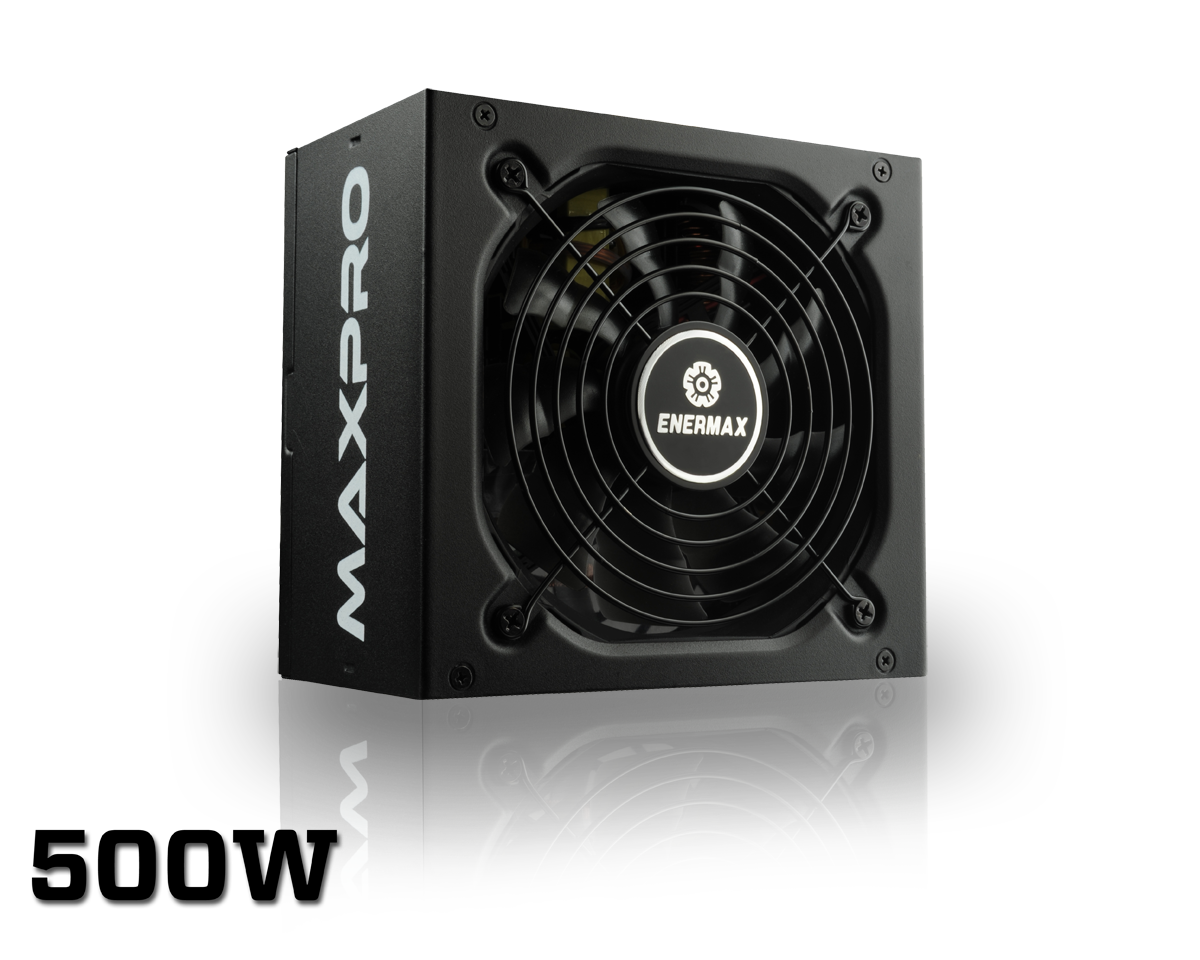

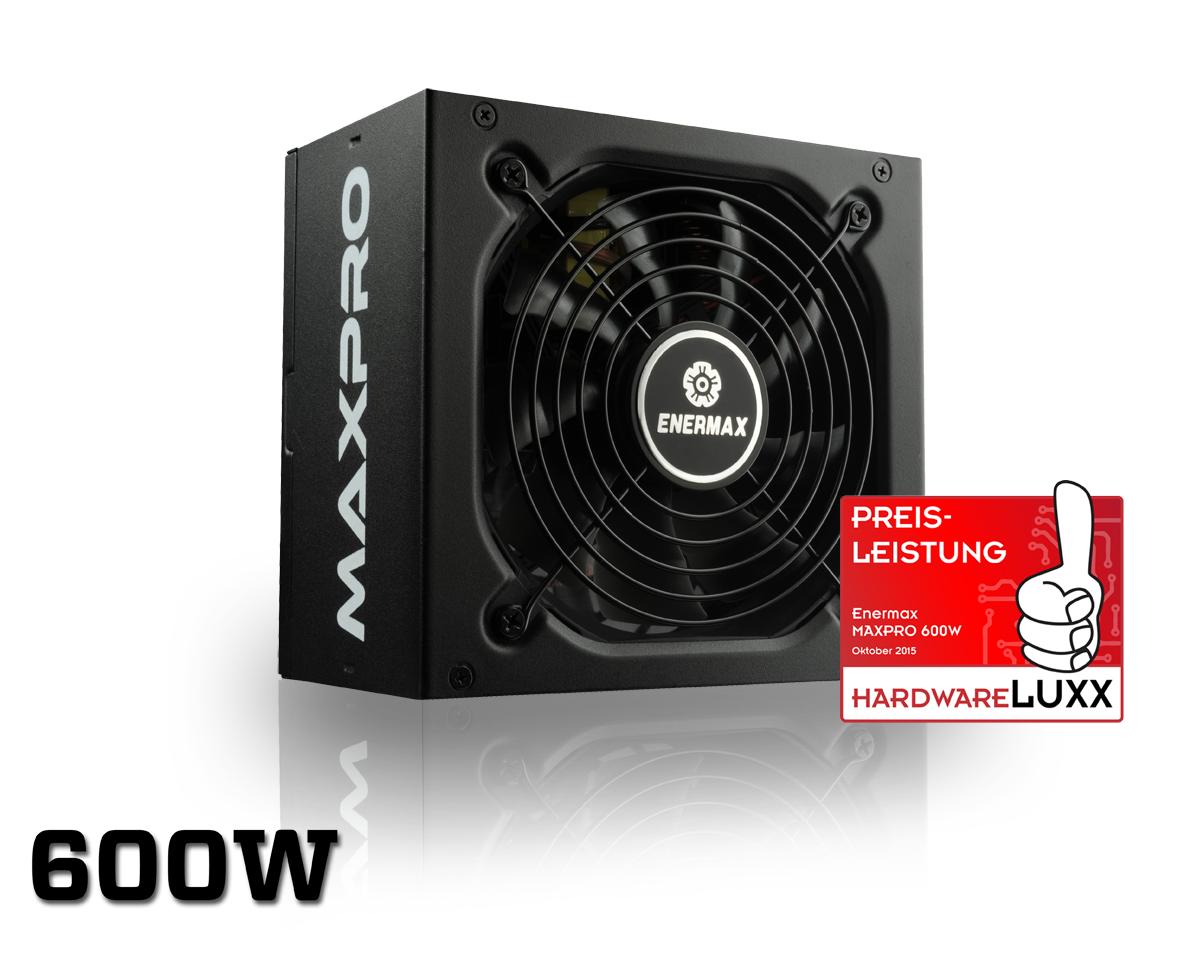

Maxpro 400W EMP400AGT Non modular	Maxpro 500W EMP500AGT Non modular	Maxpro 600W EMP600AGT Non modular

Maxpro 700W EMP700AGT Non modular

Product Introduction

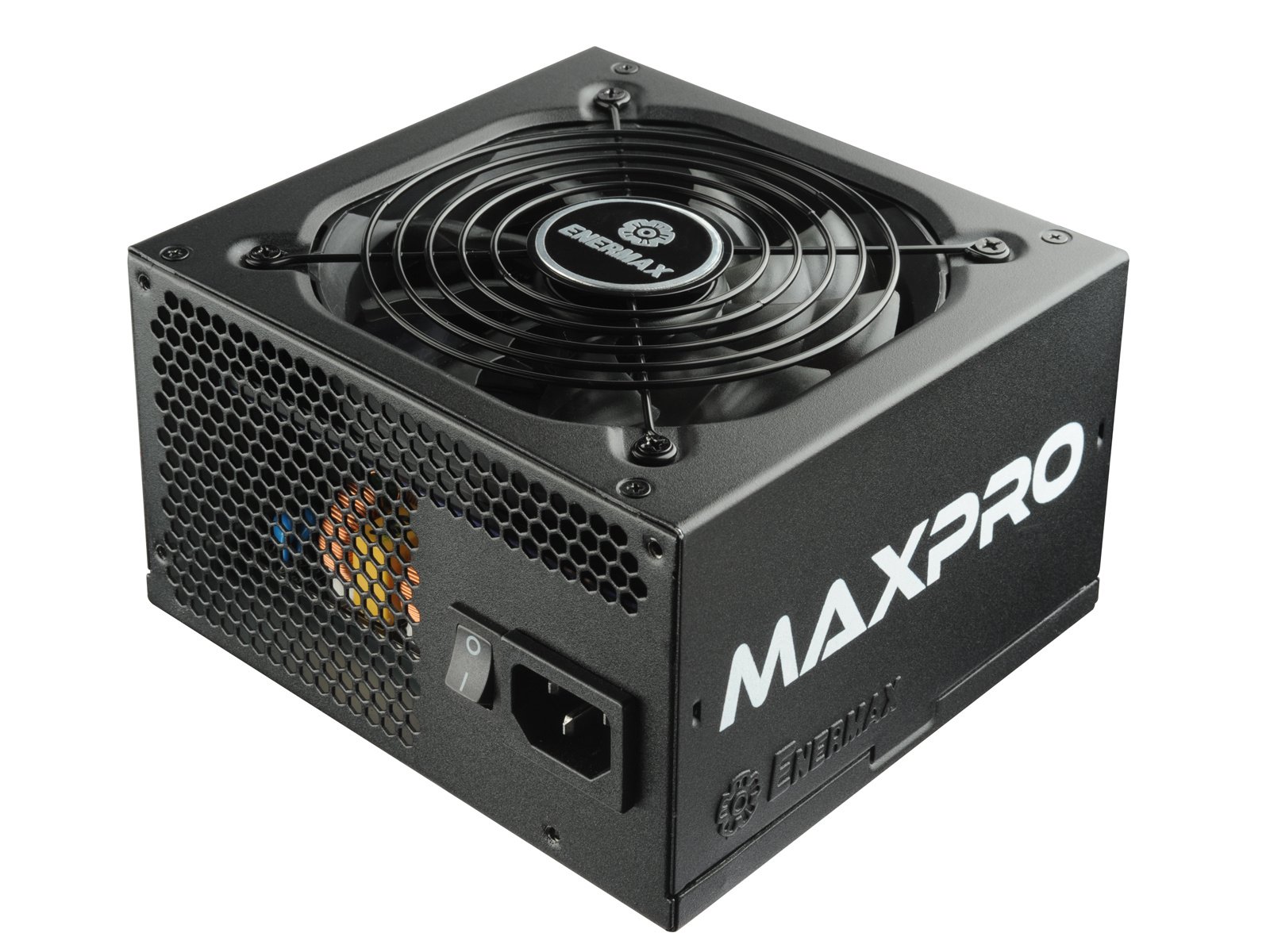

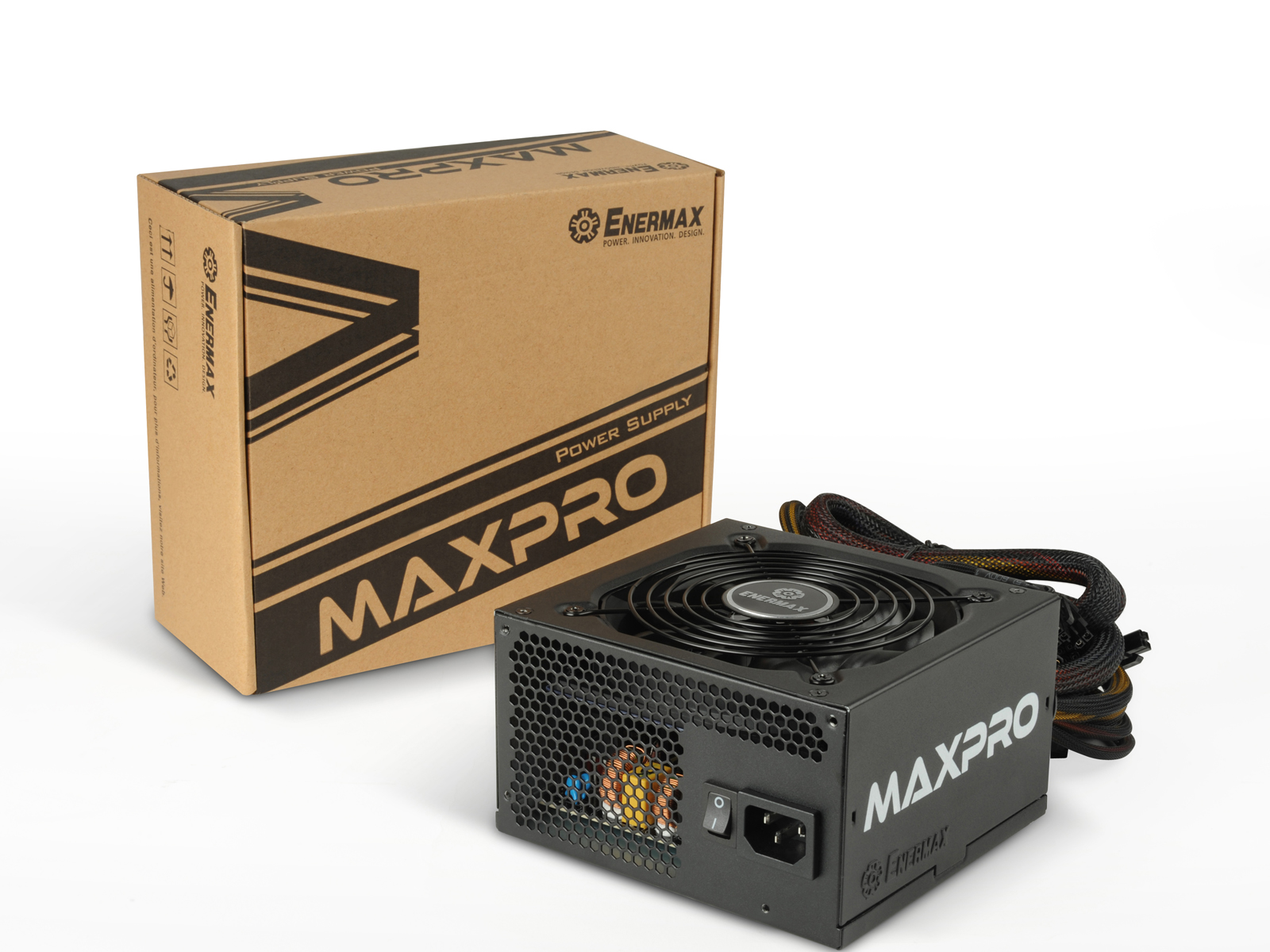

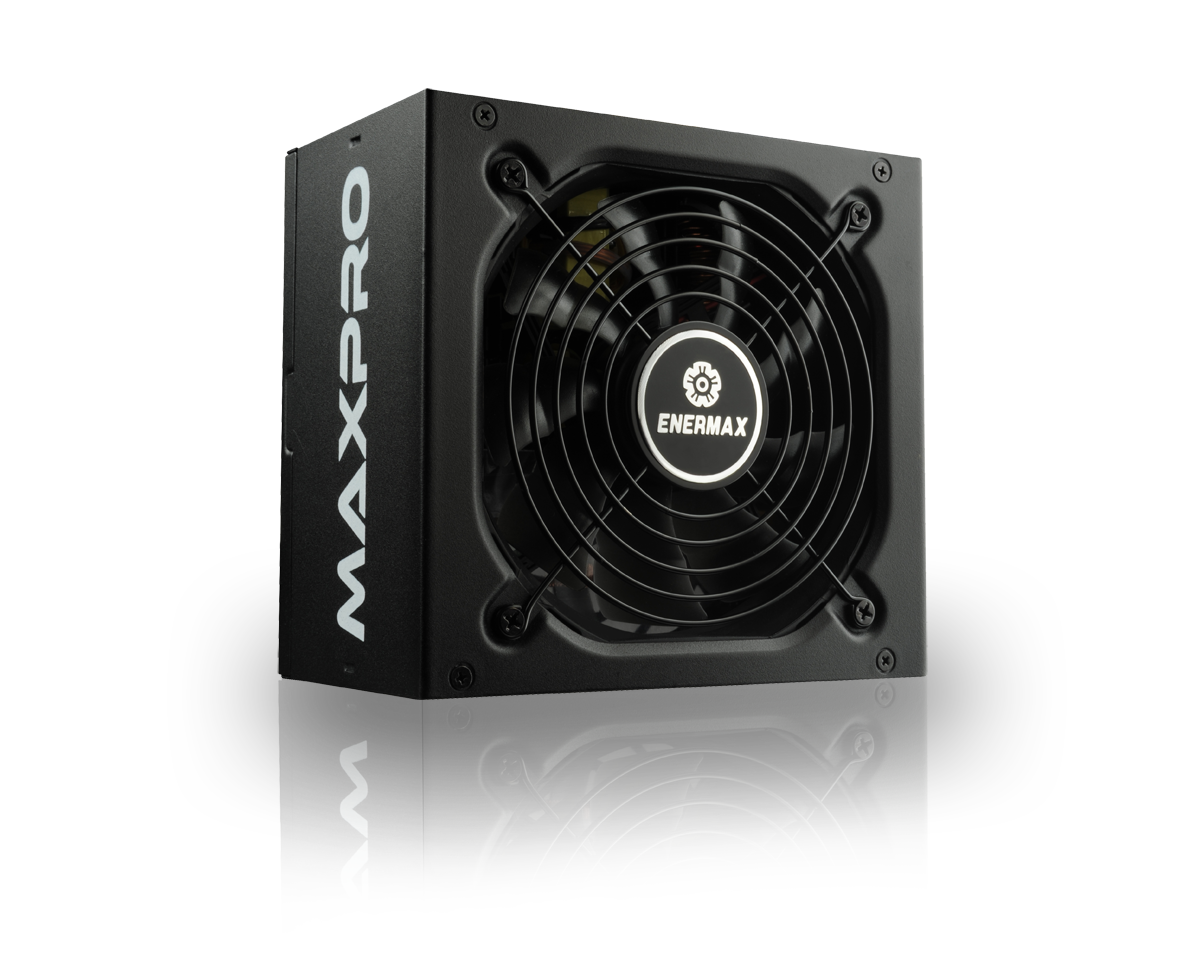

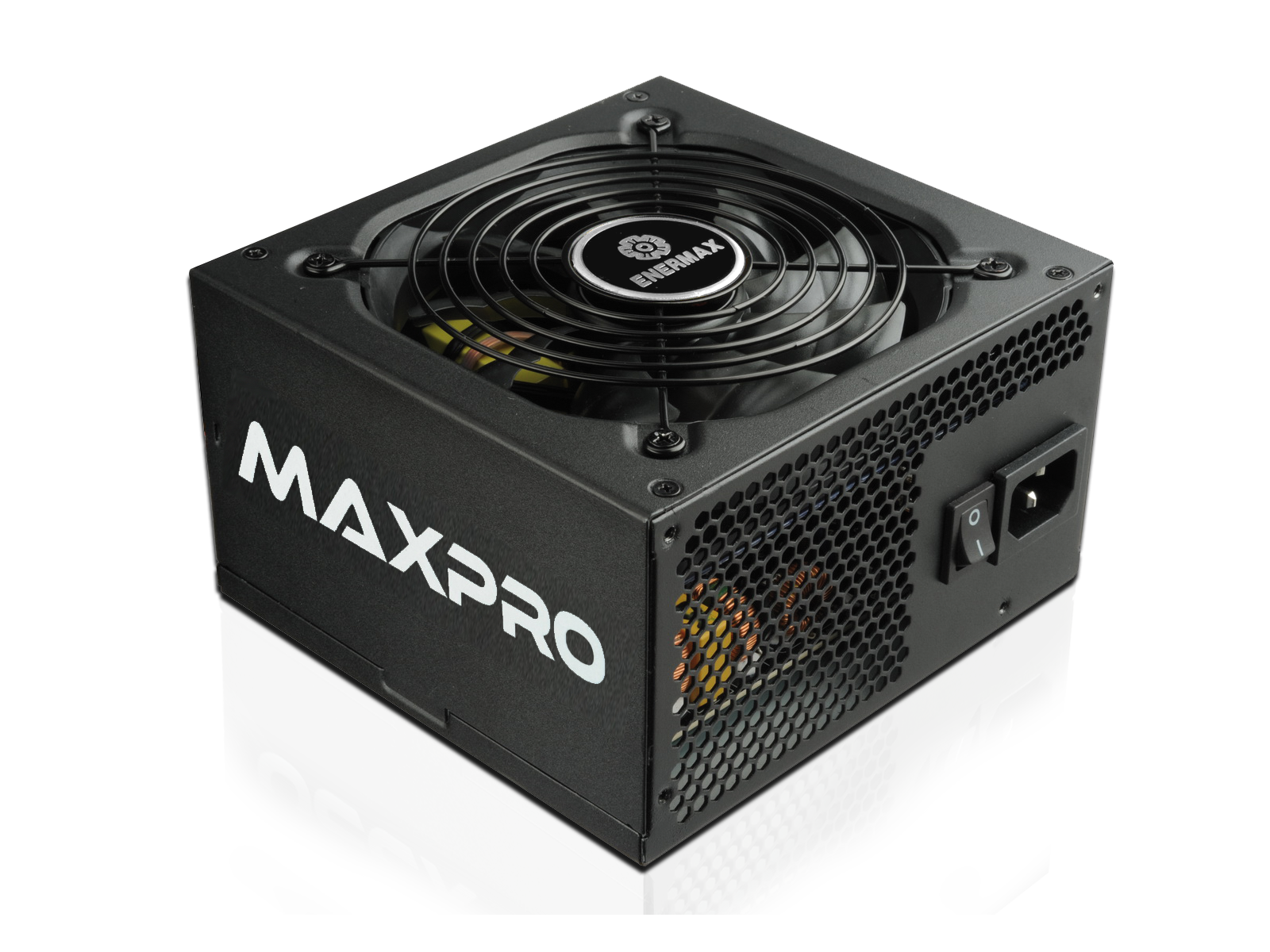

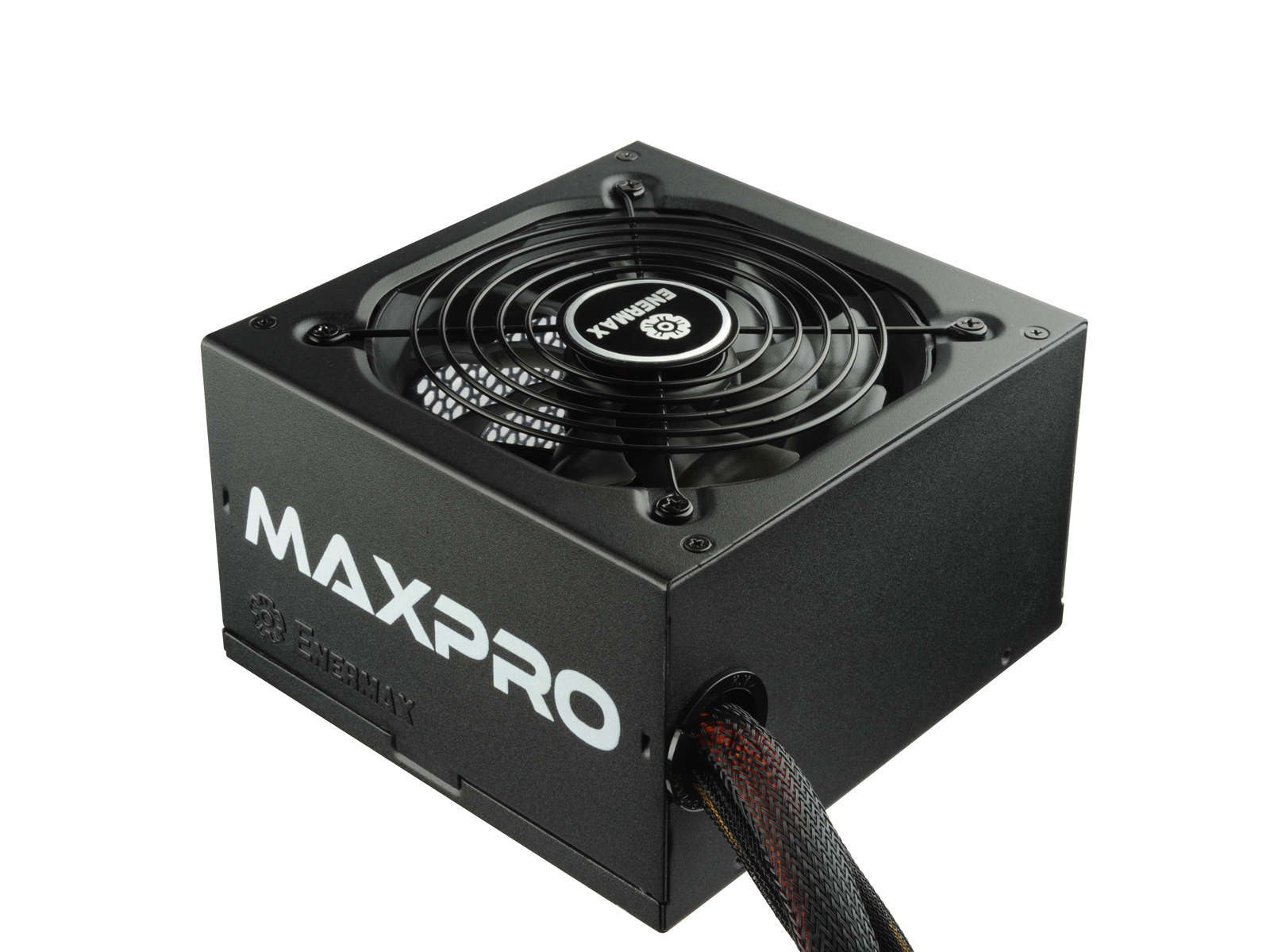

The Enermax MAXPRO series is one of Enermax's longrunner power supplies. Developed specifically for the European market, MAXPRO is characterized by low noise and efficient operation. With 87% peak efficiency (80 PLUS® 230V EU certified) and a standby consumption of less than 0.5 watts, the power supply meets the latest eco-design regulations of the European Union. The 120 mm fan with the patented Twister Bearing ensures quiet and efficient cooling. The integrated HeatGuard technology keeps the PSU fan running for a few second after shutdown to dissipate the remaining system heat, the SafeGuard multiple safety system protects the power supply and system from overcurrent, overvoltage, short circuit, etc. The MaxPro power supplies are true longrunners and are designed for 24-hour continuous operation at an ambient temperature of 40 ° C.

Efficiency

80 PLUS® 230V EU
Efficient operation with 87% peak efficiency at 230VAC. MAXPRO complies with the international energy-saving certificate 80 PLUS® 230V EU.
Support of EU Eco-Design Regulations
The MaxPro Series helps systems to meet the EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load at 230V.
* only in combination with an ErP Lot 6 2013 ready mainboard

Cooling

Air Cooling by Enermax

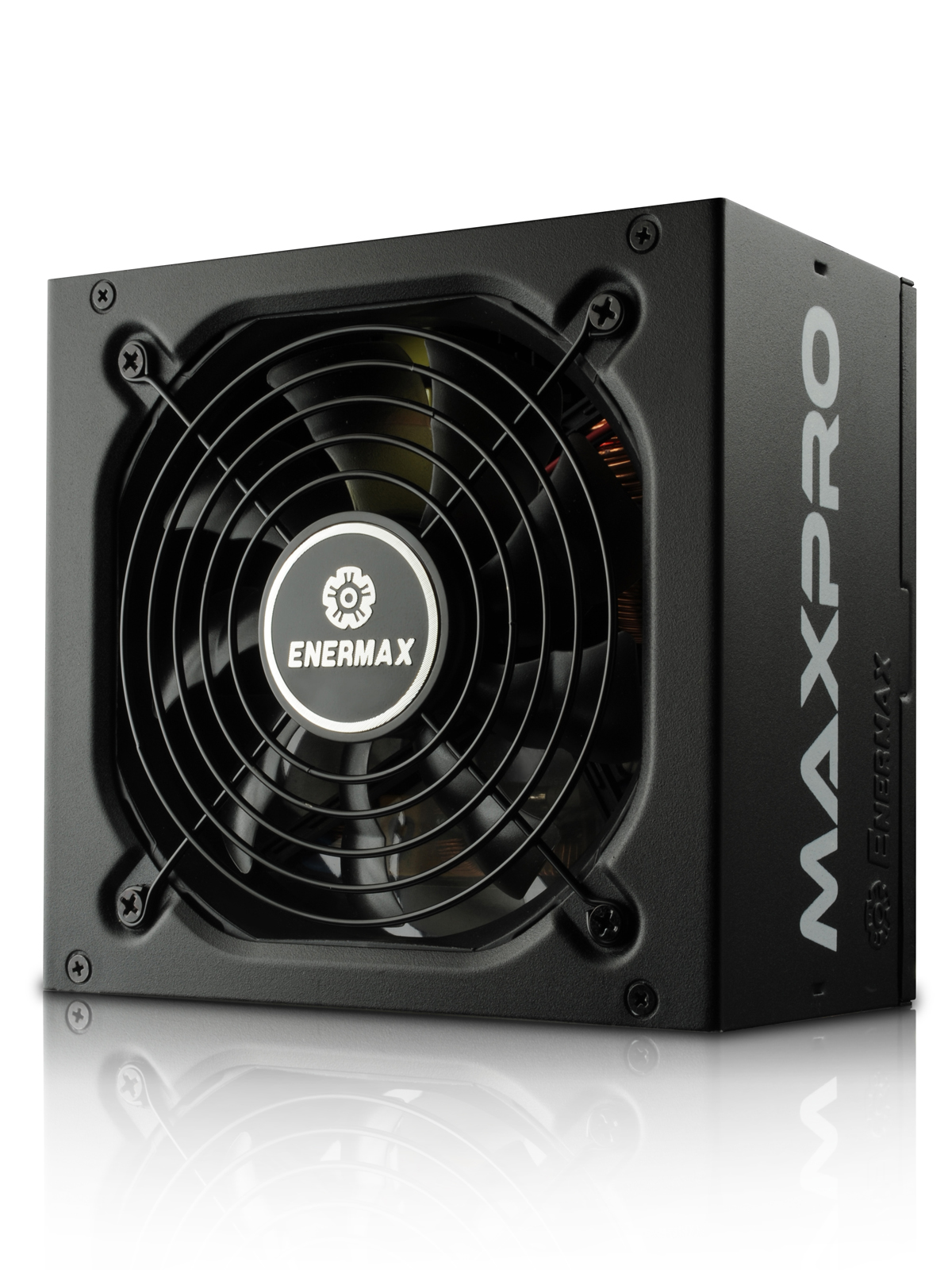

Silent operation with durable 12cm Twister bearing fan. The patented bearing technology from Enermax and the innovative Batwing fan blades ensure the best balance between cooling performance and noise generation.
AirGuard
The patented air-inlet with optimal aero-dynamical design reduces noisy air turbulences.
HeatGuard
The HeatGuard function keeps the PSU fan running for 30-60 seconds after the system shutdown in order to dissipate the remaining system heat and prolong the system’s lifetime.

Compatibility

Intel® ATX12V v2.3
Compliant with the desktop power supply design guide Intel® ATX12 v2.3. Full support of the most common Intel® and AMD® processors.
Intel® Skylake™ Ready!
Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.
Full Gaming Power
Two or four 6+2(8)P PCI-Express connectors to power the latest high-end graphics cards and multi-GPU systems (SLI®/MGPU).

Safety & Quality

Long-Runner: 24/7 @ 40°C
Non-stop industrial class performance at 40°C/104°F ambient.
Durable & High-Quality Components
Enermax applies high-quality components including a first-class Japanese 105°C electrolytic main capacitor for maximum durability and stability.
SafeGuard
The multiple protection circuit shields the power supply and the system from damage in case of short circuit (SCP), over voltage (OVP), over current (OCP), over power (OPP) as well as surges and inrush current (SIP).
3 Years Manufacturer Warranty

Dealer Information

Model	EMP400AGT	EMP500AGT	EMP600AGT	EMP700AGT
Power Supply Dimensions (D x W x H)	140 x 150 x 86 mm	140 x 150 x 86 mm	140 x 150 x 86mm	140 x 150 x 86mm
Power Supply Weight	1.5 kg	1.5 kg	1.8 kg	1.8 kg
Master Carton - Net Weight	15.2 kg	15.2 kg	15.6 kg	16.4 kg
Master Carton - Gross Weight	16.4 kg	16.5 kg	16.8 kg	17.5 kg
Master Carton - Dimensions (D x W x H)	418 x 428 x 255 mm	418 x 428 x 255 mm	418 x 428 x 255 mm	418 x 428 x 255mm
Pieces / Master Carton	8	8	8	8
EAN Code	4713157721730	4713157721747	4713157721792	4713157721808

For Russian market please note: Не для бытового применения.

Specifications

Model / DC Output	+3.3V	+5V	+12V	-12V	5Vsb	Peak Power	Total Power
EMP400AGT	16A	16A	30A	0.3A	2.5A	440W*	400W
	100W		360W	3.6W	12.5W
EMP500AGT	18A	18A	38A	0.3A	2.5A	550W*	500W
	110W		456W	3.6W	12.5W
EMP600AGT	20A	20A	46A	0.3A	2.5A	660W*	600W
	120W		552W	3.6W	12.5W
EMP700AGT	22A	22A	54A	0.3A	2.5A	770W*	700W
	130W		648W	3.6W	12.5W

* Peak power may last up to 60 seconds.

Efficiency & Noise Level

The MAXPRO series complies with the requirements of the latest EU regulation for computer systems No. 617/2013 (valid since 1st of July 2014).

	10% load @ 230V		20% load @ 230V		50% load @ 230V		100% load @ 230V
	Eff.	dB(A)	Eff.	dB(A)	Eff.	dB(A)	Eff.	PF	dB(A)
EMP400AGT	78.32%	15.2	84.63%	15.2	86.91%	15.2	84.30%	0.99	19.8
EMP500AGT	81.16%	15.2	86.39%	15.2	87.55%	15.2	84.08%	0.99	21.2
EMP600AGT	82.56%	15.2	86.95%	15.2	87.59%	15.2	83.86%	0.99	22.4
EMP700AGT	83.10%	15.8	87.53%	15.8	87.85%	15.8	83.61%	0.99	24.5

* Eff. = Efficiency | PF = Power Factor

Certifications & Standards

Cables & Connectors

	EMP400AGT	EMP500AGT	EMP600AGT	EMP700AGT
Mainboard 24-Pin	1x (50cm)	1x (50cm)	1x (50cm)	1x (50cm)
CPU 4+4-Pin (8-Pin)	1x (60cm)	1x (60cm)	1x (60cm)	1x (60cm)
PCI-E 2.0 6+2-Pin (8-Pin)	2x (45/60cm)	2x (45/60cm)	2x (45/60cm)	4x (45/60cm)
SATA	5x	5x	6x	8x
4-Pin Molex	4x	4x	4x	4x
FDD	1x	1x	1x	1x

Advice

The safety current is 6A per single DC wire.

Please be noted that overloading could cause the wire or connector to meltdown and void the warranty. You can avoid this by distributing the load to various cables/connectors.

If you have any questions or doubts how to connect your power supply properly, please do not hesitate to get in contact with our technical support.
