ENERMAX.CO.UK - Magma Advance

UCMAA12A | Magma Advance 12cm

Shift Speed Control (SSC)
Multi-purpose fan for easy customisation according to the system requirements. With a small switch at the back, the peak speed can be changed in three steps: Ultra Silent Mode (1,000 RPM) / Silent Mode (1,500 RPM) / Performance Mode (1,800 RPM).
For Extreme Conditions up to 85°C
High-quality and heat-resistant components allow for min. 100,000 hours cooling performance even at extreme temperatures of up to 85°C.
Twister Bearing
Smooth and persistent silent thanks to patented Twister Bearing Technology (min. 100,000 hours MTBF).
Batwing Blades
Powerful cooling due to Batwing blades providing up to 20% higher air flow.
Effective vibration reduction
Four isolator mounts reduce vibrations and make the fan installation easier.
Click Mechanism
Detachable blades for easy cleaning from dust.
Warranty
2 years

Dimensions (mm)	W120 x H120 x D25
Speed Adjust	Shift Speed Control
Bearing Technology	patented Twister Bearing Technology
Frame	heat-resistant plastic frame
Fan Blade Design	Batwing
Number of Blades	9
	Ultra Silent Mode	Silent Mode	Performance Mode
Fan Speed (RPM)	1,000	1,500	1,800
Air Flow (m³/h)	80.99	117.49	141.07
Air Flow (CFM)	47.67	69.15	83.03
Static Pressure (mm-H₂O)	0.880	1.400	2.016
Noise Level (dB(A))	13	18	20
Input Power (W)	1.44	1.8	2.4
Input Current (A)	0.12	0.15	0.20
Rated Voltage (V)	12	12	12
MTBF	100,000 hours
Connector	3 pin
Accessory	3-to-4-pin adaptor, 4x isolator mounts

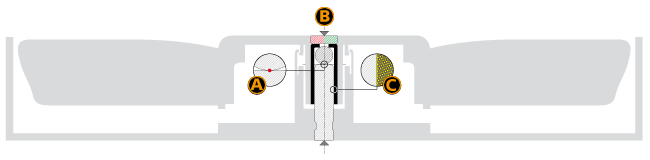

Minimal contact area
For an effective noise reduction

Rotor with integrated magnet
For a frictionless and smooth motion

Self-lubricating bearing sleeve
Abrasion protection for a longer lifetime

	Twister Bearing Technology (patented)
	Persistent low noise level
	Longer life: up to 100.000 hours MTBF
	Magnetized steel ball
	Self-lubricating nano bearing
	Coils
	Flexible magnets inside the rotor
