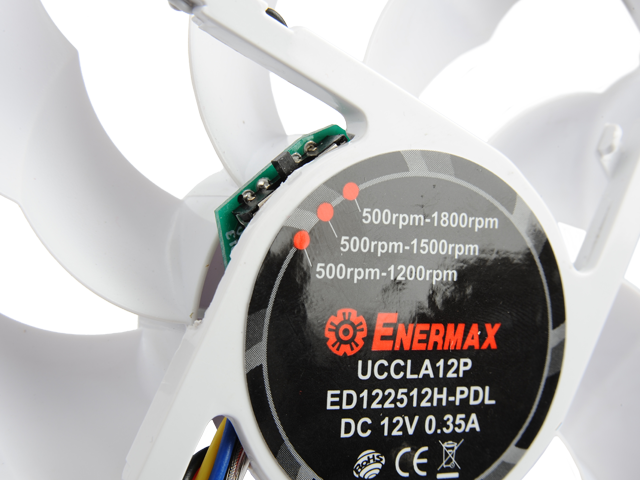

Adjustable Peak Speed (APS) Multi-purpose fan for easy customisation according to the system requirements. With a small switch at the back, the peak speed can be changed in three steps. The fan therefore offers three various RPM ranges: Ultra Silent Mode / Silent Mode / Performance Mode.
PWM Speed Control Flexible fan speed control via mainboard pulse width modulation (PWM) within the selected RPM range.
Twister Bearing Smooth and persistent silent thanks to patented Twister Bearing Technology (min. 100,000 hours MTBF).
Batwing Blades Powerful cooling due to Batwing blades providing up to 20% higher air flow.
HALO Frame Punched HALO frame for additional fresh air supply and effective reduction of air turbulences.
Bright Colours Switchable white LED light in flash design.

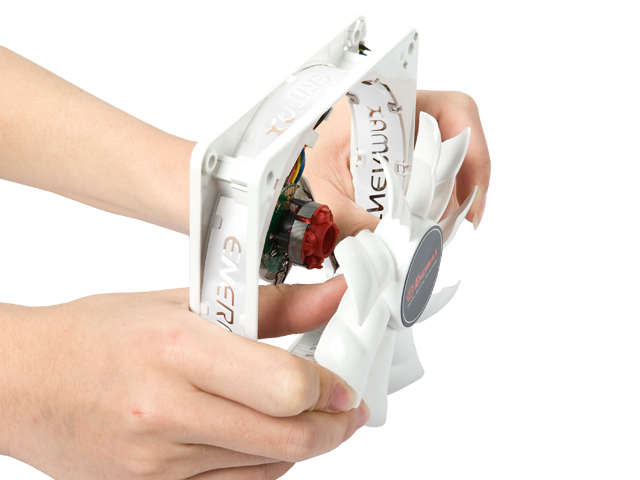

Click Mechanism Detachable blades for easy cleaning from dust.
Warranty 2 years
Included in Delivery

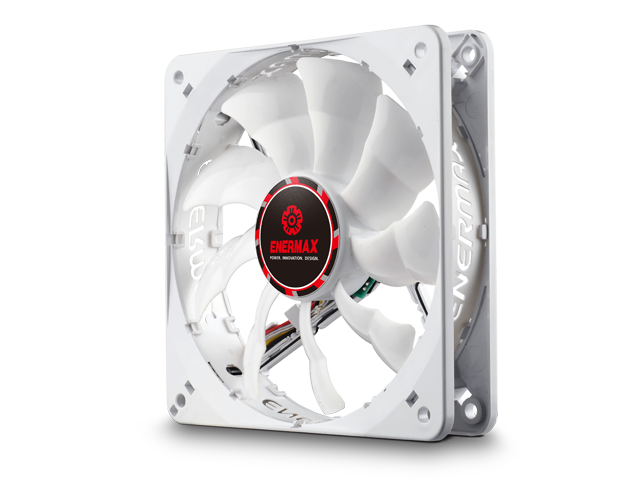

12cm Cluster Advance fan
4 shock-proof isolator-mounts
3-pin to 4-pin molex adaptor
Specifications
Dimensions (mm)
W120 x H120 x D25
Speed Control
PWM control / APS control
Bearing Technology
patented Twister Bearing Technology
Frame
punched HALO frame
Fan Blade Design
Batwing
Number of Blades
9
Ultra Silent Mode
Silent Mode
Performance Mode
Fan Speed (RPM)
500 ~ 1,200 (+/- 10%)
500 ~ 1,500 (+/- 10%)
500 ~ 1,800 (+/- 10%)
Air Flow (m³/h)
45.04 ~ 90.08
45.04 ~ 121.05
45.04 ~ 147.29
Air Flow (CFM)
26.51 ~ 53.02
26.51 ~ 71.25
26.51 ~ 86.69
Static Pressure (mm-H2O)
0.483 ~ 1.073
0.483 ~ 1.676
0.483 ~ 2.414
Noise Level (dB(A))
8 - 14
8 - 18
8 - 21
Input Power (W)
2.16
3.0
4.2
Input Current (A)
0.18
0.25
0.35
Rated Voltage (V)
12
12
12
MTBF
100,000 hours
Connector
4 pin PWM
Accessory
4-pin adaptor, 4x isolator mounts
Dealer Information
UCCLA12P
EAN Code
4713157732569
Master Carton - Net Weight
5,90kg
Master Carton - Gross Weight
10,00kg
Master Carton - Dimensions (mm)
W 495 x H 280 x D 340
Pieces / Master Carton
60
Proved Quality
TWISTER Bearing Technology
Minimal contact area For an effective noise reduction
Rotor with integrated magnet For a frictionless and smooth motion
Self-lubricating bearing sleeve Abrasion protection for a longer lifetime
Magnetized steel ball
Self-lubricating nano bearing
Coils
Flexible magnets inside the rotor
