Versions

Revolution X't
ERX430AWT*
430W
Revolution X't
ERX530AWT*
530W
Revolution X't
ERX630AWT*
630W
Revolution X't
ERX730AWT*
730W
*This product is end of life (EOL). It is possible that single units are still available for the market.

Efficiency

  • 80 PLUS® Gold
    Up to 92 percent efficiency at 230V and 20 to 100 percent load. 80 PLUS® Gold certified.
  • ErP Lot 6 2013 ready!
    Help systems to meet the latest EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry.
    *only in combination with an ErP Lot 6 2013 ready mainboard
  • DC-to-DC Design
    The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efficiency, clean output voltages (low ripple & noise) and a perfect voltage regulation at all loads.

Power

  • Full GPU & CPU Power
    Massive 12V rail to power high-performance and overclocked processors and graphics cards. More than 97 percent of the total power of the PSU can be delivered by the 12V rail only.
  • Full Gaming Power
    Min. two 6+2P (8P) PCI-E connectors to power the latest high-end graphics cards and multi-GPU systems (CrossfireX™ & SLI™).

Connectivity & Compatibility

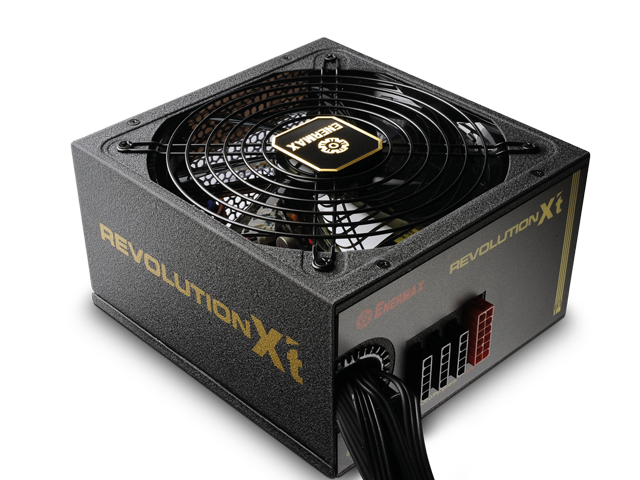

  • Modular & Flat Cables
    Simplify the cable routing and enhance the airflow inside the case.
  • Intel® Haswell™ Ready!
    Supports the C6/C7 energy-saving functions of the latest Intel® CPUs incl. the forthcoming Intel® Haswell™ generation.
  • Intel ATX 12V v2.4
    Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.
  • Worldwide Compatibility
    100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Cooling

  • Air Cooling by Enermax

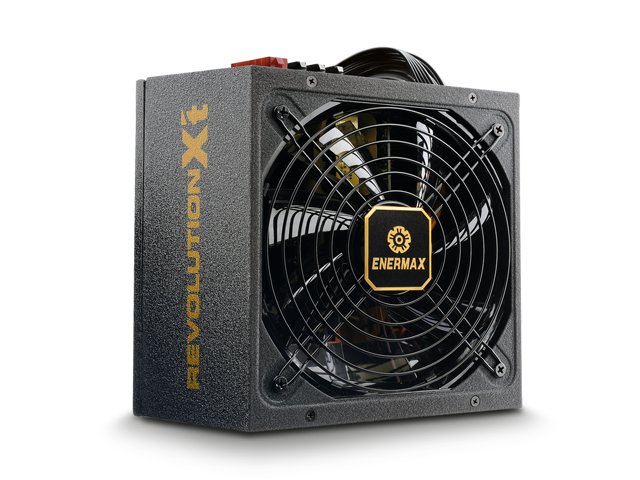

    Integrated 13.9cm fan with patented Twister Bearing Technology ensures efficient and ultra silent cooling and long lifetime.
  • SpeedGuard
    Ultra silent and powerful cooling performance due to an advanced and intelligent fan speed control.
  • HeatGuard
    Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging the system's lifetime.

Quality & Safety

  • High-quality Japanese Main Capacitors
    Highest component standards for maximum stability and durability.
  • Non-Stop 24/7 @ 40°C
    Non-stop industrial class performance at 40°C/104°F ambient.
  • SafeGuard
    Multiple protection circuitry of OVP, OTP, OPP, SCP and SIP.
  • CordGuard
    Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Dimensions & Warranty

  • Compact, Scratch-resistant Housing
    Dimensions: 150 mm x 86 mm x 160 mm (W x H x D)
  • Warranty
    5 years vendor warranty

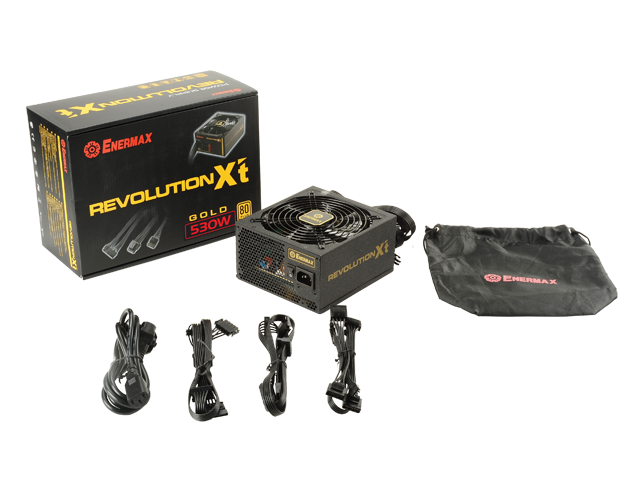

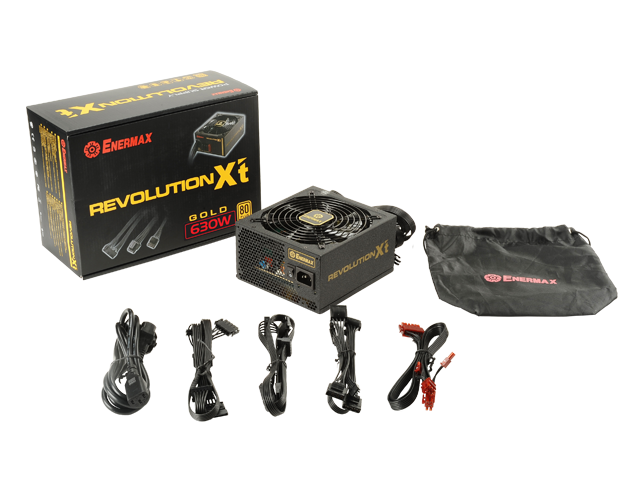

Included in the delivery

  • Revolution X't power supply
  • AC cord
  • CordGuard
  • Modular cables
  • Bag for modular cables
  • Cable ties
  • 4 screws
  • User Manual

Dealer Information

ERX430
AWT
ERX530
AWT
ERX630
AWT
ERX730
AWT
EAN Code
4713157721426 4713157721433 4713157721440 4713157721457
Master Carton - Net Weight
tba tba tba tba
Master Carton - Gross Weight
tba tba tba tba
Master Carton - Dimensions (mm)
D 460 x W 430 x H 322
Pieces / Master Carton
6

© 2014 Advanced Micro Devices, Inc., ATI, The ATI logo, CrossFireX, and Radeon are trademarks of Advanced Micro Devices, Inc.


Specifications

Model / DC Output +3.3V +5V +12V -12V 5Vsb Total Power
ERX430AWT 20A 20A 35A 0.8A 3.0A 430W
100W 420W 9.6W 15W
ERX530AWT 20A 20A 43A 0.8A 3.0A 530W
100W 516W 9.6W 15W
ERX630AWT 25A 25A 51A 0.8A 3.0A 630W
125W 612W 9.6W 15W
ERX730AWT 25A 25A 60A 0.8A 3.0A 730W
125W 720W 9.6W 15W

Efficiency & Noise Level

The Revolution X't series complies with the requirements of the latest EU regulation for computer systems No. 617/2013 (valid from 1st of July 2014).


10% load @ 230V
20% load @ 230V
50% load @ 230V
100% load @ 230V
Eff. dB(A) Eff. dB(A) Eff. dB(A) Eff. PF dB(A)
ERX430AWT 83% 12.8 89%
12.8
92%
15.2 90%
0.98 23.0
ERX530AWT 83%
12.8 89%
12.8 92%
14.4 90%
0.97
22.5
ERX630AWT 85%
12.8 90%
12.8 92%
15.2 90%
0.98
24.1
ERX730AWT 86%
12.8 91%
12.8 93%
16.4 90%
0.98
26.2

* Eff. = Efficiency | PF = Power Factor


Modular Cables

ERX430
AWT
ERX530
AWT
ERX630
AWT
ERX730
AWT
EMC014-F - - 1x 1x
EMC019-F 2x 2x 2x 2x
EMC020-F 1x 1x 1x 1x

Connectors

ERX430
AWT
ERX530
AWT
ERX630
AWT
ERX730
AWT
Native Connectors
EPS12V 24 Pin 1x (55cm)
1x (55cm)
1x (55cm)
1x (55cm)
CPU 4+4 Pin 1x (60cm)
1x (60cm)
1x (60cm)
1x (60m)
PCI-E 2.0 6+2 (8)Pin 2x (45cm) 2x (45cm) 2x (45cm) 2x (45cm)
Modular Connectors
SATA 8x 8x 8x 8x
4P Molex 4x 4x 4x 4x
PCI-E 2.0 6+2 (8)Pin - - 2x 2x
FDD 1x 1x 1x 1x

Advice

The safety current is 6A per single DC wire.

Please be noted that overloading could cause the wire or connector to meltdown and void the warranty. You can avoid this by distributing the load to various cables/connectors.

If you have any questions or doubts how to connect your power supply properly, please do not hesitate to get in contact with our technical support.
